Fav 900
Engine / Cylinder head
Reassembling and refitting intake pipe
G
Repair
Fav 900 chassis number 23/3001 and up
15.2.2001
2010 000002
G
a
1/1
Capitel Docu-No.
Index
Date Version
Page

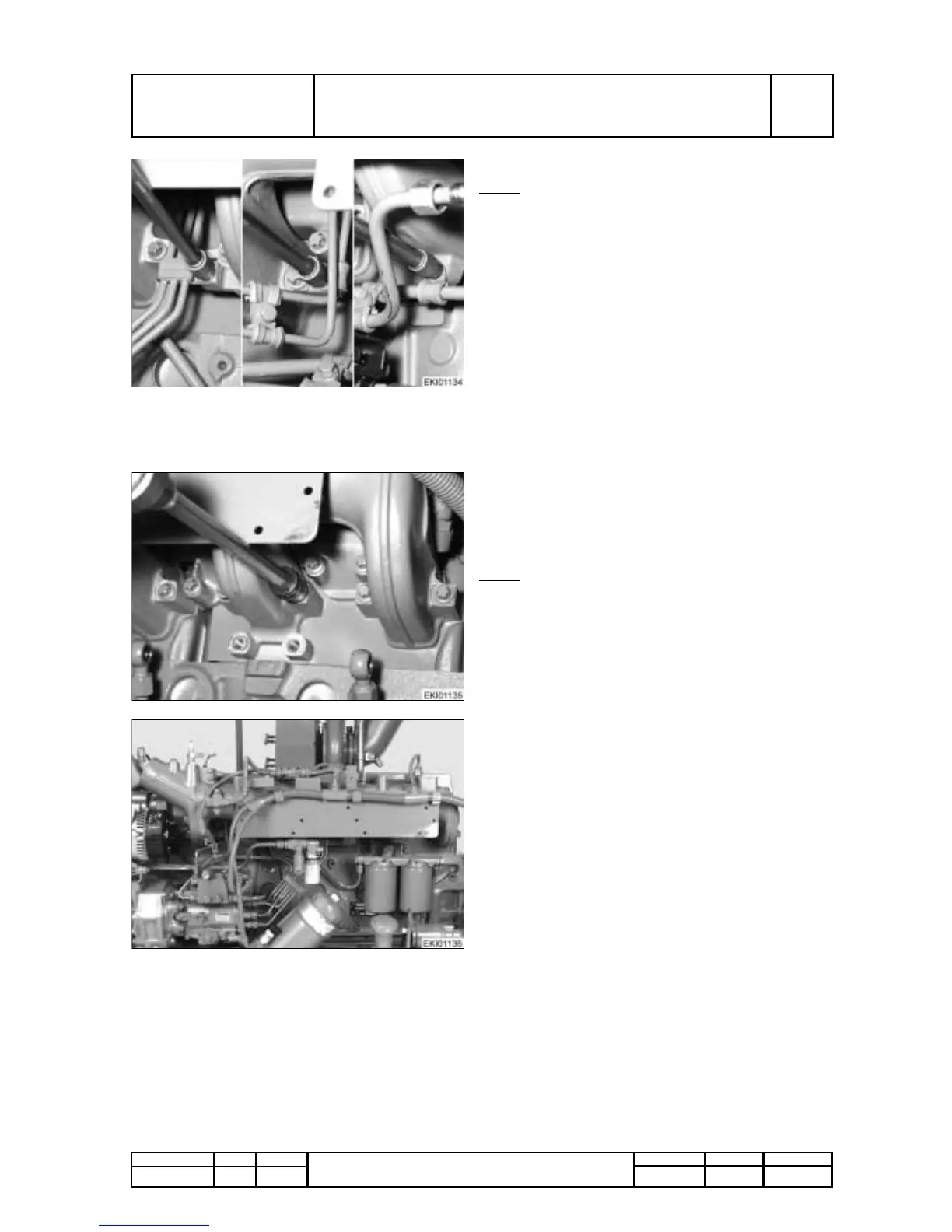

Reassembling and refitting intake pipe
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture
Removing intake pipe
Note:
To avoid engine damage, always ensure clean
conditions when working on intake system.
● Disconnect pressure sensor for intercooler
● Disconnect wiring to flame booster plug, to
solenoid switch ant to the temperature sensors.
● Remove fuel lines to flame booster plug and to
solenoid valve.
● Remove wiring harness.
● Remove fuel filter.
● Remove fuel pre filter with manual lifting pump
● Remove collars of the injection lines and of the
fuel lines wich are fitted onto the intake
manifold.
PMTAB_Picture
Loose and remove intake pipe fixing bolts on the
cylinder head.
Detach intake pipe, remove traces of gasket
residue from sealing faces of intake pipe and
cylinder head.
Note:
Do not allow dirt particles to enter the inlet
ports.
PMTAB_Picture
Refitting intake pipe
Position intake pipe using new gaskets.
Insert fixing bolts.
Watch proper positionning of the gasket.
Tighten to specified torque.
replace all parts wich have been removed before
Purge fuel system.
