FENDT MAN D 0836 LE User Manual

Fav 900
Engine / Cylinder head
Removing and refitting cylinder head
G
Repair
Fav 900 chassis number 23/3001 and up
16.02.2001
2010 000006
G
a
1/4
Capitel Docu-No.
Index
Date Version
Page
Removing and refitting cylinder head
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

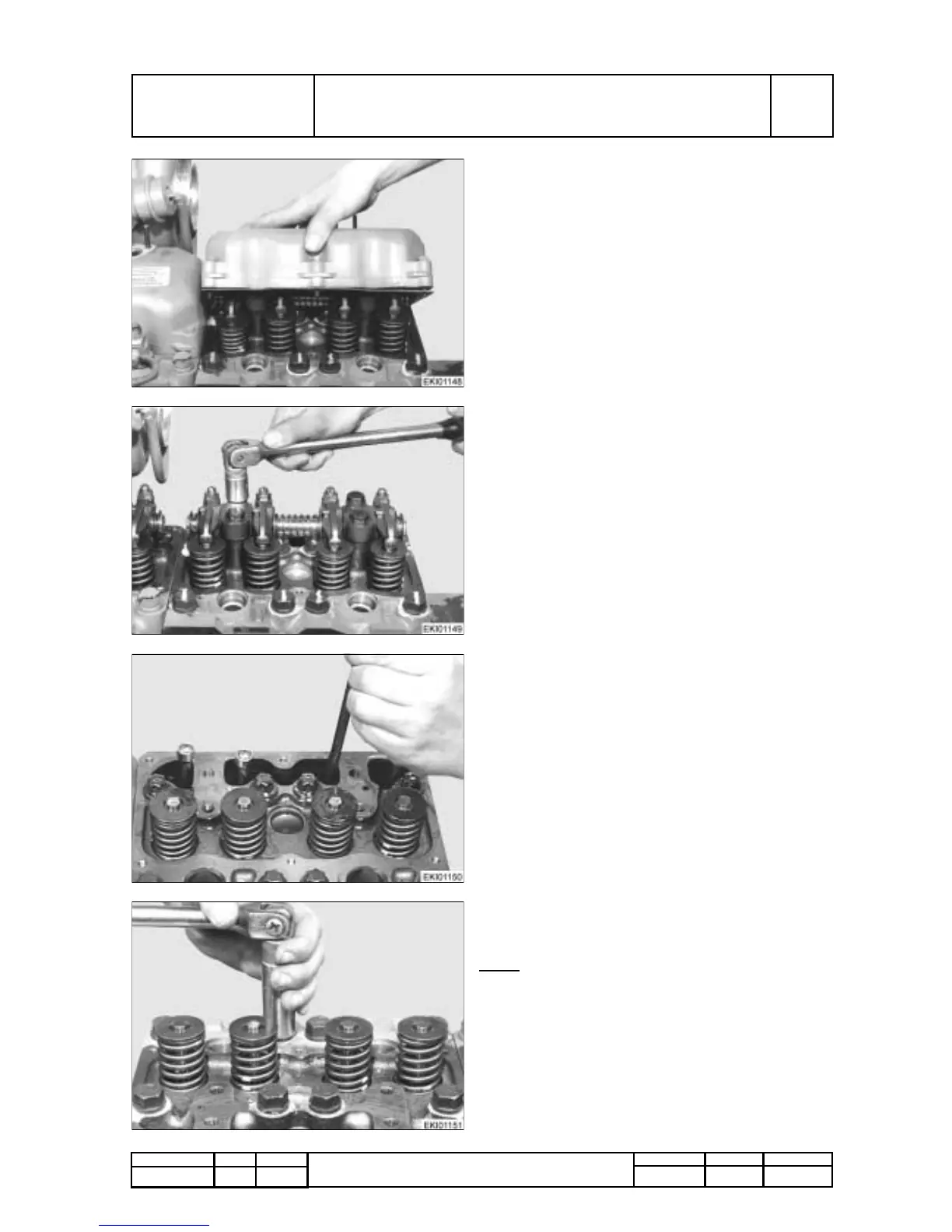

Removing the rocker
Remove cylinder head cover.
PMTAB_Picture
Loosen clamping bolts and remove rocker arm.
Dismantling, overhauling and reassembling rocker
assembly.
Removing the cylinder head
● Drain coolant,
● remove lines from injection nozzles,
● Remove intake pipe,
● Remove exhaust manifold,
● Remove coolant pipe.
PMTAB_Picture
Remove push rods.
PMTAB_Picture
Loosen cylinder head bolts in reverse sequence of
tightening (for tightening torque values refer to
chap 2000 Reg A).
Note:
Cylinder head bolts must not be re-used.
Remove cylinder head and lay down in such way
to prevent damage.
Remove cylinder head gasket.
