FENDT MAN D 0836 LE - Engine Repair: Water Pump

Fav 900
Engine /Cooling system
Removing and refitting water pump
G
Repair
Fav 900 chassis number 23/3001 and up
14.2.2001
2050 000003
G
a
1/4
Capitel Docu-No.
Index
Date Version
Page
Removing and refitting water pump
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

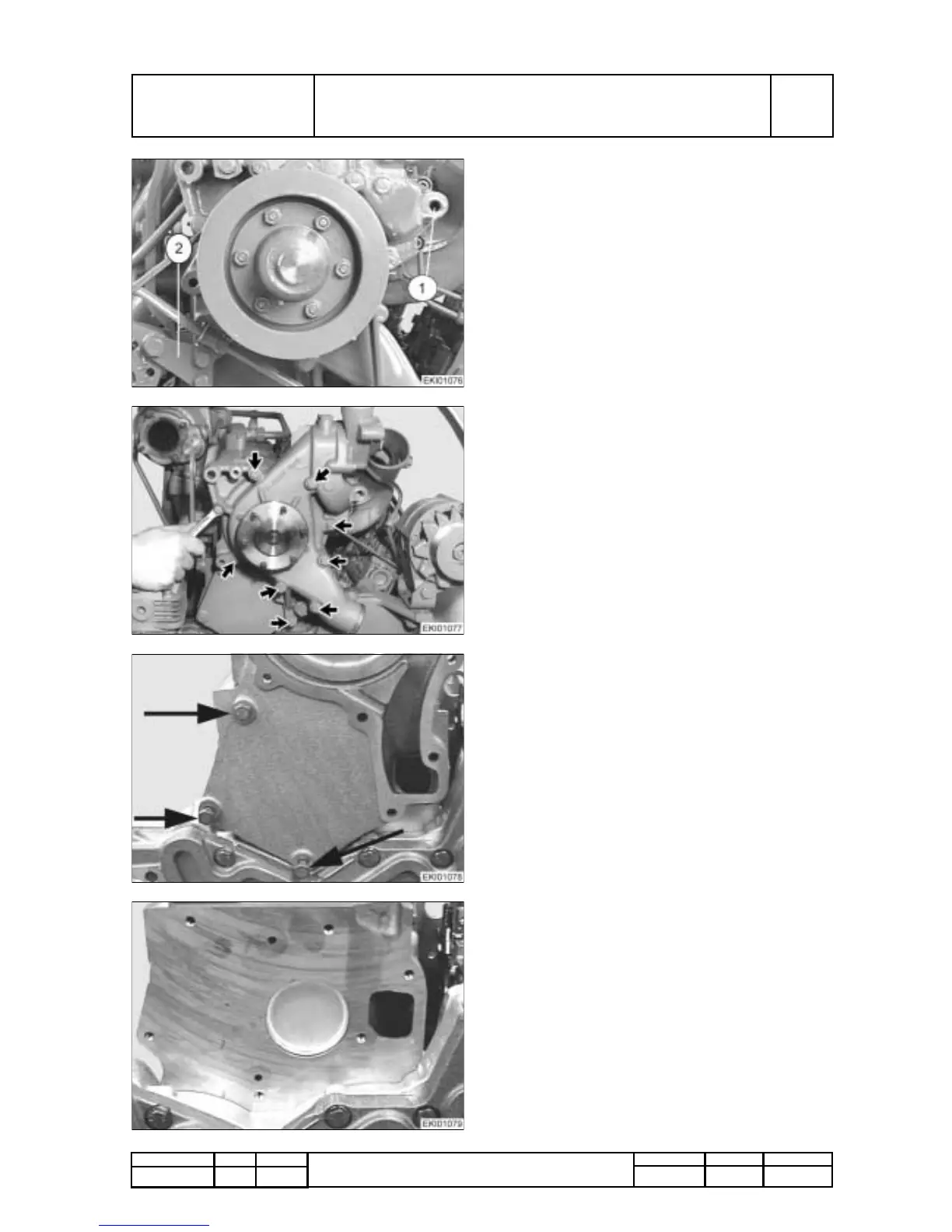

Removing the pump lift section
● Drain coolant.
● Unscrew fan
● Remove feed and drain lines.
● Remove V-belt.
● Remove cooling lines to air compressor
● Remove generator belt tensioner screw (1) top
left
● Remove generator pod (2) on the top left
● Remove hub of Viscosity clutch
PMTAB_Picture
Unsrew and remove pump lift section.
Clean sealing faces of pump lift- and delivery
sections.
PMTAB_Picture
Removing the pump lift section
Remove three screws (arrows) and remove the
pump lift section.
PMTAB_Picture
Clean sealing faces of pump lift section and
engine block.
Refitting the water pump lift section
Install pump lift section with new gasket.
Tighten screws to specified torque.
