Engine /Cooling system
Removing and refitting water pump
G
Repair
Fav 900 chassis number 23/3001 and up
14.2.2001
2050 000003
G
a
2/4
Capitel Docu-No.
Index
Date Version
Page

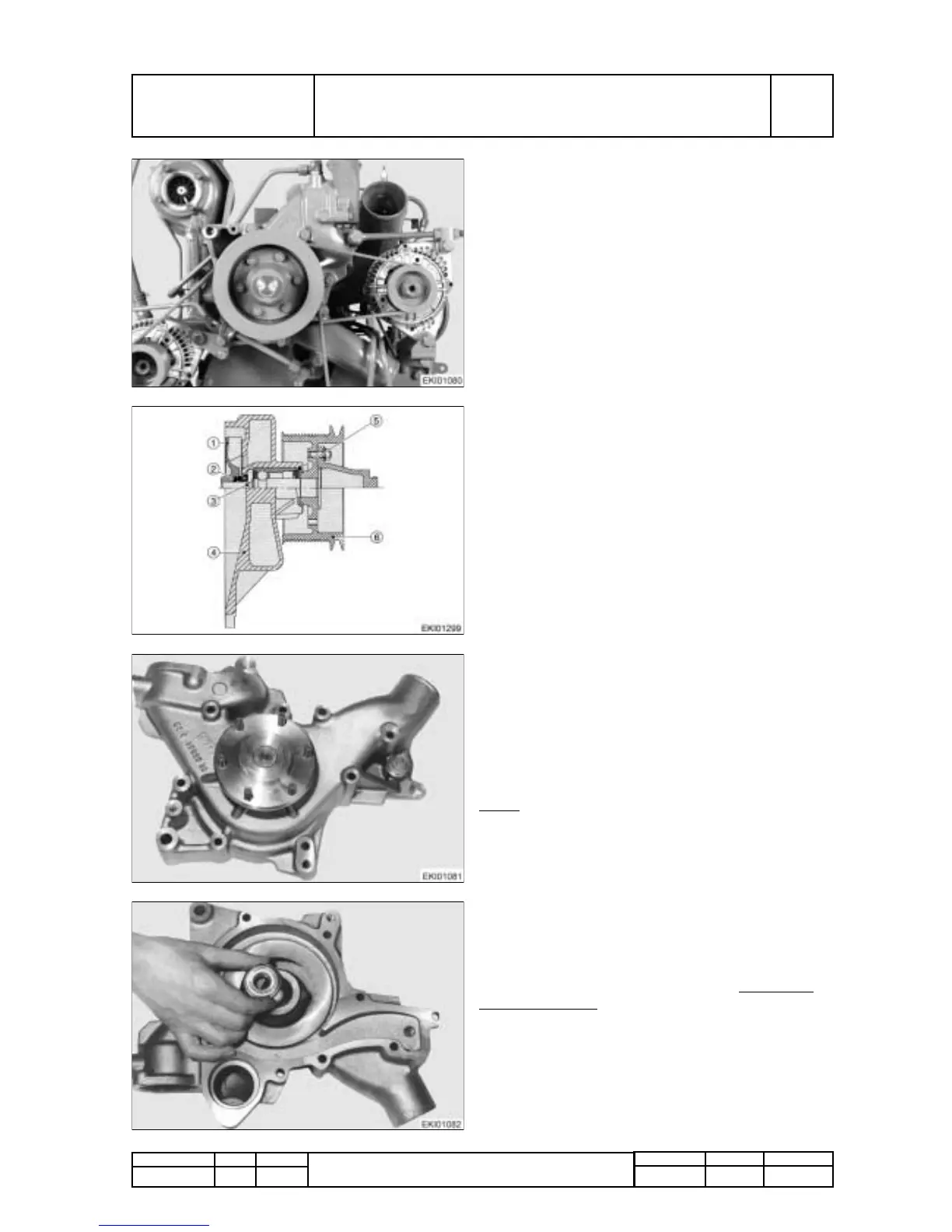

Removing and refitting water pump
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture
Refitting the water pump
Replace seals on connecting pipe.
Install water pump with new gasket.
Tighten fscrews to specified torque.
Put all removed parts back into place
Fill up coolant.
PMTAB_Picture
Overhauling the water pump.
1. Impeller
2. Sliding ring gasket.
3. Water pump bearing.
4. Pump housing.
5. Circlip
6. V-belt pulley
Remove water pump
PMTAB_Picture
Clamp water pump lift section in a vise (use
non-metallic jaws).
Remove V-belt pulley with pulling device.
Remove circlip from pump housing.
Invert water pump and fit into hydraulic press
Using a suitable mandrel (same as bearing shaft)
press out bearing.
Note:
When the bearing is pressed out, the pump
impeller is released.
PMTAB_Picture
Using a suitable mandrel, press out and replace
sliding ring gasket.
Reassambling the water pump
Using pressing bush (special tool) press in a new
sliding ring gasket as far as possible.
See notes
on fitting gasket !
