FENDT MAN D 0836 LE - Page 60

Fav 900
Engine /Cooling system
Removing and refitting water pump
G
Repair
Fav 900 chassis number 23/3001 and up
14.2.2001
2050 000003
G
a
3/4
Capitel Docu-No.
Index
Date Version
Page
Removing and refitting water pump
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
Text-module
PMTAB_Picture

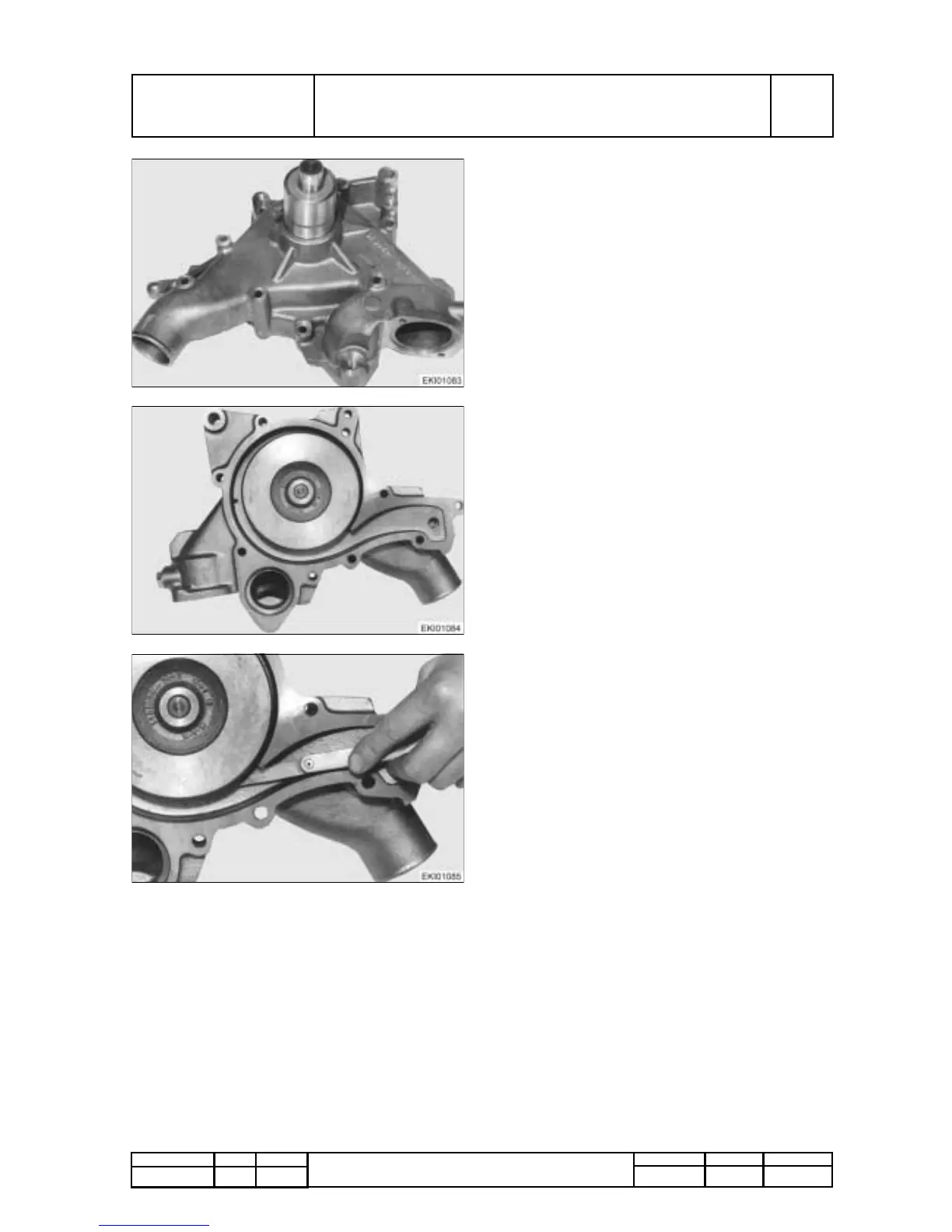

Using a pressinf bush, press bearing into pump
housing until contact is made.
Insert circlip.
Press pulley into shaft flush with the plate
PMTAB_Picture
Invert water pump and let it rest on hub and
bearing shaft.
Fit impeller to bearing shaft.
PMTAB_Picture
Gradually press impeller onto bearing shaft, using
gauge to check for correct clearance.
Rotate impeller and check clearance at several
points.
