FENDT MAN D 0836 LE - Engine Repair: Drive Belts; Checking and Adjusting Power Belt Tension

Fav 900
Engine / Short block
Power - belts
G
Repair
Fav 900 chassis number 23/3001and up
26.02.2001
2210 000016
G
a
1/3
Capitel Docu-No.
Index
Date Version
Page
Power - belts
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule

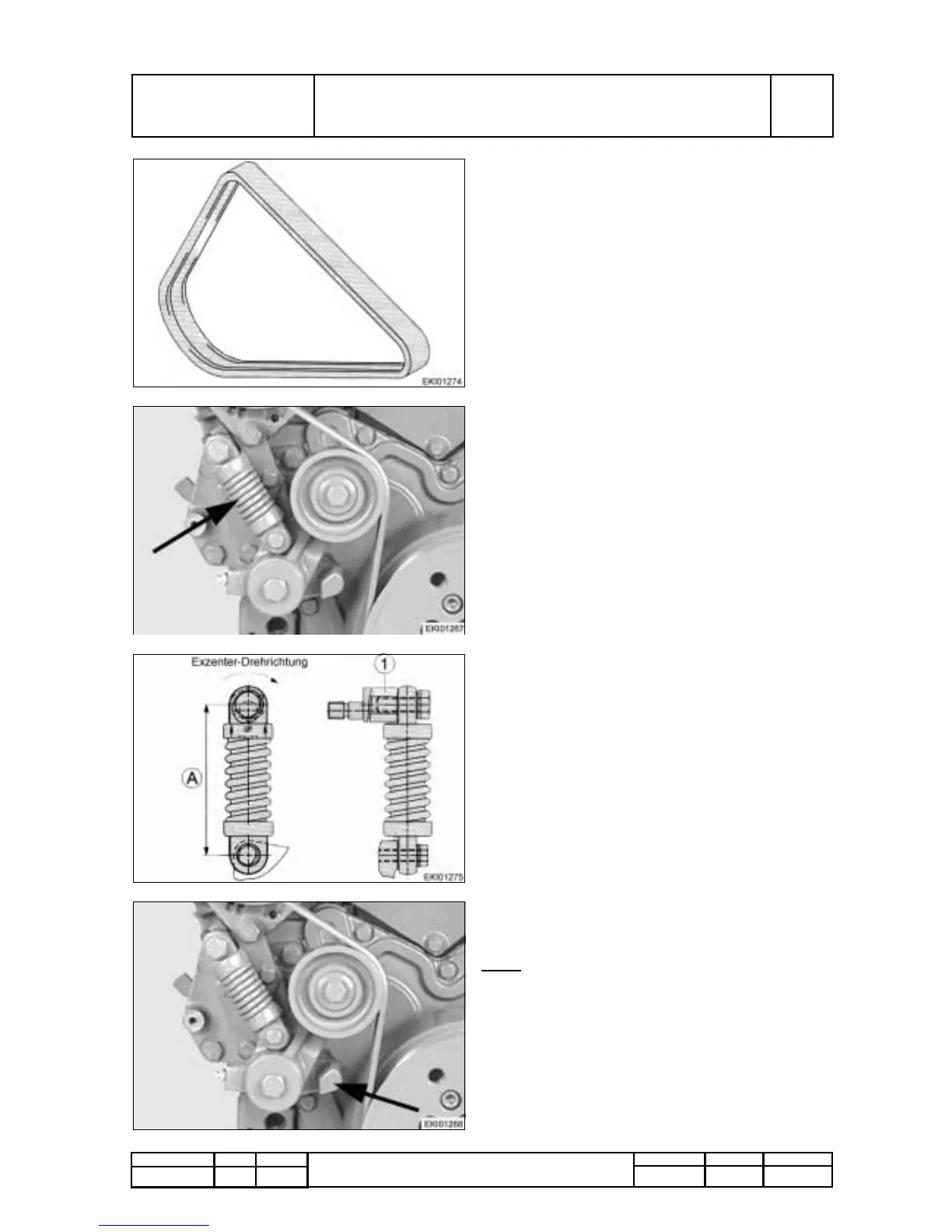

PMTAB_Picture
Generator right
Checking condition
Power belt is maintenance free
● Check belts for cracks, oiling-up, and signs of
overheating and wear.
● Replace damaged belt.
PMTAB_Picture
Checking tension
Tensioning device (arrow) keeps permanently a
constant tension on the power belt.
PMTAB_Picture
Tensioner must be adjusted as follows:
1. New tensioner: distance (A) = 92 ±1 mm
(3.62" ±.04").
2. If distance (A) = 100 mm (3.94"), turn excenter
to right to reach a distance of (A) = 92 ± 1 mm
(3.62" ±.04"), at least that the excenter (1)
allows a reduction of A down to min 92 mm
(3.62").
3. If the distance reaches (A) = 100 mm (3.94")
and the excenter (1) is at the end position, the
power belt must be replaced. Adjust a new
power belt according to Point 1.
PMTAB_Picture
The replacement of the powerbelt becomes
necessary if the tensionning lever comes to rest
on console (Arrow).
Note:
Distance of 100 mm (3.94") may cause a total
failure of the belt drive because of insufficient
tension.
