Fav 900
Engine / Short block
Power - belts
G
Repair
Fav 900 chassis number 23/3001and up
26.02.2001
2210 000016
G
a
2/3
Capitel Docu-No.
Index
Date Version
Page
Power - belts
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

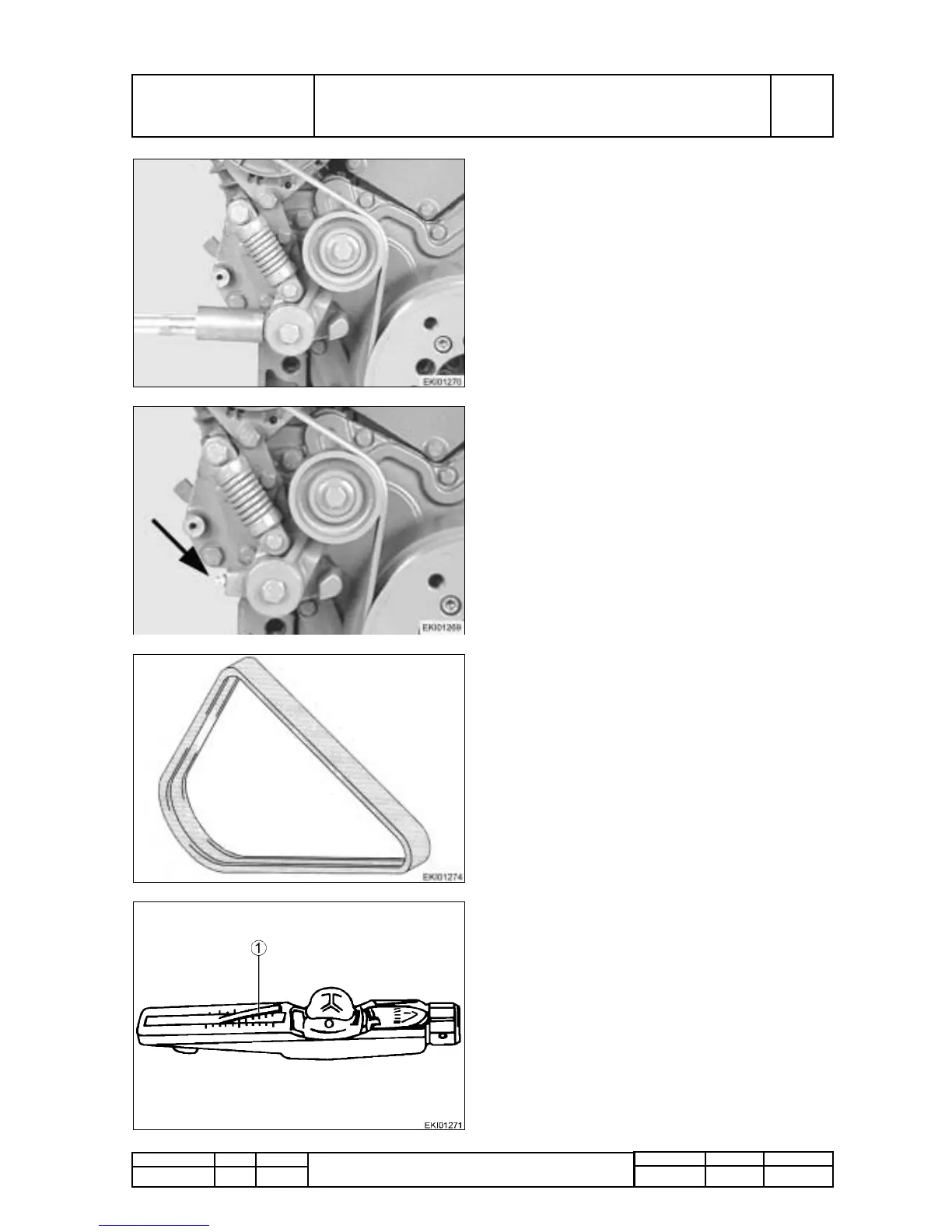

Replacing the powerbelt
● Place adequate tool onto square shaft.
● Release tension from tensioner
● and remove powerbelt from the pulley .
Refitting :
● Place powerbelt onto pulleys of crankshaft ,
generator and coolant pump.
● Set tensioner completely back.
● Place powerbelt onto pulley , release tensioner,
remove special tool.
PMTAB_Picture
Grease the greasing point.
PMTAB_Picture
Alternator left
Checking Powerbelt condition
● Check belts for cracks, oiling-up, and signs of
overheating and wear.
● Replace damaged belt.
PMTAB_Picture
Checking tension
For checking V-belt tension, use V-belt tension
gauge.
● Press indicator arm (1) in the scale.
To Next Page
