Fav 900
Engine / Cylinder head
Re-machining the valve seats
G
Repair
Fav 900 chassis number 23/3001and up
19.02.2001
2010 000011
G
a
1/3
Capitel Docu-No.
Index
Date Version
Page
Re-machining the valve seats
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

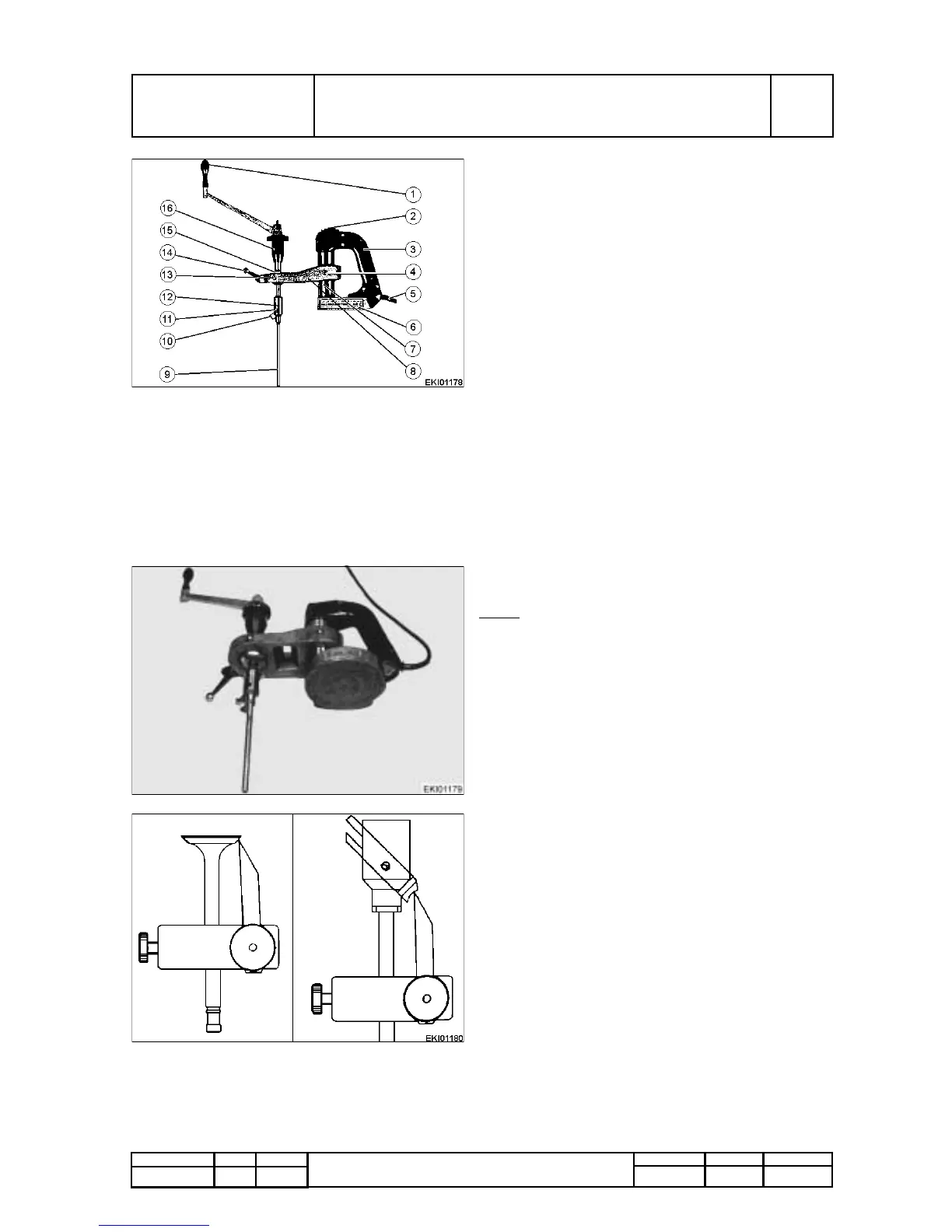

Re-machining the valve seat
(with Mira-Precision tvalve seat re-machining tool)
1. Crank
2. Rocker switch
3. Hand grip
4. Lubricating nipple
5. Mains supply
6. Solenoid valve with coil
7. Guide tube
8. Swivel arm
9. Guide mandrel
10.Cutter
11.Allen screw
12.Chuck
13.Lubricating nipple
14.Clamping lever
15.Guide ball
16.Thrust nut with mm-dial
PMTAB_Picture
Select suitable guide mandrel, insert with
open-end wrench (SW 12) and tighten.
Note:
For maximum precision, the guide mandrel
must have a perfect fit.
Select cutting with appropriate valve face with a
seat angle and insert.
PMTAB_Picture
Adjust cutter with setting gauge and secure with
Allen screw.
Using a guide mandrel insert tool into valve guide.
