Removing and refitting coolant pipe
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

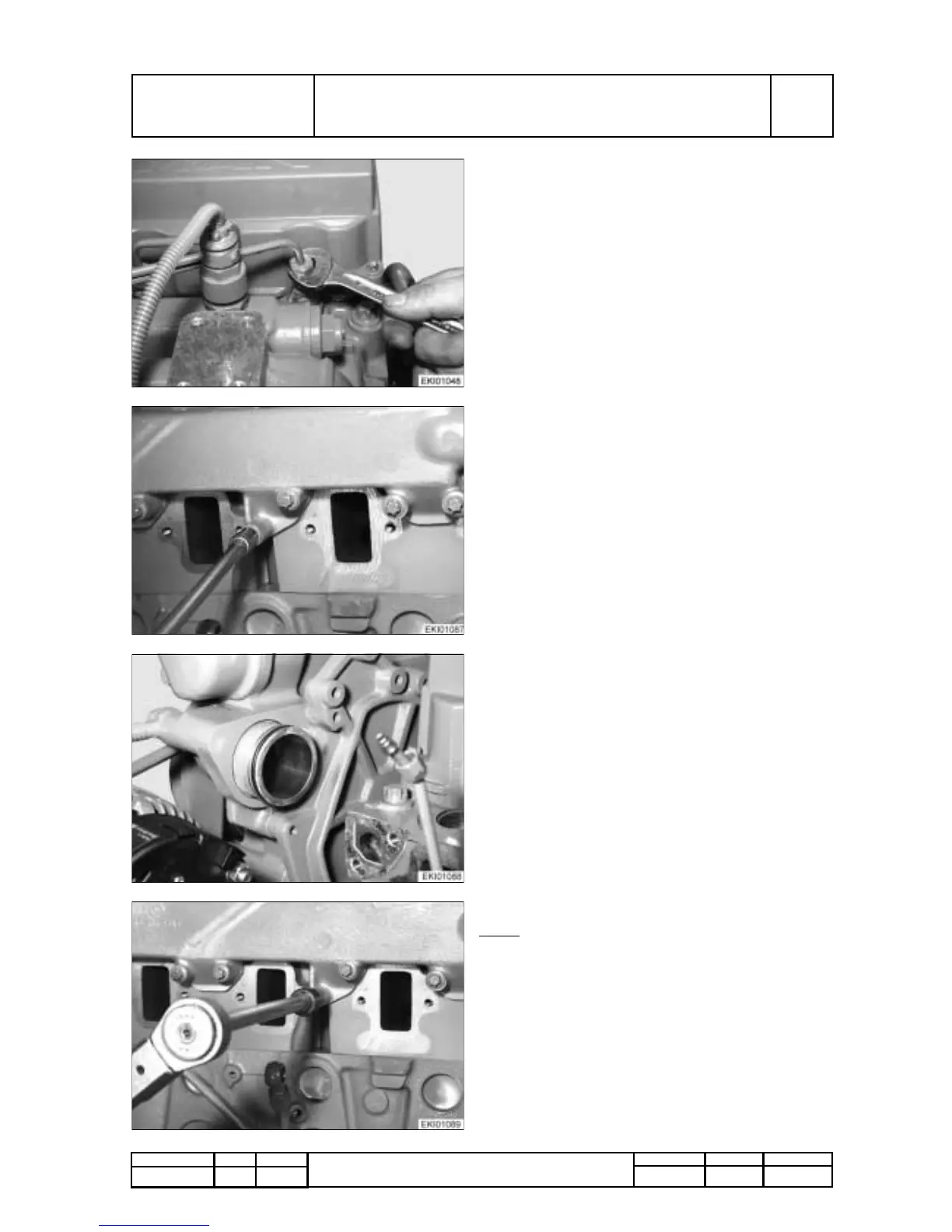

Removing the coolant pipe
Drain coolant while engine is cold. Use a clean
pan with sufficient capacity
● Remove injection lines
● Remove intake pipe
● Disconnect temperature sensor
PMTAB_Picture
Unscrew and remove coolant pipe.
Remove gasket and clean all sealing faces.
PMTAB_Picture
Refitting the coolant pipe
Replace O-Rings of connecting pipe. Fit coolant
pipe using new gaskets.
PMTAB_Picture
Insert screws and tighten to specified torque.
Note:
Insert the longer screws into the brackets for
injectors.
● Reconnect temperature sensor,
● Refit intake pipe.
● Refit injection lines.
● Fill up with coolant.
