Removing and refitting exhaust manifold
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

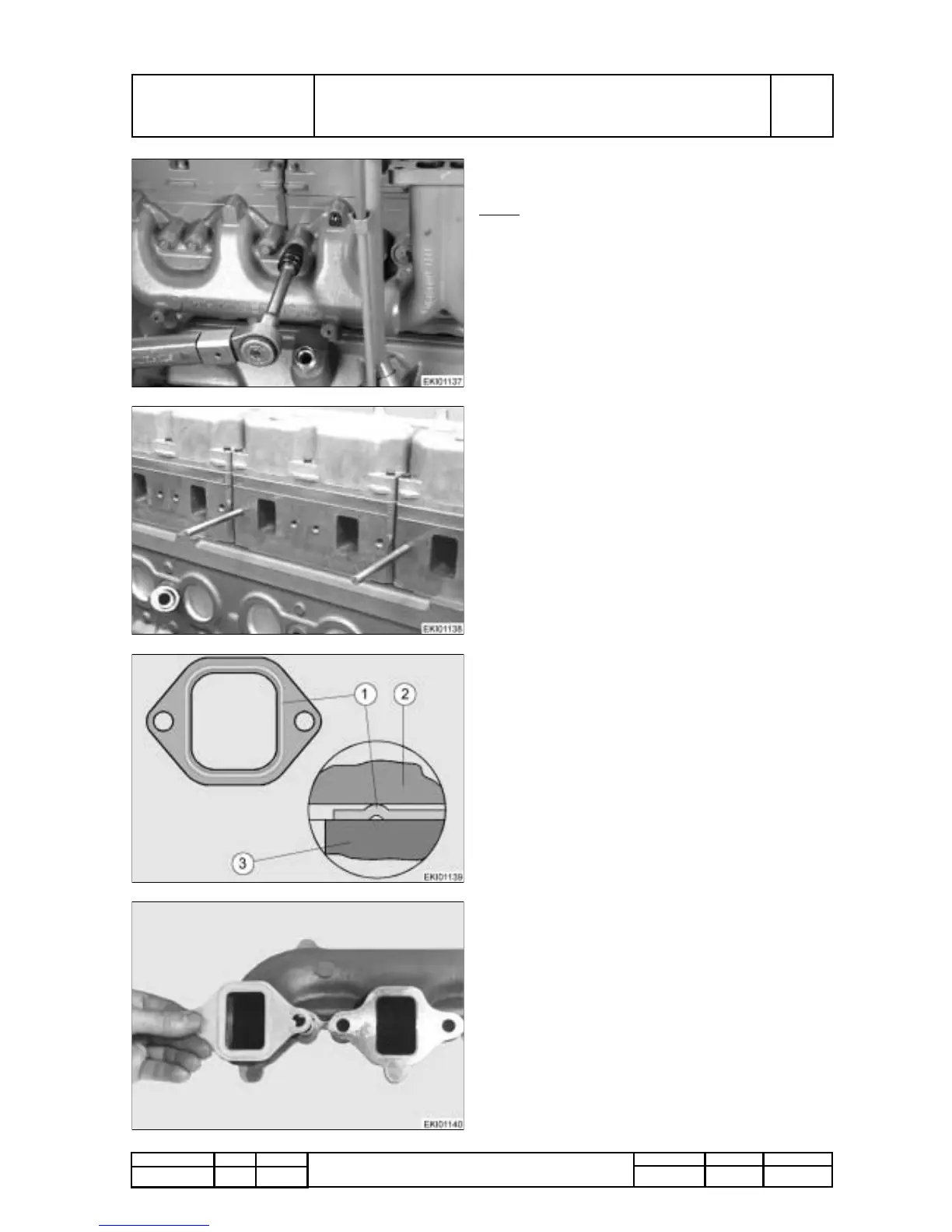

Removing the exhaust manifold
Remove turbocharger.
Note:
Protect exhaust port on turbocharger from
contamination.
Unscrew and remove nuts from exhaust manifold.
PMTAB_Picture
Guidance pins (visible on photograph) may be
used.
Remove manifold.
PMTAB_Picture
Refitting the exhaust manifold
Clean sealing faces of both, cylinder head and
manifold.
Bumped side (1) of gasket facing the cylinderhead
(2), depression facing the manifold (3).
PMTAB_Picture
Insert screws and tighten to adequate torque.
Refit the turbocharger.
