FENDT MAN D 0836 LE - View of Engine D 0836 LE 501

Fav 900
Engine / Generalities
View of engine D 0836 LE 501
D
Component Location
Fav 900 chassis number 23/3001and up
09/03/2001
2000 000003
D
a
1/1
Capitel Docu-No.
Index
Date Version
Page
View of engine D 0836 LE 501
PM-Picturemodule
Text-module
PMTAB_Picture

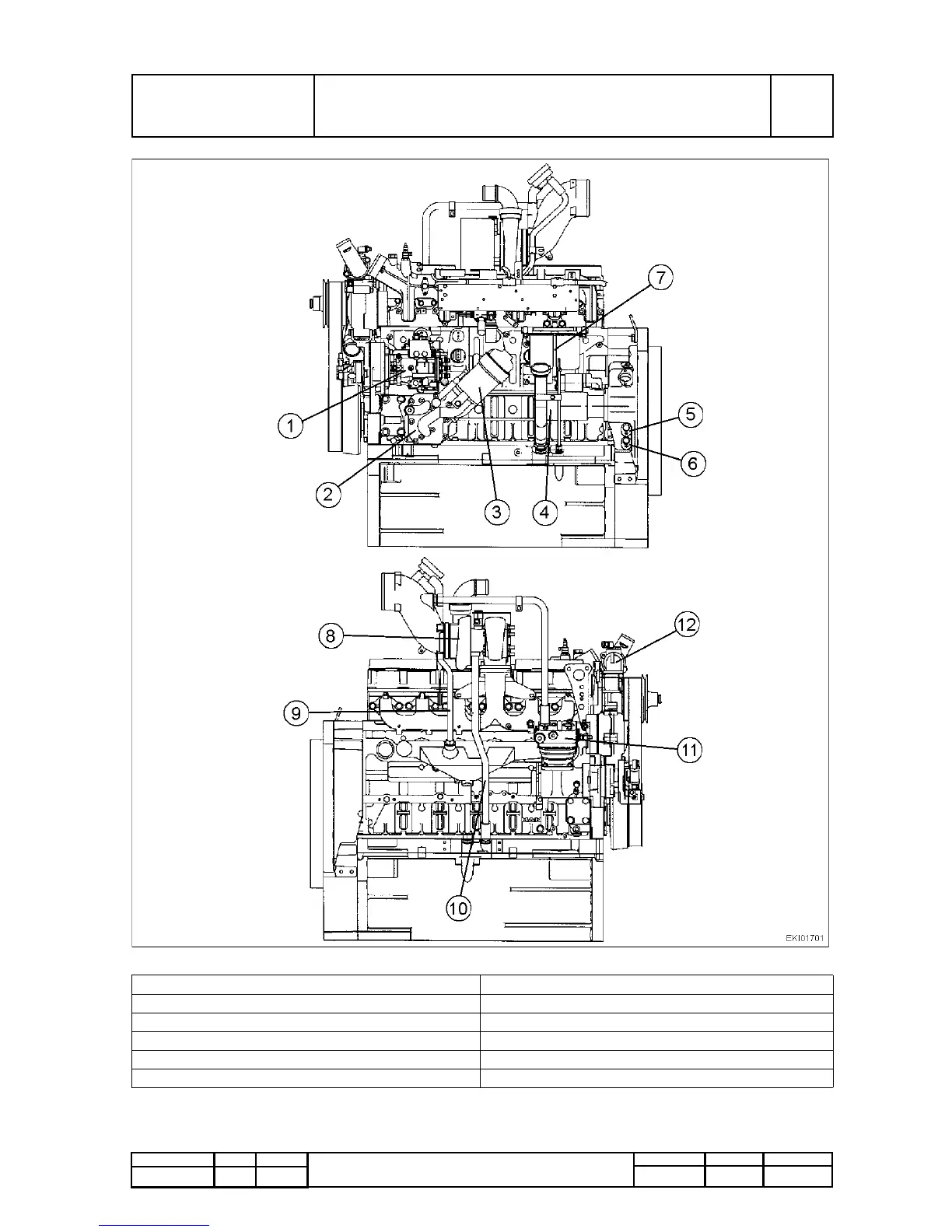

1 Fuel injection pump (VP44) 7 Fuel filters
2 Lubricant cooler 8 Turbocharger
3 Lubricant filter 9 Lubrication oil turbocharger (pressure)
4 Oil filling socket, Oil level indicator 10 Lubrication oil return from turbocharger
5 B10 - Sensor, Engine 1 11 Air compressor
6 B11 - Sensor, Engine 2 12 Thermostat
