FENDT MAN D 0836 LE - Engine Repair: Timing Case; Removing and Refitting Timing Case Cover and Gears

Fav 900
Engine / Short block
Removing and refitting the timing case.
G
Repair
Fav 900 chassis number 23/3001and up
20.2.2001
2210 000006
G
a
1/4
Capitel Docu-No.
Index
Date Version
Page
Removing and refitting the timing case.
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

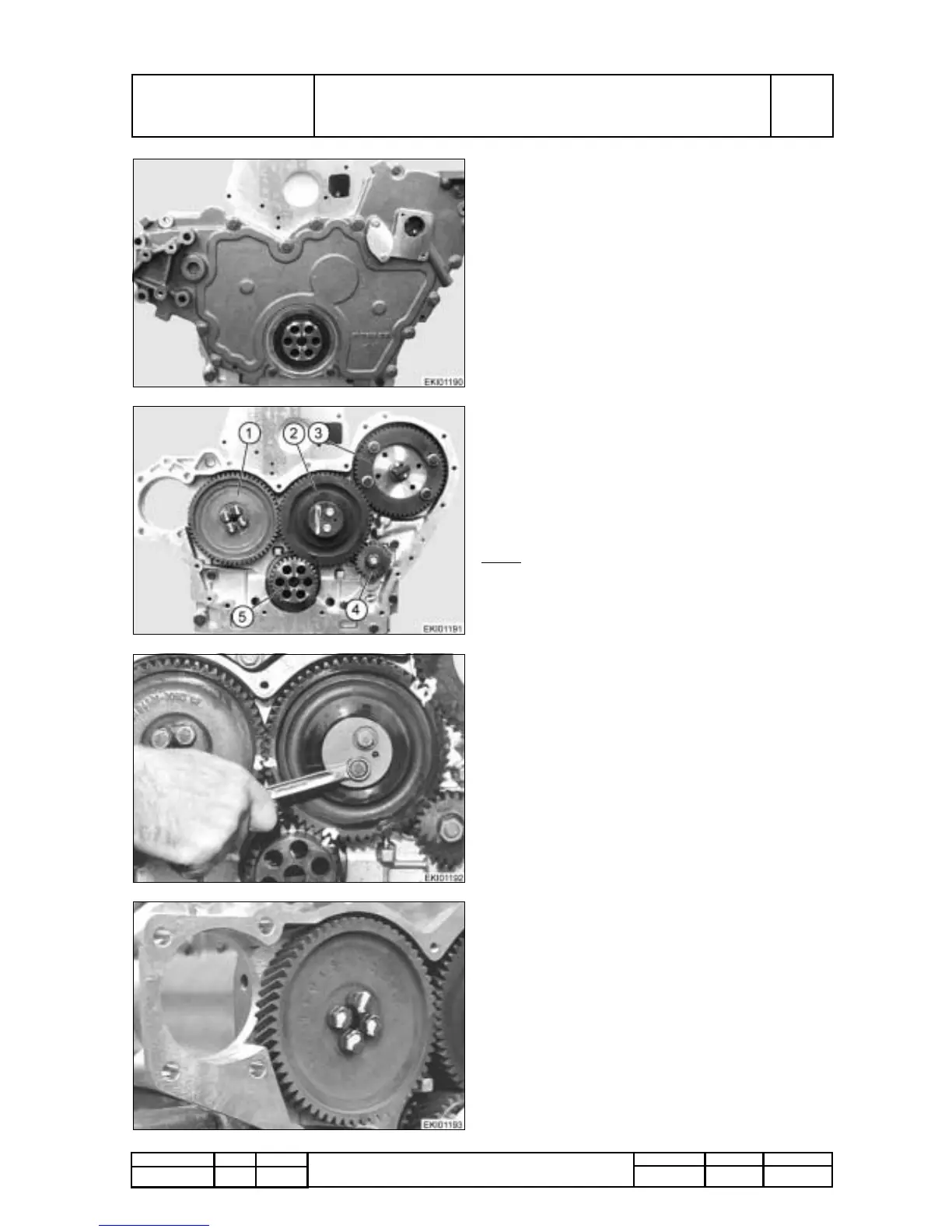

Removing case cover
Remove fan frame, vibration damper and air
compressor.
Remove screws of timing case cover.
Remove cover.
PMTAB_Picture
1. Crankshaft timing gear
(observe "2-2-2" on intermediate gear)
2. Intermediate gear
3. Injection pump drive gear.
4. Oil pump drive gear.
5. Crankshaft timing gear
(observe "*-*-1" on intermediate gear).
Note:
For easy reassembly mark timing gear
appropriately before removing.
PMTAB_Picture
Removing intermediate gear
Remove injection pump
Unscrew hex screw, remove thrust washer and
pull off intermediate gear by hand.
PMTAB_Picture
Removing crankshaft timing gear
● Lock up gear with a large screw-driver and
remove screws. Avoid damage to the tooth
flanks.
● Remove crankshaft timing gear.
