FENDT MAN D 0836 LE - Engine Repair: Valve Train Components

Fav 900
Engine / Cylinder head
Dismantling and reassembling the rocker arm assembly
G
Repair
Fav 900 chassis number 23/3001 and up
19.02.2001
2010 000007
G
a
1/2
Capitel Docu-No.
Index
Date Version
Page
Dismantling and reassembling the rocker arm assembly
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

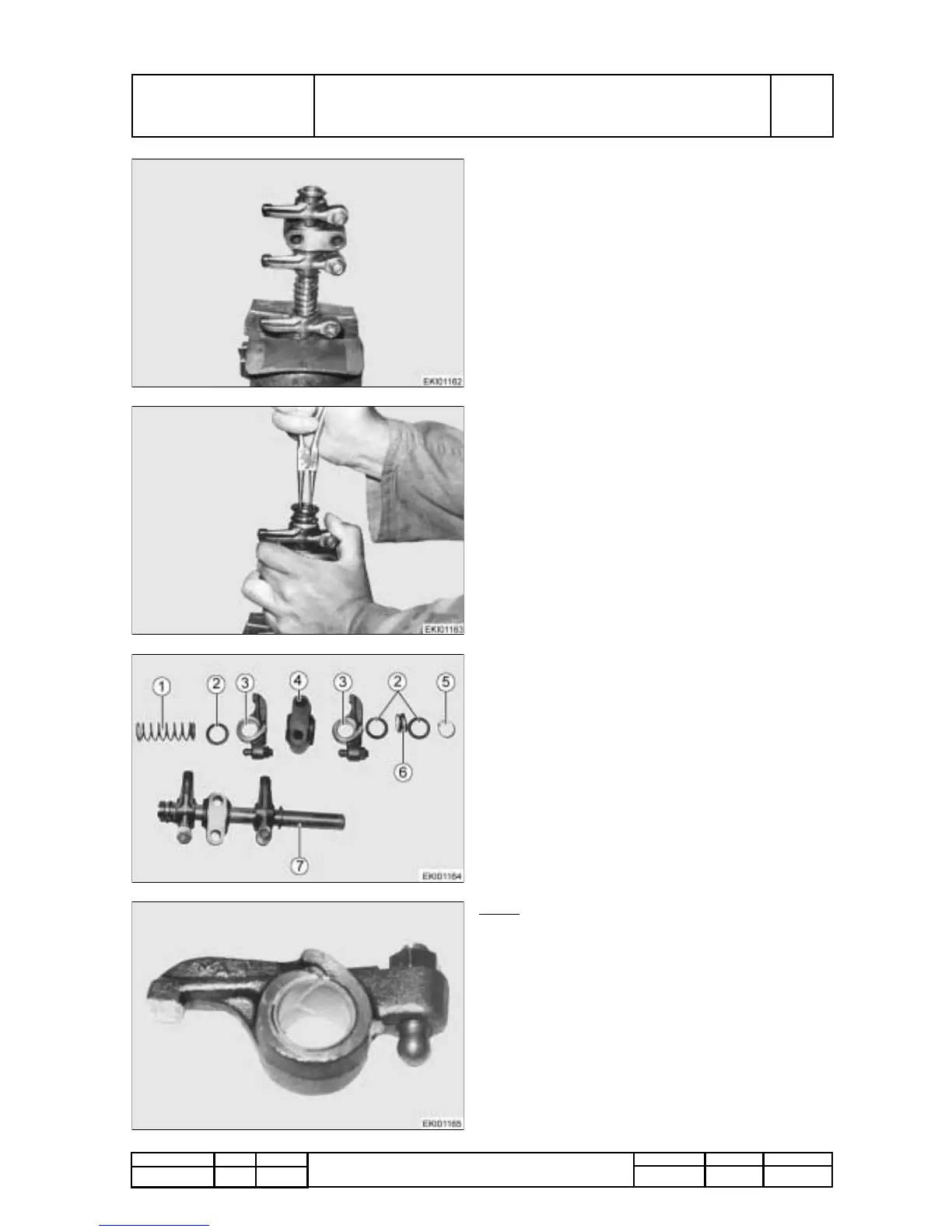

Dismantling the rocker arm assembly
Remove rocker arm assembly
Clamp rocker bearing bracket in a vise (use
non-metallic jaws).
PMTAB_Picture
Remove circlip.
PMTAB_Picture
Remove parts separately from the rocker shaft.
1 Central spring
2 Stop washer
3 Rocker arm
4 Rocker bearing bracket
5 Circlip
6 Outside spring
7 Rocker shaft
PMTAB_Picture
Note:
If the rocker bearing bushes need replacing,
use new or reconditioned ready-to-install
rocker arms.
