FENDT MAN D 0836 LE - Final Cylinder Head Assembly Steps

Fav 900
Engine / Cylinder head
Removing and refitting cylinder head
G
Repair
Fav 900 chassis number 23/3001 and up
16.02.2001
2010 000006
G
a
4/4
Capitel Docu-No.
Index
Date Version
Page
Removing and refitting cylinder head
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

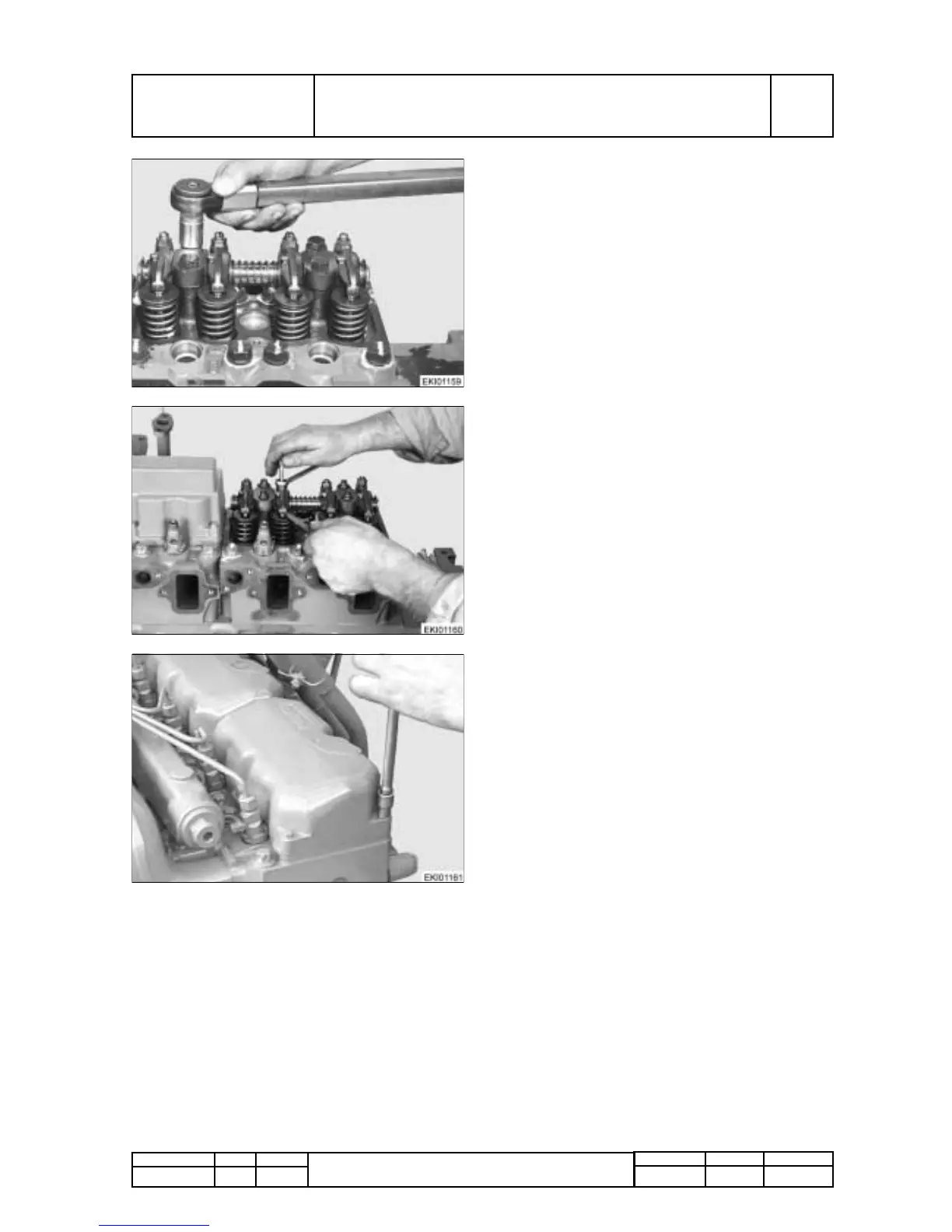

Tighten bolts slightly and align rocker arms with
valves.
Subsequently tighten bolts to specified torque.
PMTAB_Picture
● Set valve clearance, chap 2010 Reg F
● Refit coolant pipe,
● Refit exhaust manifold,
● Refit intake pipe,
● Refit the injectors lines.
PMTAB_Picture
Refit cylinder head cover with a dry new gasket.
Insert screws and tighten.
Fill up with coolant.
Tighten cylinder head bolts once more.
