Fav 900
Engine / Cylinder head
Removing and refitting cylinder head
G
Repair
Fav 900 chassis number 23/3001 and up
16.02.2001
2010 000006
G
a
3/4
Capitel Docu-No.
Index
Date Version
Page
Removing and refitting cylinder head
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

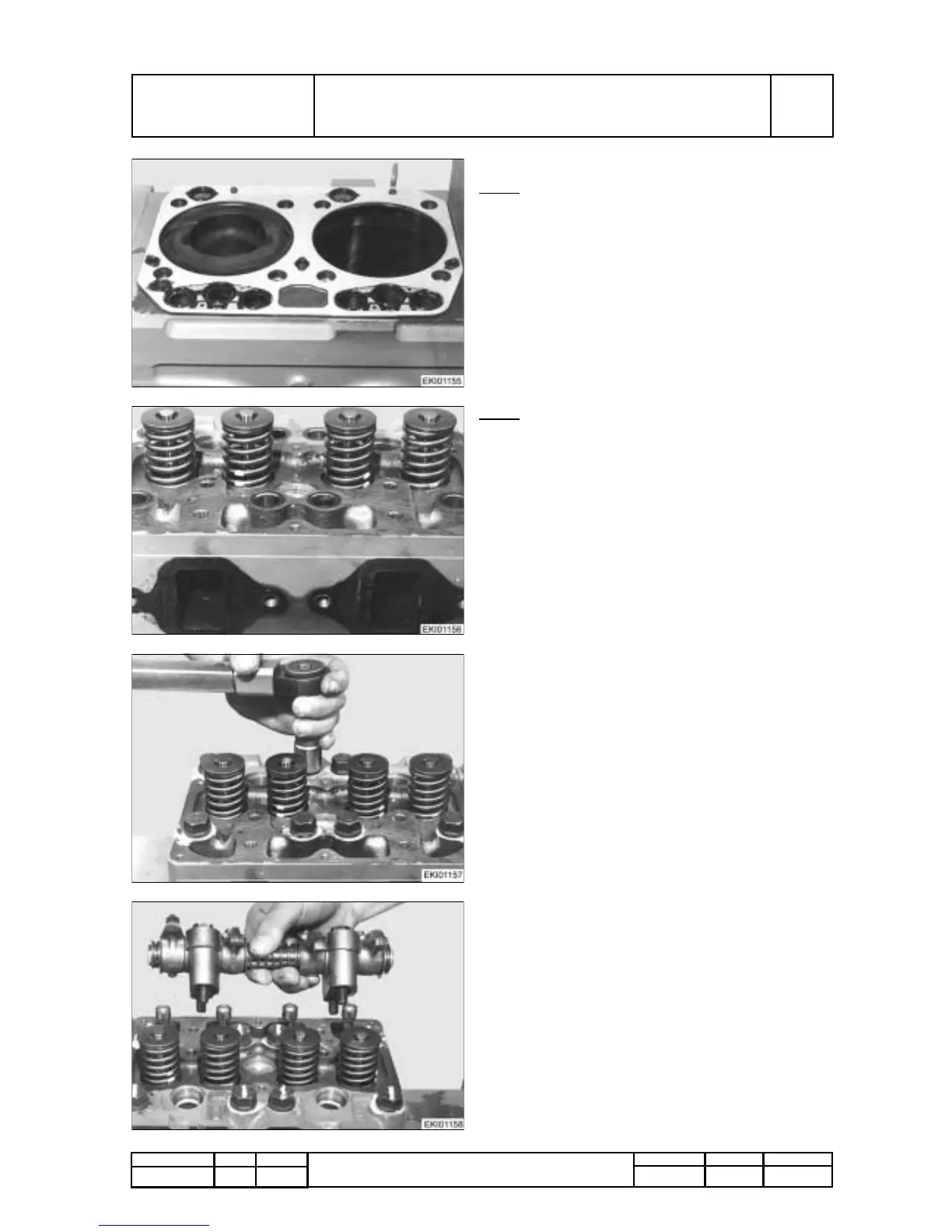

Refitting the cylinder head
Note:
Cylinder head gasket must always be replaced.
Install a dry new gasket carefully positioned
according to the hole pattern . Fit cylinder head.
PMTAB_Picture
Note:
To prevent distortion between cylinder heads
and manifolds, we recommend the following
steps :
● Refit cylinder heads using guidance bolts.
● Oil the new cylinder head bolts and their rest
surface with "Optimoly Withe T" paste.
● Hand tighten new cylinder head bolts.
● Mount rectified ruler (Special tool) onto the
exhaust side. Tighten screws at 20 Nm. If no
ruler is available, fit exhaust pipe and tighten at
20 Nm.
PMTAB_Picture
● Tighten progressively cylinder head bolts in the
indicated sequence at the prescribed torque.
● Remove the rectified ruler.
PMTAB_Picture
Refitting the rocker assembly
Check push rods for distortion and wear in the ball
sockets.
When inserting the push rods ensure correct fit in
the socket of the valve tappets.
Fit rocker arm bracket.
