Fav 900
Engine / Short block
Removing and refitting air compressor
G
Repair
Fav 900 Chassis number 23/3001 and up
23.2.2001
2210 000013
G
a
1/5
Capitel Docu-No.
Index
Date Version
Page

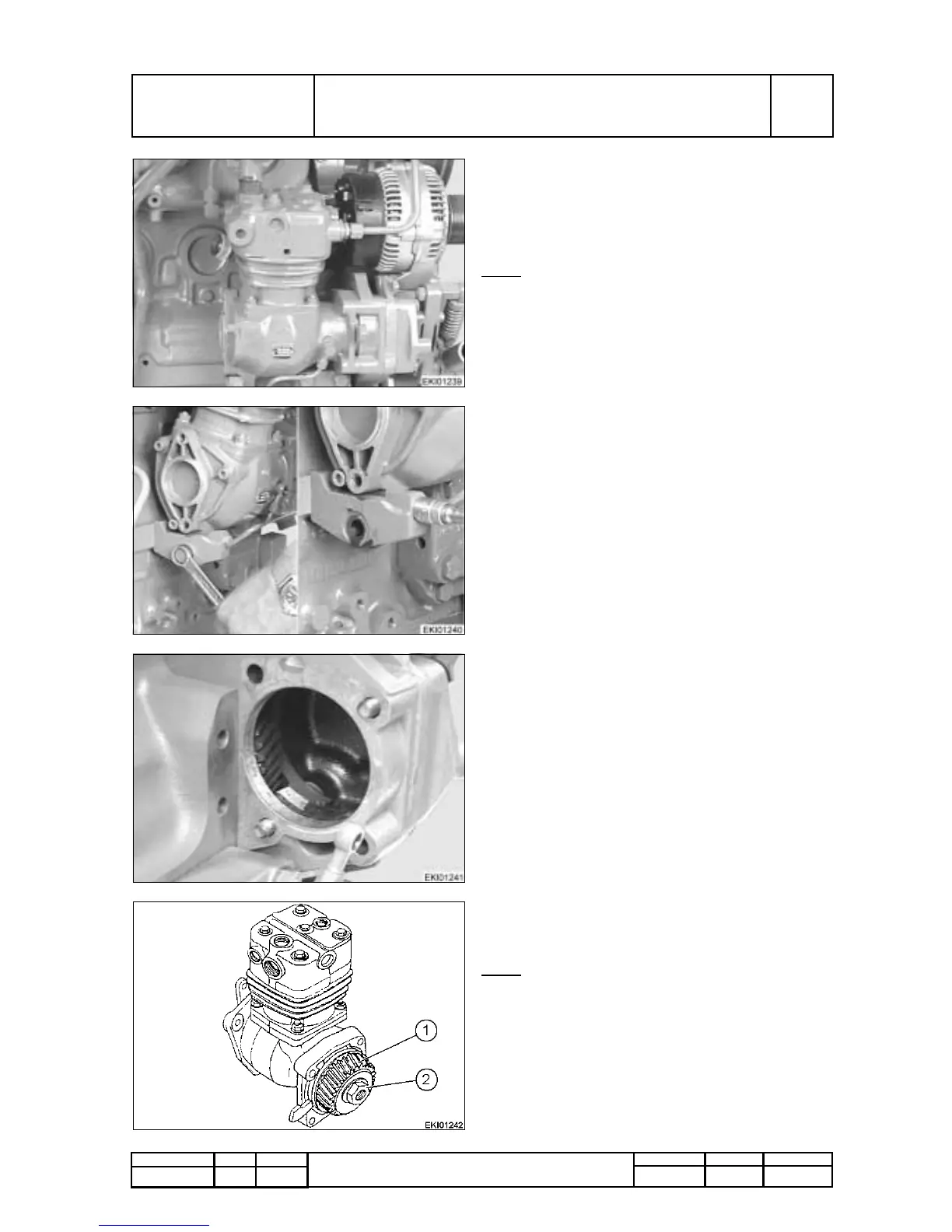

Removing and refitting air compressor
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture
Removing the compressor
Remove hydraulic pump or rear end cover,
Unscrew fan frame support bracket.
Remove oil feed line, air intake line and
compressed-air line.
Note:
For ease of assembly, mark position of
excentric bearing support on timing case.
PMTAB_Picture
To remove air compressor :
PMTAB_Picture
Unscrew the four screws and remove
compressor.
PMTAB_Picture
Replace compressor
To remove compressor drive gear (1) losen nuts
(2).
Note:
Do not swage compressor drive gear into a
vise (Even with soft jaws) for tightening or
loosening the nut of the compressor drive
gear. Risk of damaging drive gear!
For this reason, use mounting plate (3)
(Special Tool), as shown.
