Fav 900
Engine / Short block
Removing and refitting air compressor
G
Repair
Fav 900 Chassis number 23/3001 and up
23.2.2001
2210 000013
G
a
2/5
Capitel Docu-No.
Index
Date Version
Page
Removing and refitting air compressor
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

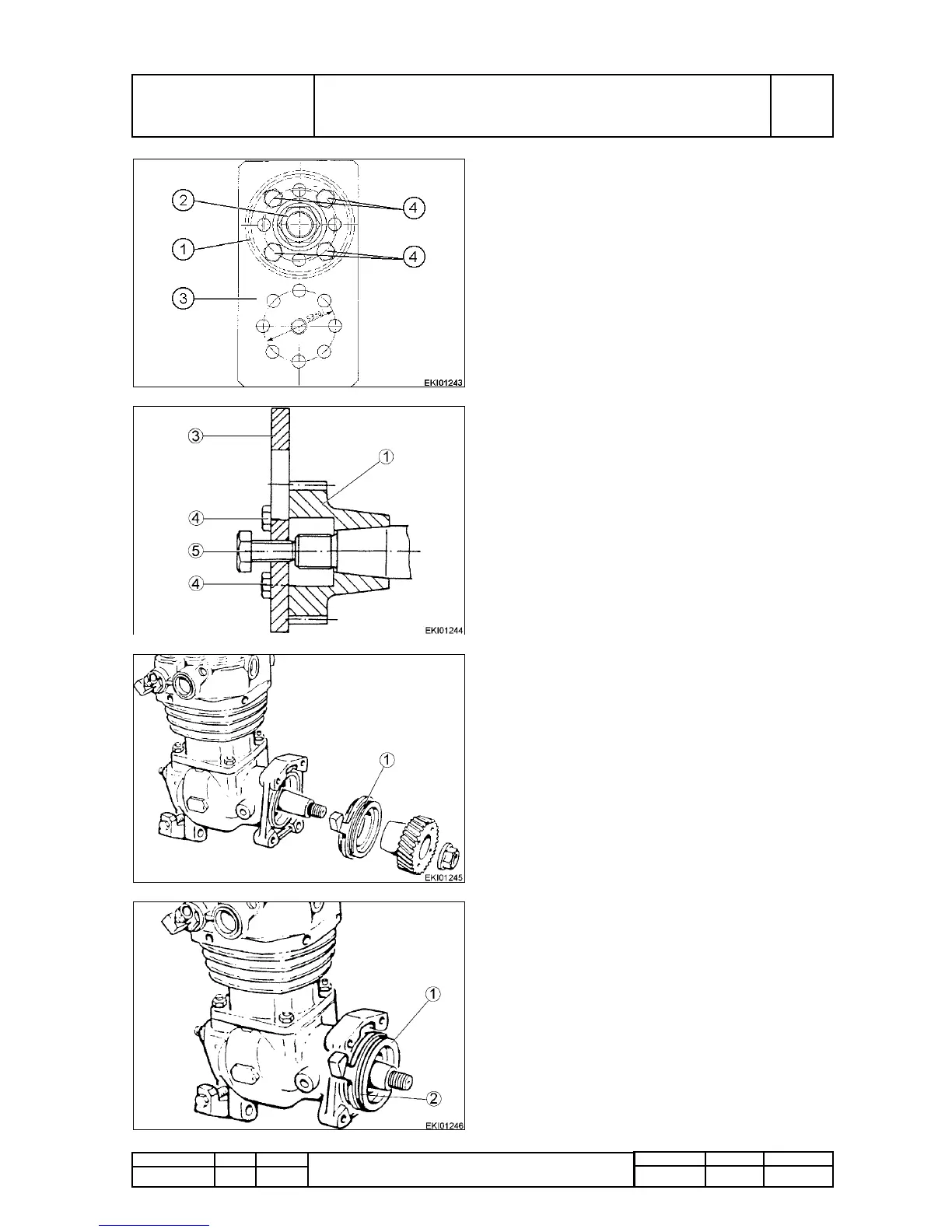

Tighten compressor drive gear (1) with 4 screws
(4) on mounting plate (3) to 30 Nm (22.13 lbf-ft).
Loosen nut (2) .
Press out drive gear, fit mounting plate (3) with 4
screws (4) at the bottom side of the drive gear (2).
PMTAB_Picture
Screw (5) to be screwed into central threaded
hole until drive gear comes loose.
Remove drive gear and mounting plate.
PMTAB_Picture
Release eccentric flange (1) from compressor
body with a soft hammer.
Remove flange from body.
Unscrew connecting fittings of coolant as well as
of compressed air.
PMTAB_Picture
Clean eccentric flange (1) .
Replace and put silicon grease on O-Rings (2) .
Put flange (1) into compressor body.
