Engine / Short block
Replacing crankshaft front seal
G
Repair
Fav 900 chassis number 23/3001 and up
15.2.2001
2210 000002
G
a
1/1
Capitel Docu-No.
Index
Date Version
Page
Replacing crankshaft front seal
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule

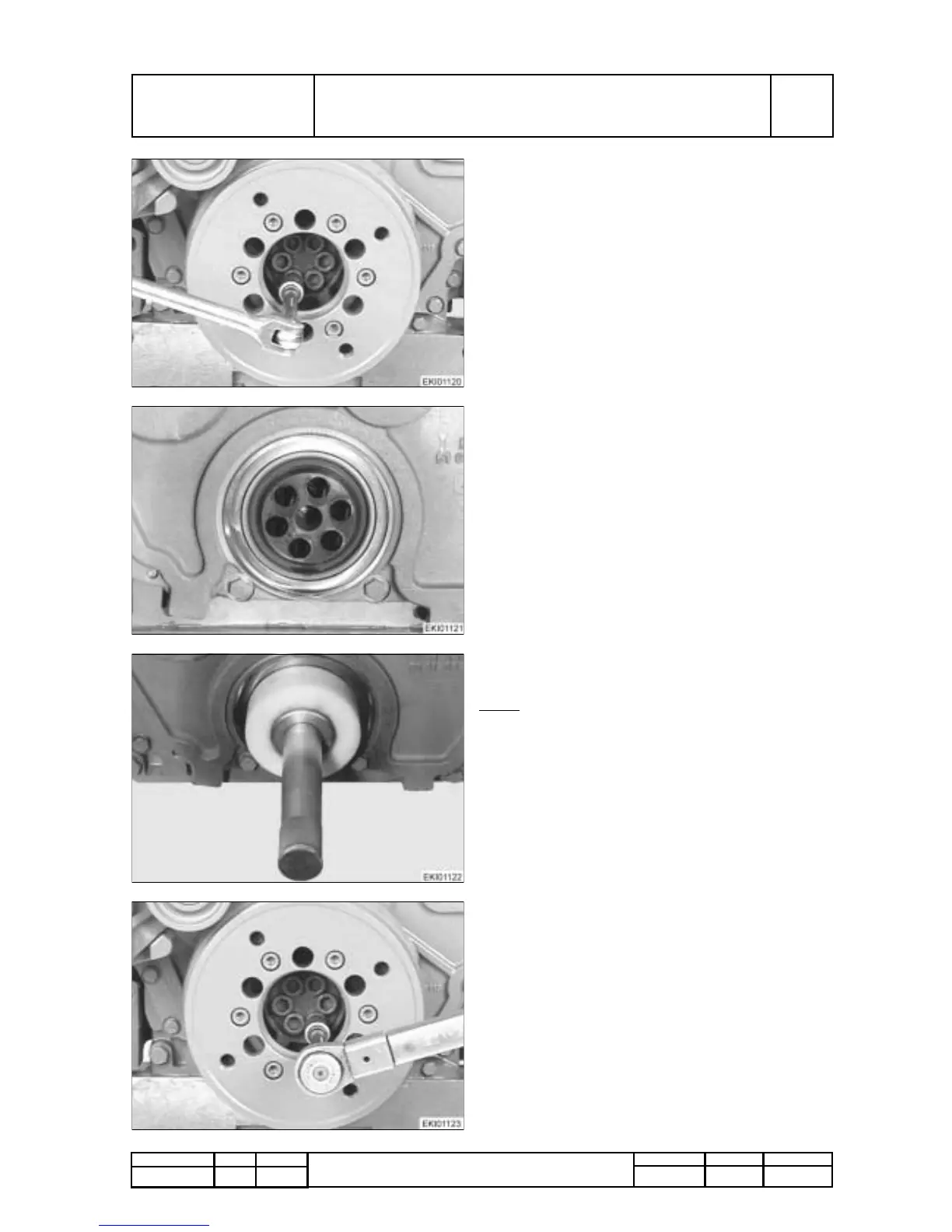

PMTAB_Picture
Removing vibration damper
Remove fan frame.
Remove power belt.
Unscrew vibration damper, remove vibration
damper.
Check vibration damper and washer for damage;
replace if necessary.
Remove oil splash ring.
PMTAB_Picture
Replacing crankshaft front seal
Lever out rotary shaftt with special tool.
PMTAB_Picture
Apply multi-purpose grease to sealing lips.
Fit new shaft sealing ring.
Note:
Do not damage sealing lips.
Use press-in plate to drive shaft sealing ring into
timing case until flush with recess .
PMTAB_Picture
Refitting the vibration damper
With surfaces free of grease and oil, position
vibration damper including oil splash ring, insert
screws and tighten to specified torque.
Refit power belt.
Place screws and tighten.
