FENDT MAN D 0836 LE - Injection System Repair: Injectors

Fav 900
Engine / Injetion valves
Replacing Injection valve with needle Motion sensor
G
Repair
Fav 900 Chassis number 23/3001 and up
01/2000
2712 000002
G
a
1/3
Capitel Docu-No.
Index
Date Version
Page
Replacing Injection valve with needle Motion sensor
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule

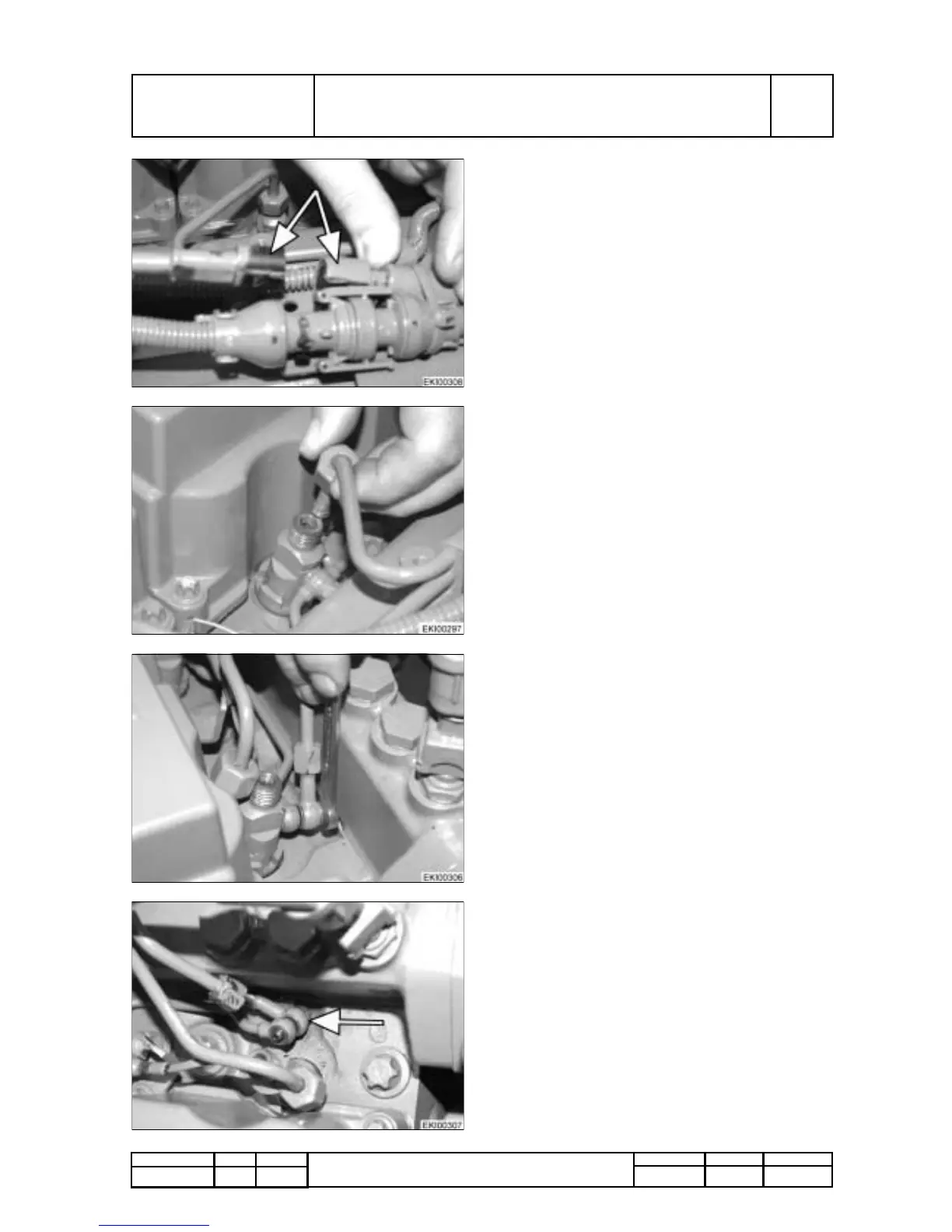

PMTAB_Picture
Disconnect connector X173 ( Needle motion
sensor EDC ).
PMTAB_Picture
Disconnect fuel line from injector
PMTAB_Picture
Disconnect return lines from all Injectors.
PMTAB_Picture
Push return line in the direction of arrow.
