Fav 900
Engine / Lubrication
Removing and refitting oil pump
G
Repair
Fav 900 chassis number 23/3001and up
14.2.2001
2312 000004
G
a
1/3
Capitel Docu-No.
Index
Date Version
Page
Removing and refitting oil pump
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

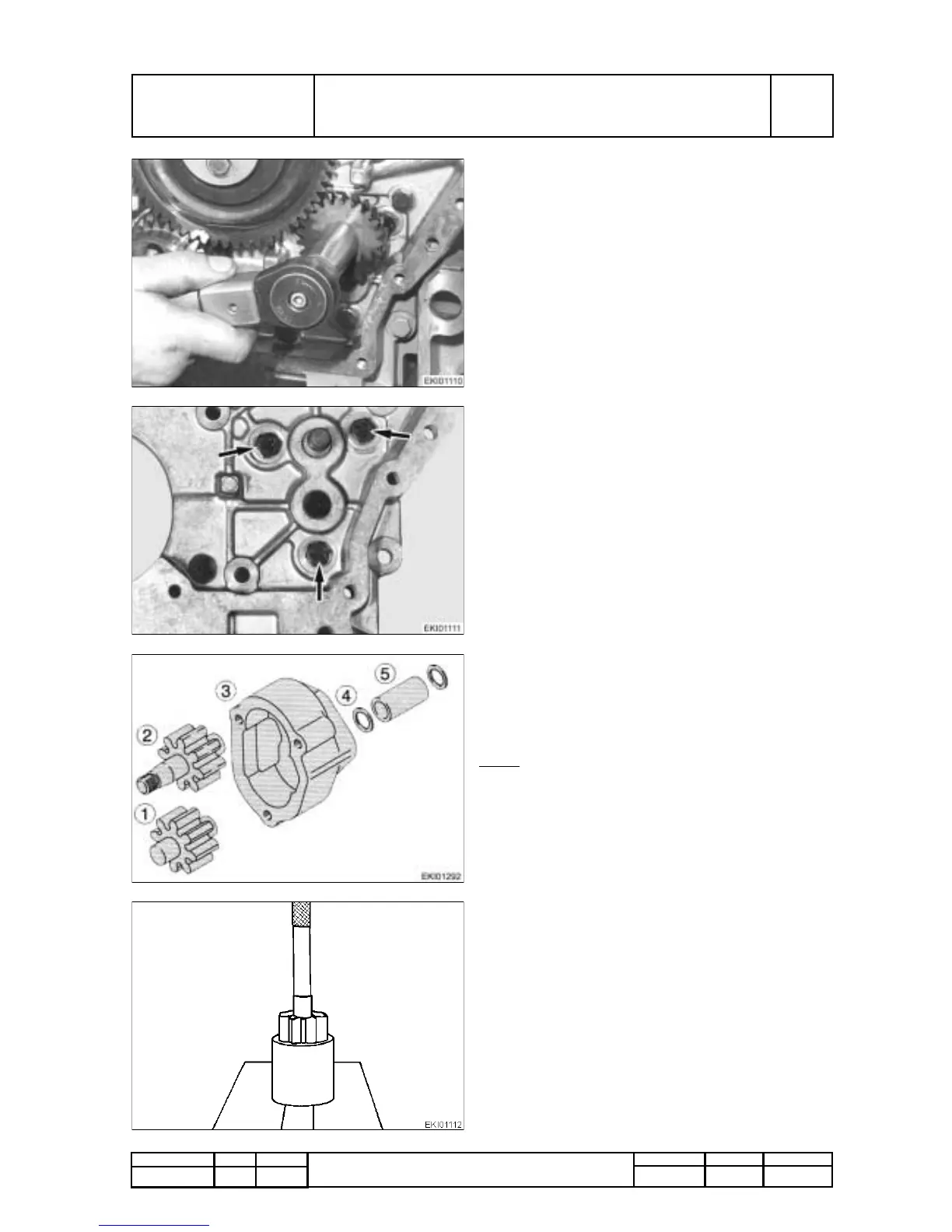

Removing the oil pump gear wheel
Remove the fan frame, Power belt, vibration
damper, air compressor, generator and the timing
case cover.
Unscrew nut of pump gear wheel, holding the
crankshaft with a rotating device.
Remove washer and withdraw gear wheel from
the cone using a puller.
Remove timing case.
PMTAB_Picture
Removing the oil pump
Remove screws (arrowed) and withdraw oil pump
from the timing case.
PMTAB_Picture
Dismantling the oil pump
Withdraw driving and driven gears (1 and 2)
together with shafts and oil pipe from the housing
(3).
Check gears and pump housing for wear.
Note:
Always replace O-Rings (4).
PMTAB_Picture
Insert gear wheel and shaft into the bush and push
out with a suitable mandrel.
