FENDT MAN D 0836 LE - Removing and Refitting Splash Nozzle

Fav 900
Engine / Lubrication
Removing and refitting splash nozzle
G
Repair
Fav 900 chassis number 23/3001and up
15.02.2001
2312 000005
G
a
1/1
Capitel Docu-No.
Index
Date Version
Page
Removing and refitting splash nozzle
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

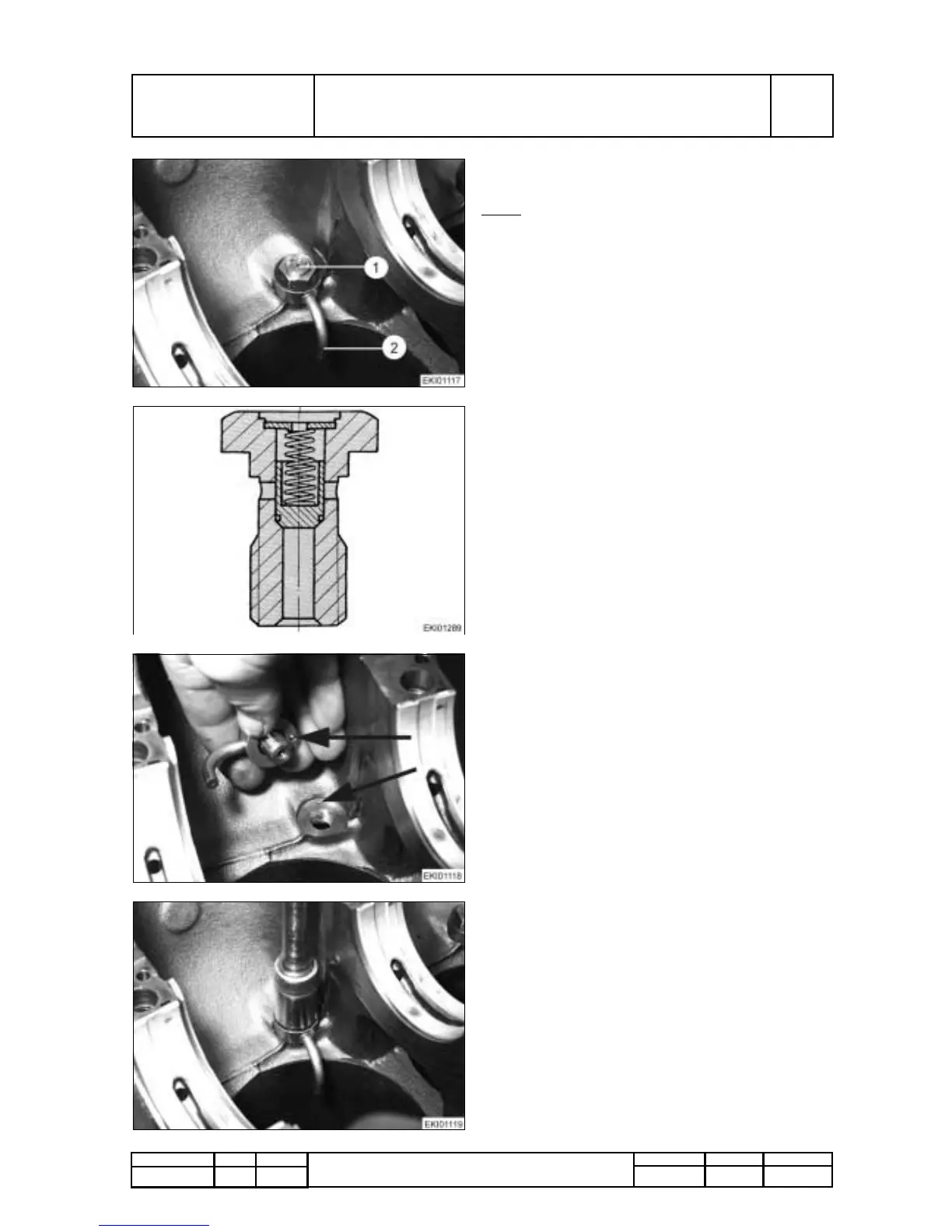

Removing oil splash nozzle
Remove oil pan and intermediate flange.
Note:
the nozzle can be removed and refittited
without removing the crankshaft.
In the illustration on hthis page the crankshaft
has been removed to allow a clear picture.
Unscrew and remove oil pressure valve (1) and
nozzle (2).
Remove nozzle and valve assembly.
PMTAB_Picture
Check oil splash nozzle valve.
With a small screwdriver check whether the valve
spring pressure is sufficient to push the valve
piston onto the valve seat. If necessary, replace
nozzle valve.
Observe opening pressure.
PMTAB_Picture
Refitting oil splash nozzle
Position nozzle, making sure that th adjusting ball
(arrowed) on the nozzle body comes to rest in the
appropriate hole (arrowed).
PMTAB_Picture
Insert oil pressure valve and tighten to specified
torque.
