Fav 900
Engine / Lubrication
Removing and refitting oil pump
G
Repair
Fav 900 chassis number 23/3001and up
14.2.2001
2312 000004
G
a
3/3
Capitel Docu-No.
Index
Date Version
Page

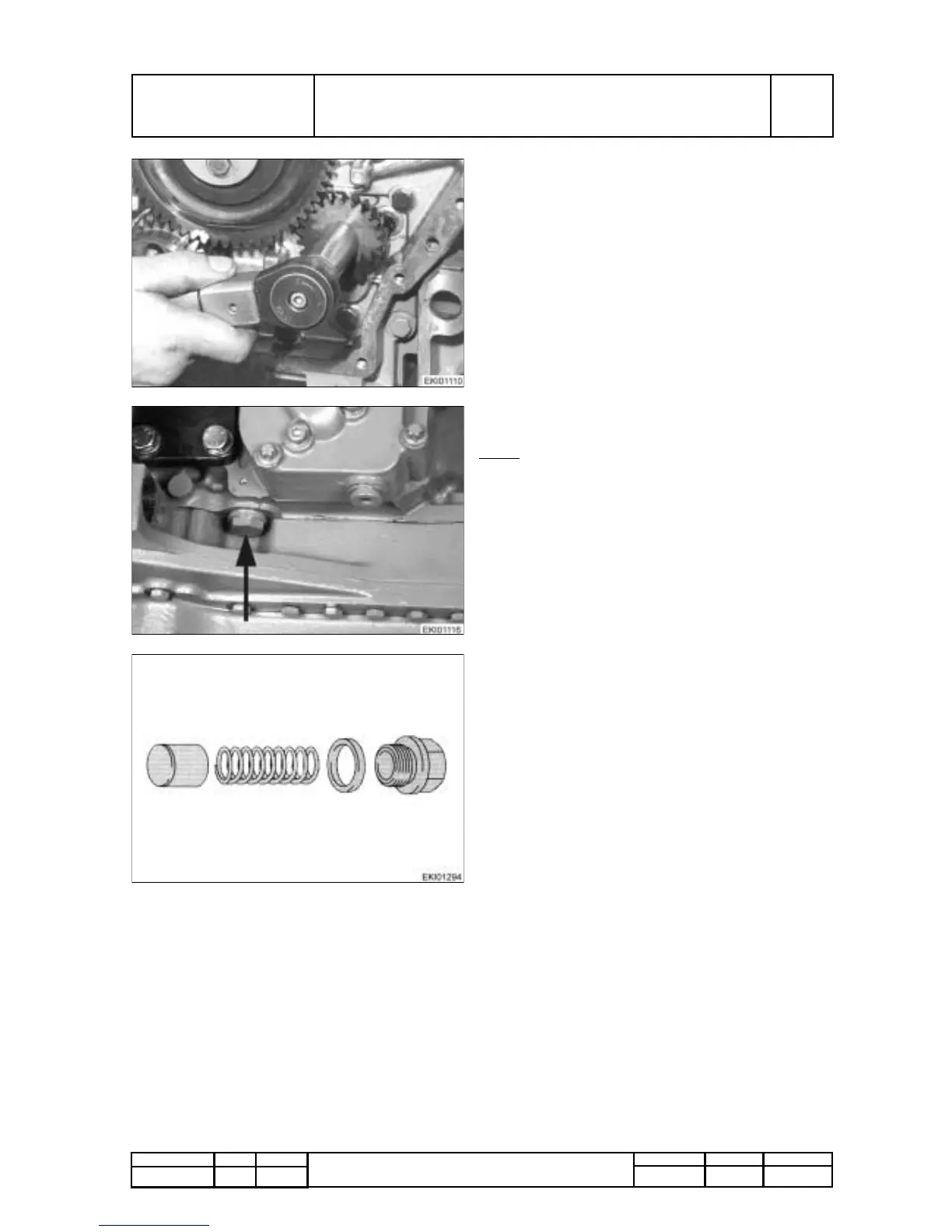

Removing and refitting oil pump
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture
Refitting the oil pump gear.
With the inner core free of grease, slide oil pump
gear onto the ungreased drive shaft cone.Fit
washer, screw on nut and tighten to specified
torque.
Remove the fan frame, Power-belt, vibration
damper, air compressor, alternator and the timing
case cover.
PMTAB_Picture
Removing and refitting the pressure
regulating valve
Note:
The pressure regulating valve is acessible
from the outside.
Unscrew and remove screw plug.
Remove sealing ring, compression spring and
piston.
PMTAB_Picture
Check valve as illustrated and refit using a new
seal.
Assemble valve as illustrated and refit using a new
seal.
Tighten screw plug to the specified torque.
