Engine / Fuel system
Layout of fuel system
C
Documents and Diagrams
Fav 900 chassis number 23/3001and up
09.03.2001
2060 000002
C
a
1/1
Capitel Docu-No.
Index
Date Version
Page

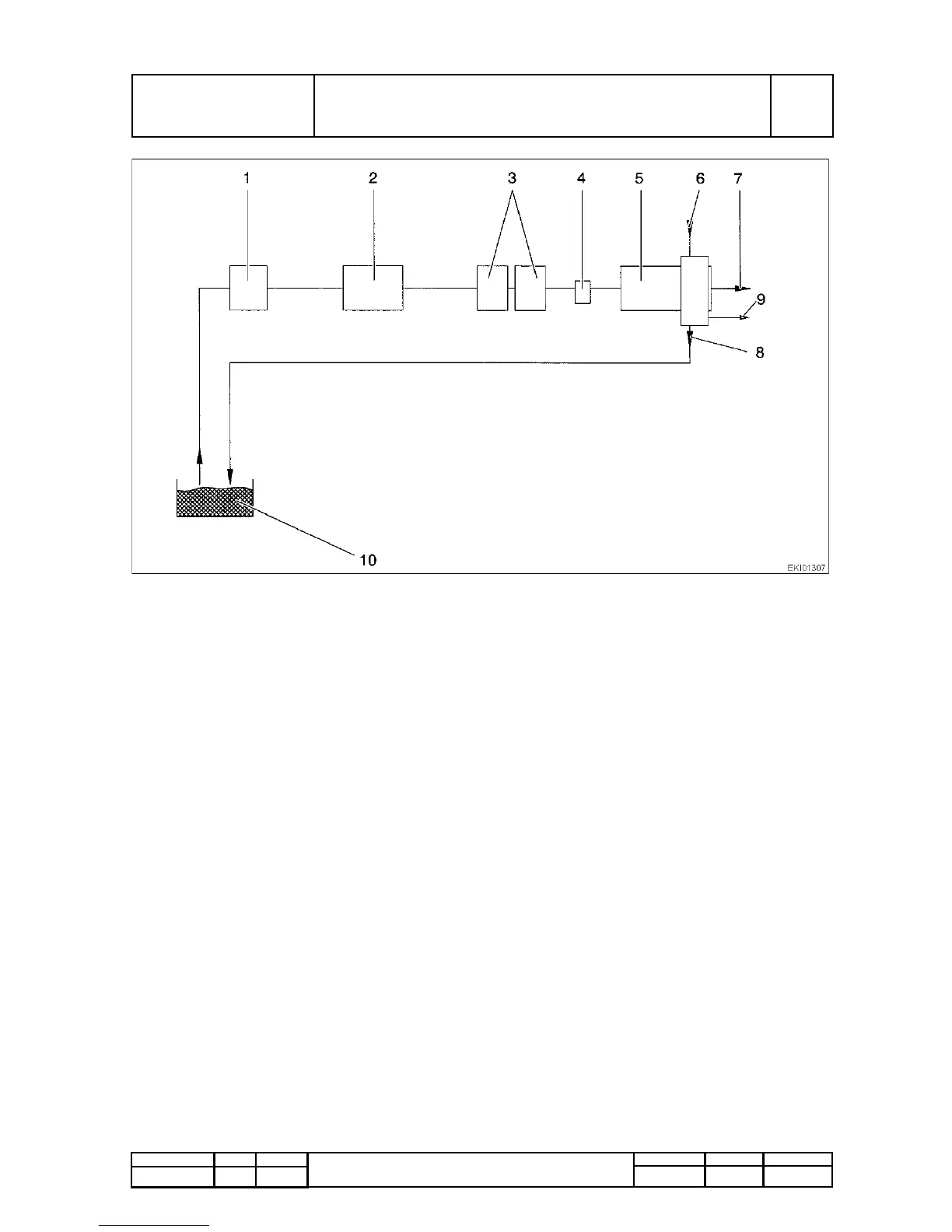

Layout of fuel system
PM-Picturemodule
Text-module
ETNum-list
PMTAB_Picture
1.Pre-filter with manual fuel lift pump
2.Fuel lift pump
3.Fuel filter
4.Measuring point for fuel pressure.
5.Injection pump
6.Return line from injection pump
7.Line to injector
8.Return tank
9.Line to heater plug
10.Fuel tank
