Fav 900
Engine / Cylinder head
Dismantling and reassembling the rocker arm assembly
G
Repair
Fav 900 chassis number 23/3001 and up
19.02.2001
2010 000007
G
a
2/2
Capitel Docu-No.
Index
Date Version
Page
Dismantling and reassembling the rocker arm assembly
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture

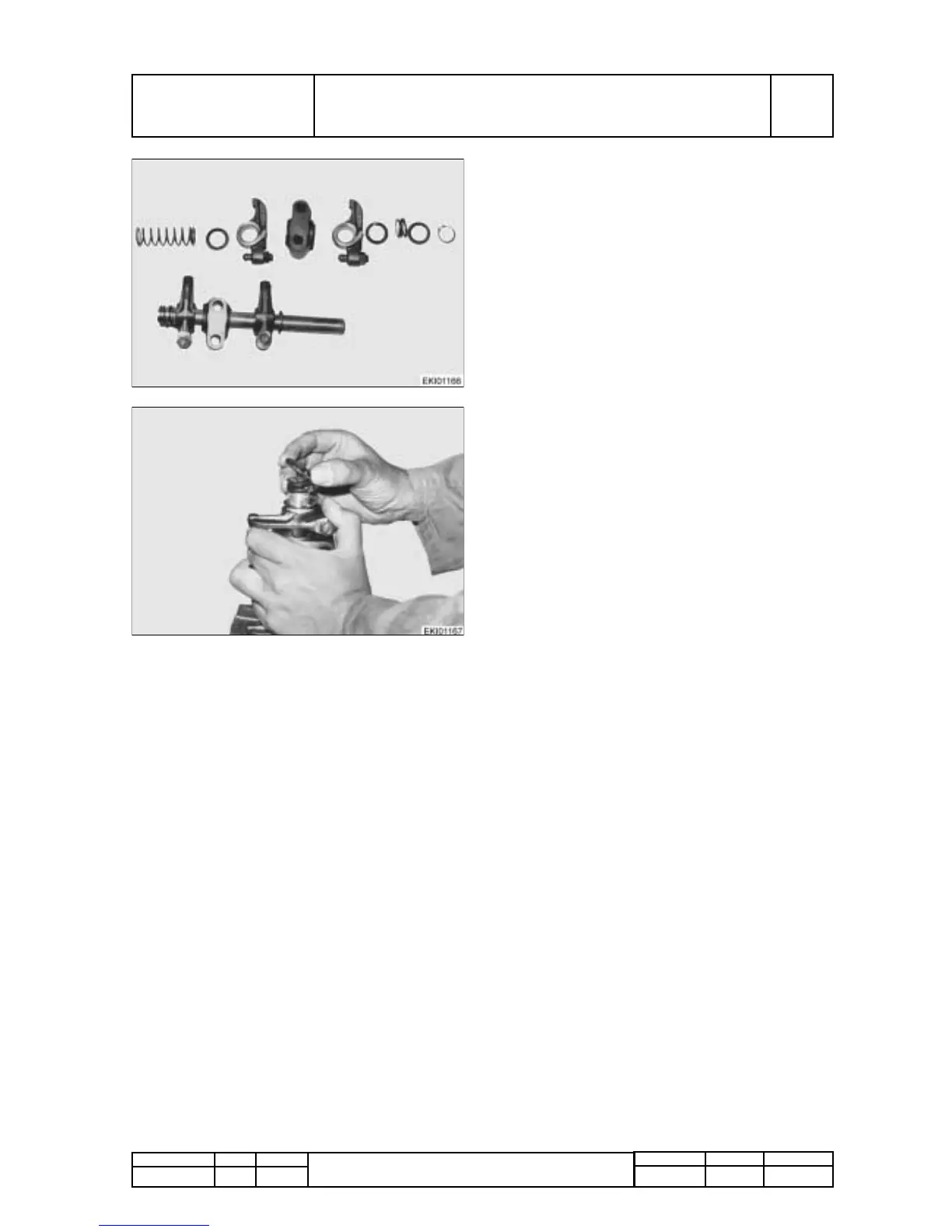

Reassembling the rocker arm assembly
Coat rocker bushes with "Optimol White T"paste.
Refit circlip on the rocker shaft.
Coat rockershaft and bearing bracket bore with
"Optimol White T" paste.
Slide stop washer, outer spring, stop washer,
rocker arm (end flush with bushing facing the
bearing bracket) and bearing bracket into the
rocker shaft.
When clamping the assembled rocker shaft into
the bearing bracket, ensure that the shaft end is
supported. (Use non-metallic jaws).
PMTAB_Picture
Fit parts in the sequence shown, compressing
springs, and insert circlip.
Refit rocker arm assembly, see chapter 2010 Reg
G - Cylinder head removing and refitting.
