*) is not supported
Lenght of data
00 = 1 byte/word
...
15 = 16 byte/word
Input/output
00 = Spezific identifier formats *)
01 = Input
10 = Output
11 = Input/Output *)
Lenght
0 = byte
1 = word
Consistency
0 = byte or word
1 = total lenght

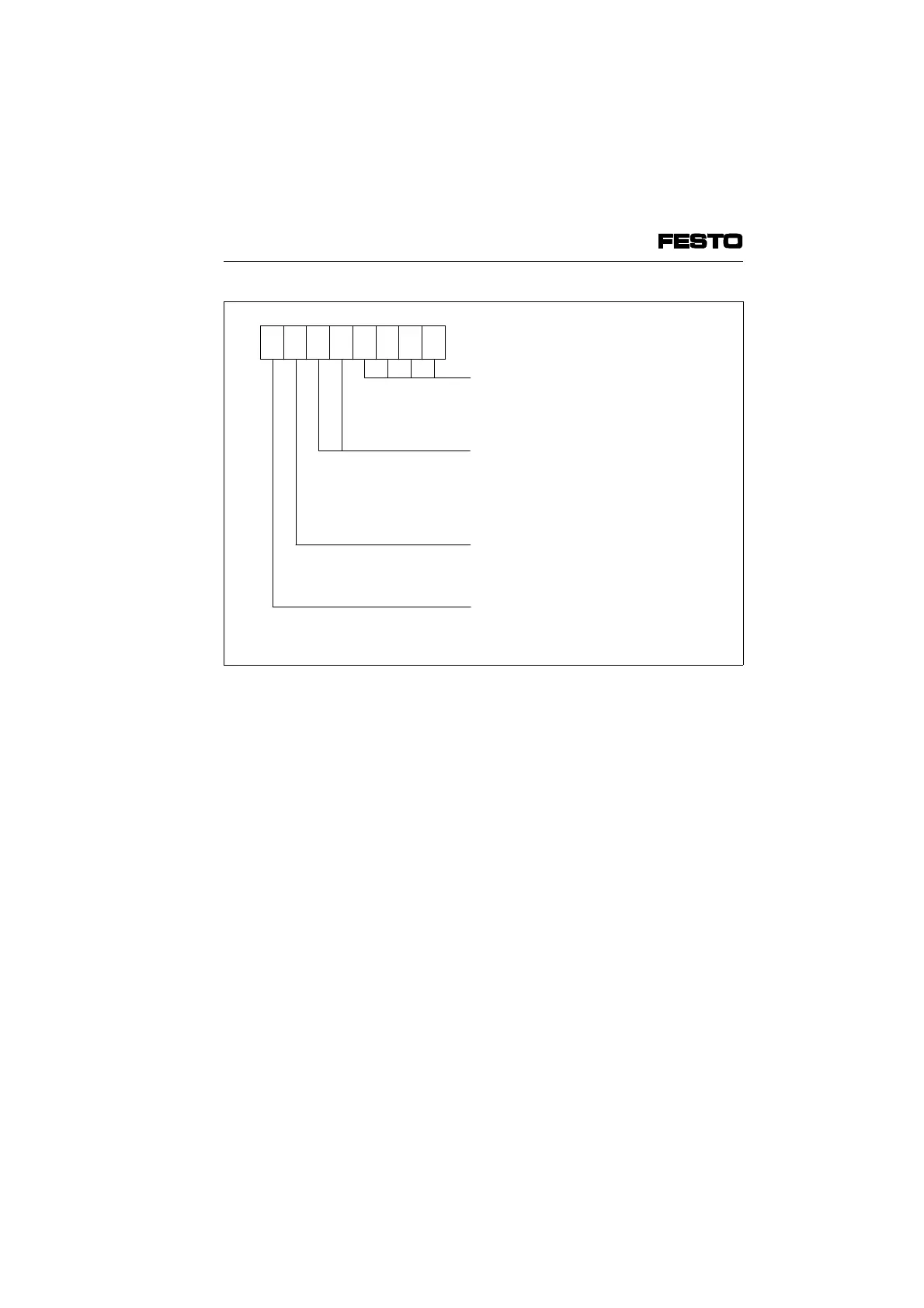

Fig. 2/2: Structure of identifier byte
Example:
00010000
b
= 016
d
(010
h
): 8DE = 8 digital inputs
76543210
Bit
Bit
