3.5 STEP 7 V4.x - Online diagnosis via diagnostic buffer
The diagnostic buffer of STEP7 offers the possibility of
displaying diagnostic events of the S7 system in the
sequence in which they occur.

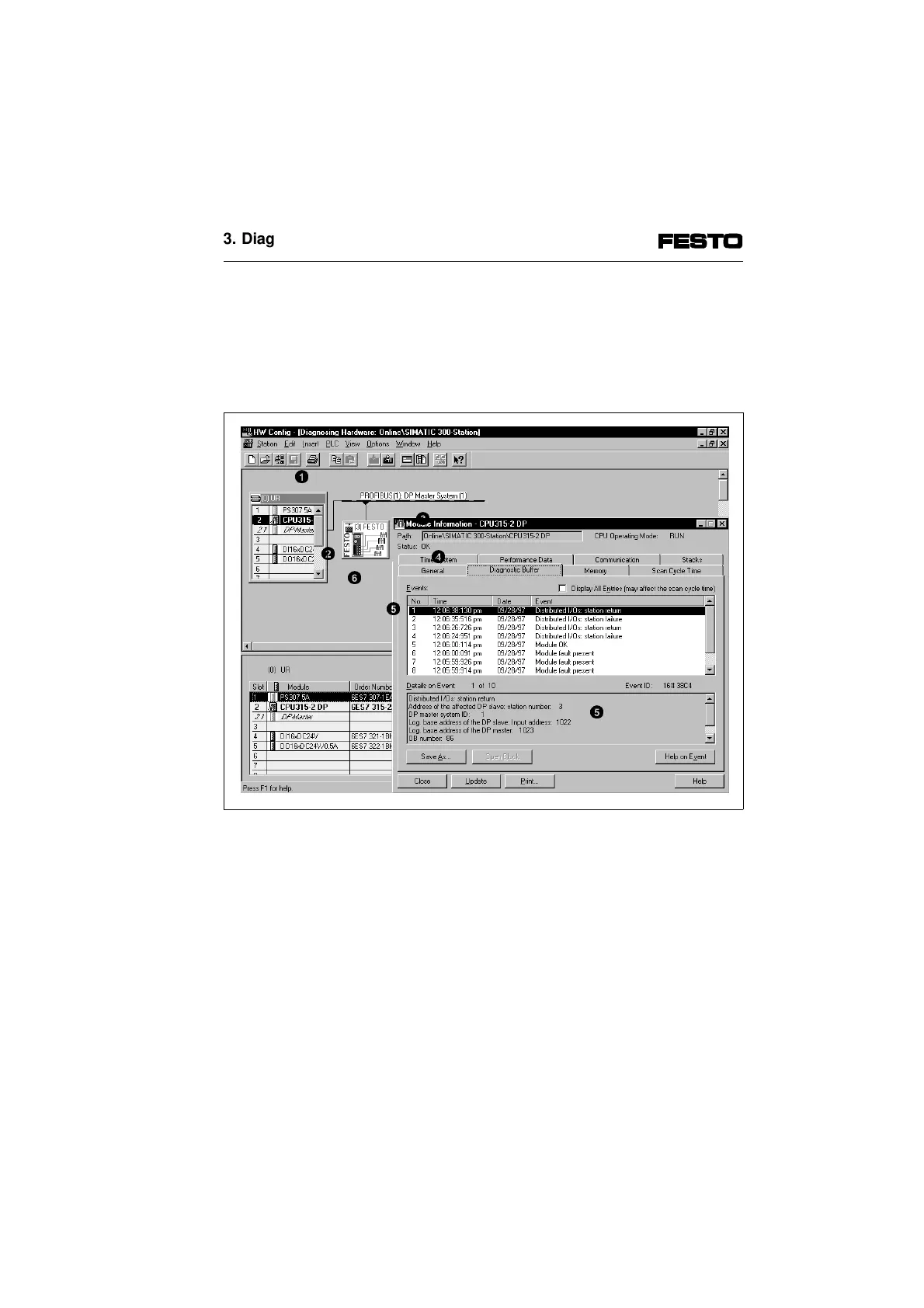

Fig. 3/13: Online diagnosis via diagnostic buffer
