Address of the CP system: 12
A = Input
E = Output
--- = occupied, but unused

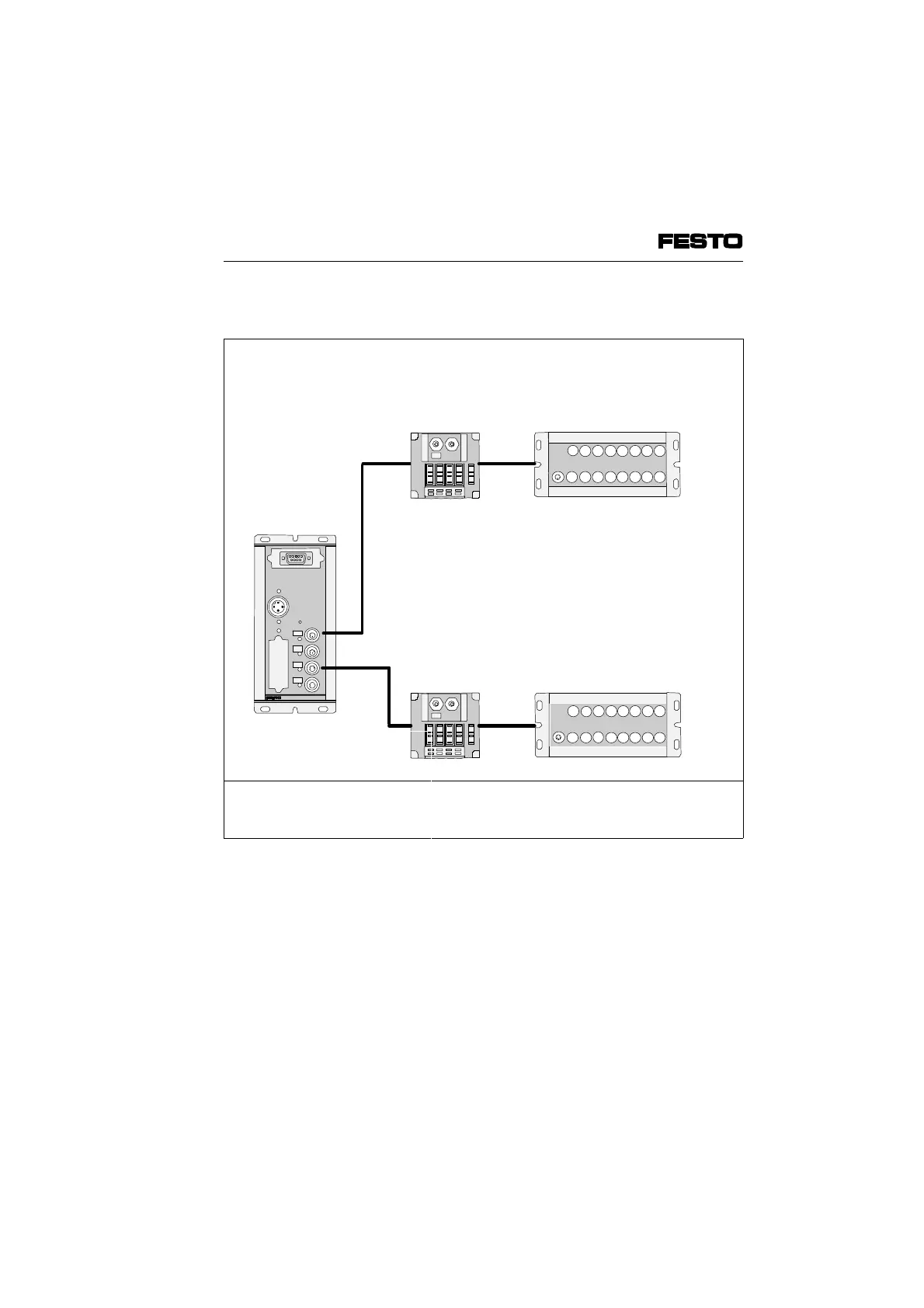

Fig. 2/11: Example – addressing the inputs and outputs of a CP system
on the PROFIBUS-DP in standard mode
0
1
3
2
SAVE
POWER
24 VDC
POWER V
ERROR
PROFIBUS-DP
BUS ERROR
Octet 1: Bits 0...7 (A20.0...A20.7)
Octet 2: Bits 0...7 (---)
Octet 1: Bits 0...7 (E20.0...E20.7)
Octet 2: Bits 0...7 (E21.0...E21.7)
Octet 3: Bits 0...7 (---)
Octet 4: Bits 0...7 (---)
Octet 3: Bits 0...7 (---)
Octet 4: Bits 0...7 (---)
Octet 5: Bits 0...7 (A24.0...A24.7)
Octet 6: Bits 0...7 (---)
Octet 5: Bits 0...7 (E24.0...E24.7)
Octet 6: Bits 0...7 (E25.0...E25.7)
2. Commissioning
CP FB13-E 9904b 2-27
