Address of the CP system: 12
E = Input
A = Output
--- = assigned, but not used
Sum of occupied bytes: 6 output bytes; 4 input bytes

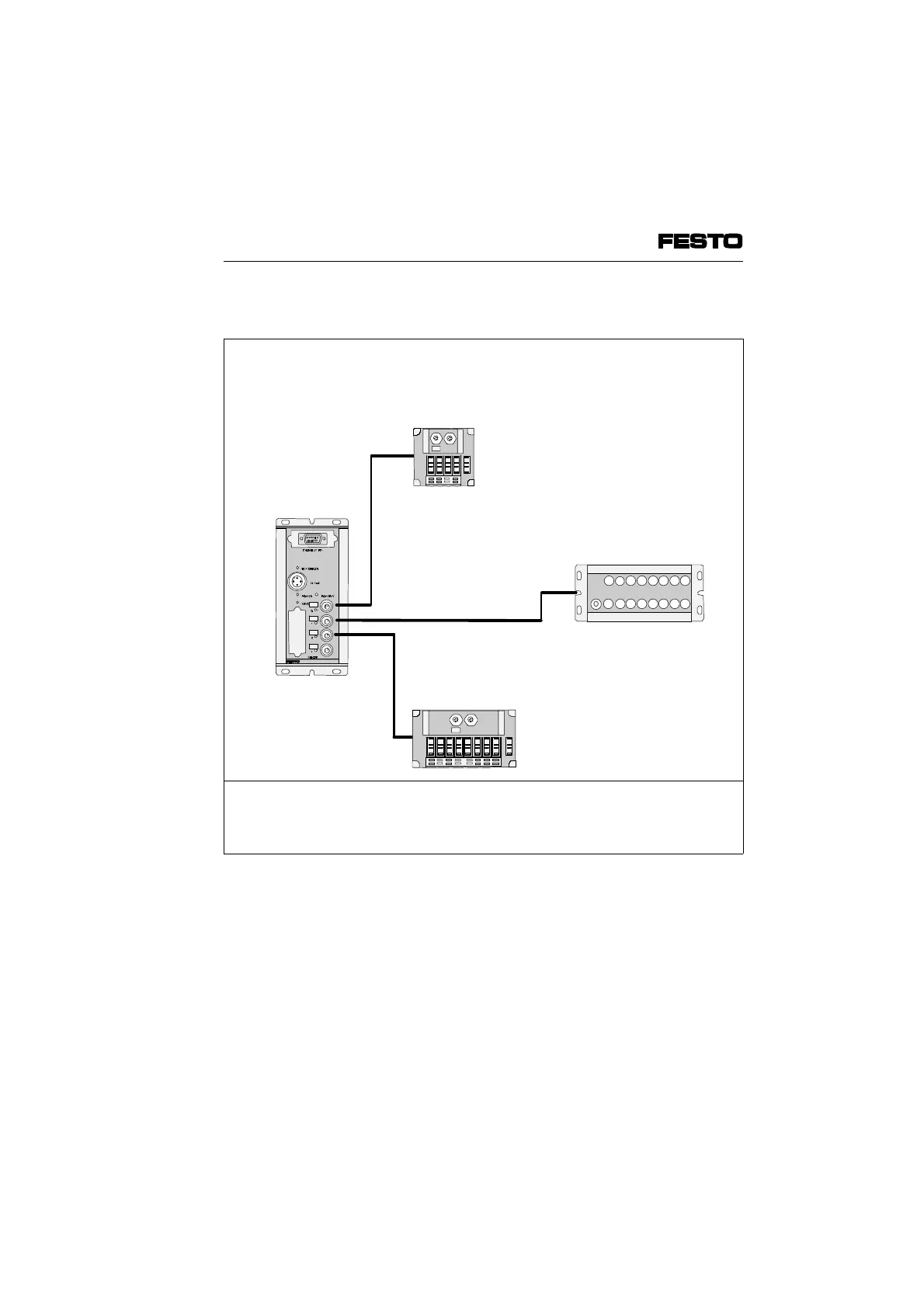

Fig. 2/12: Example – addressing the outputs and inputs of a CP system
on the PROFIBUS-DP in compact mode
Octet 1: Bits 0...7 (---)
Octet 2: Bits 0...7 (---)
Octet 5: Bits 0...7
(A24.0...A24.7)
Octet 6: Bits 0...7
(A25.0...A25.7)
Octet 3: (---)
Octet 4: (---)
Octet 5: Bits 0...7
(A24.0...A24.7)
Octet 6: Bits 0...7
(A25.0...A25.7)
Octet 3: Bits 0...7
(E22.0...E22.7)
Octet 4: Bits 0...7
(E23.0...E23.7)
No more input bytes
occupied
2. Commissioning
CP FB13-E 9904b 2-29
