8 Dismounting
Festo – MPAL-VI-EN – 2017-07a – English 93
Variant
1
2
1
2
1 M4 retaining screw 2 M6 retaining screw
Tab. 8.1 Securing points for mounting on H-rails
(A)
(B)
1
2
4
3
1 H-rail
2 Retaining screw of the H-rail clamping unit
3 Clamping component of the H-rail clamping
unit
4 Mounting surface

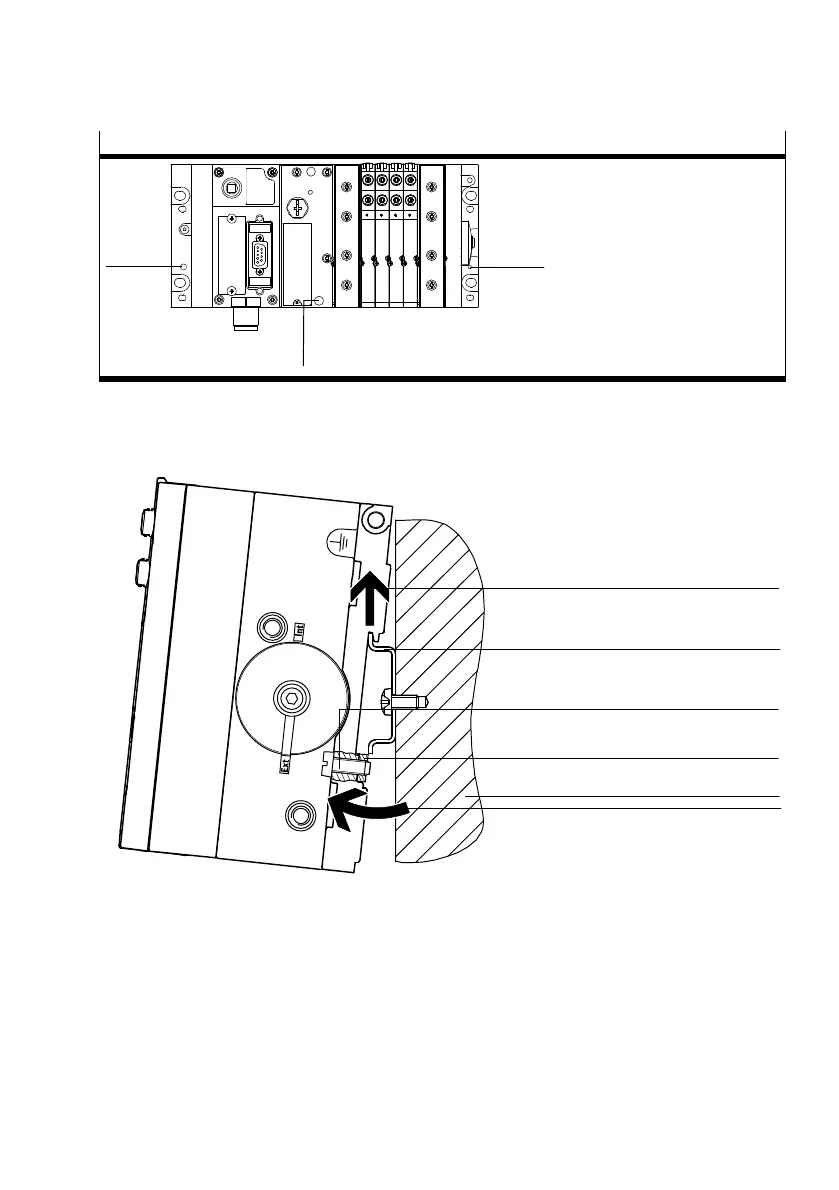

Fig. 8.1 Dismounting the valve terminal
1. Unfasten retaining screw on H-rail clamping unit è Tab. 8.1.
2. Turn clamps horizontally to H-rail.
3. Swivel valve terminal forwards from the H-rail è Fig. 8.1, arrow B.
4. Lift valve terminal off the H-rail è Fig. 8.1, arrow A.
