Correlations Software Zones
MS-9600 PN 51335:E 7/9/03 141

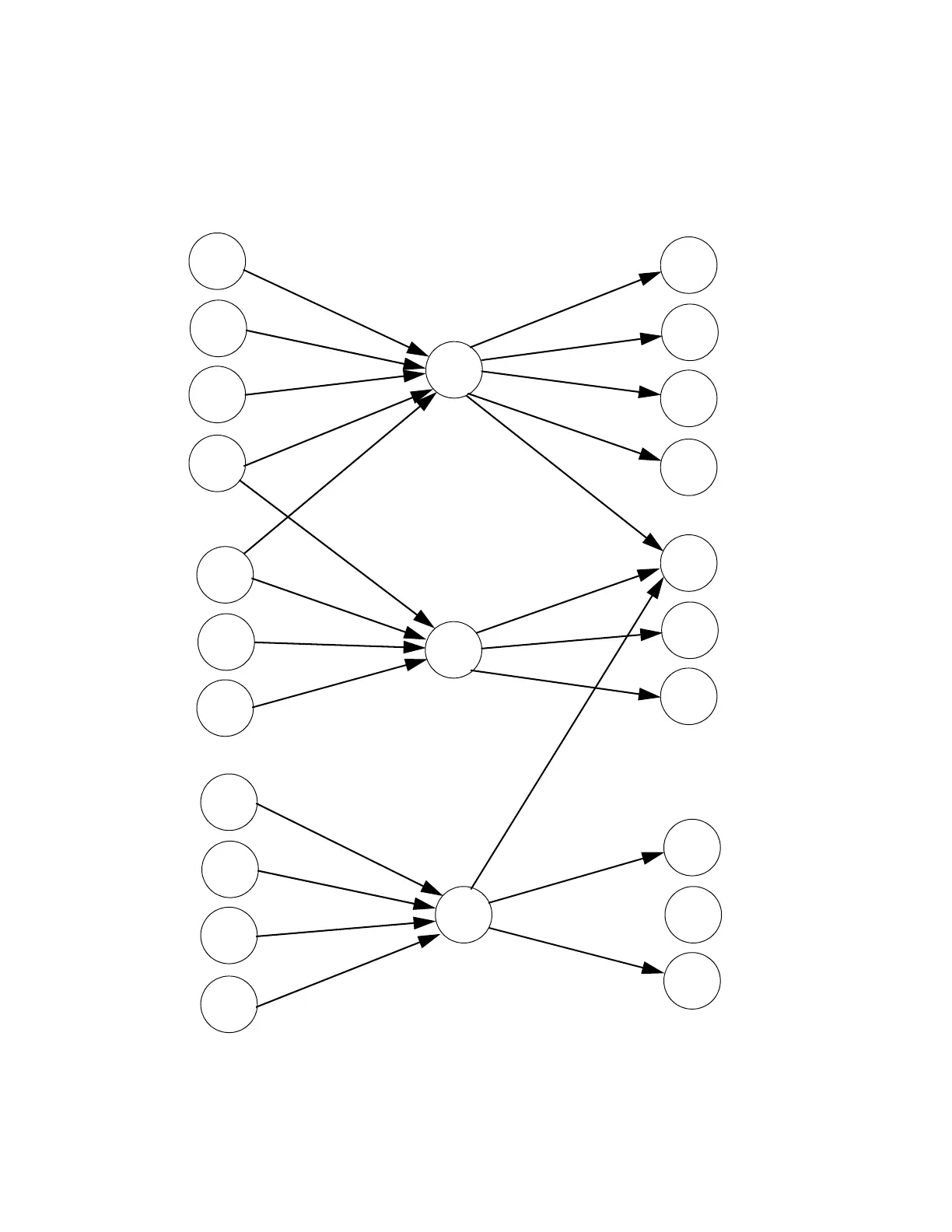

Correlation of Input and Output Zones
The zone correlations which are shown graphically above are also presented in Table A.1 on page
142 and Table A.2 on page 143.
Input Devices Zones Output Devices
ZONE
01
ZONE
02
ZONE
03
SD350
01
SD350
02
MMF-300
01
MMF-302
02
MMF-302
03
CP350
03
CP300
04
SD350
05
SD350
06
SD350
07
MMF-302
04
CMF-300
06
CMF-300
05
CMF-300
07
CMF-300
09
CMF-300
08
CMF-300
10
CMF-300
11
CMF-300
12
CMF-300
13
