Optional Modules and Devices Installation
MS-9600 PN 51335:E 7/9/03 33
2.6.1 DACT-UD Installation
WARNING! Disconnect all sources of power (AC and DC) before installing or
removing any modules or wiring.
The optional DACT-UD Digital Alarm Communicator/Transmitter transmits system
status to UL listed Central Station receivers via the public switched telephone network.
It is capable of reporting up to 99 software zones or up to 636 addressable points. Two
modular phone jacks, labeled PH1 for Primary phone line and PH2 for Secondary
phone line, allow easy connection of two independent telephone lines to the DACT.
Telephone line ‘Primary’ and ‘Secondary’ active red LEDs are provided as well as a
green ‘Kissoff’ LED. The following functions have been incorporated into the DACT:
• Line Seizure - takes control of phone lines disconnecting any premises phones
• Off/On Hook - performs on and off-hook status to the phone lines
• Listen for dial tone - 440 hertz tone typical in most networks
• Dialing Central Station(s) number - default is Touch-Tone®, programmable to
rotary
• For tone burst or touchtone type formats: determine proper ‘Acknowledge’ and
‘Kissoff’ tone(s) - the frequency and time duration of the tone(s) varies with the
transmission format. The control panel will adjust accordingly
• Communicate in the following formats:
12 Tone Burst Types: 20 pps
(3+1, 4+1, 4+2, 3+1 Exp., 4+1 Exp., 4+2 Exp.)
3 Touchtone Types:
4+1 Ademco Express
4+2 Ademco Express
Ademco Contact ID
The DACT-UD module plugs into connector J2 on the MS-9600 main circuit board.
J1
J2
J3
SECONDARY
PRIMARY
SW1
O
F
F
O
N
2 1

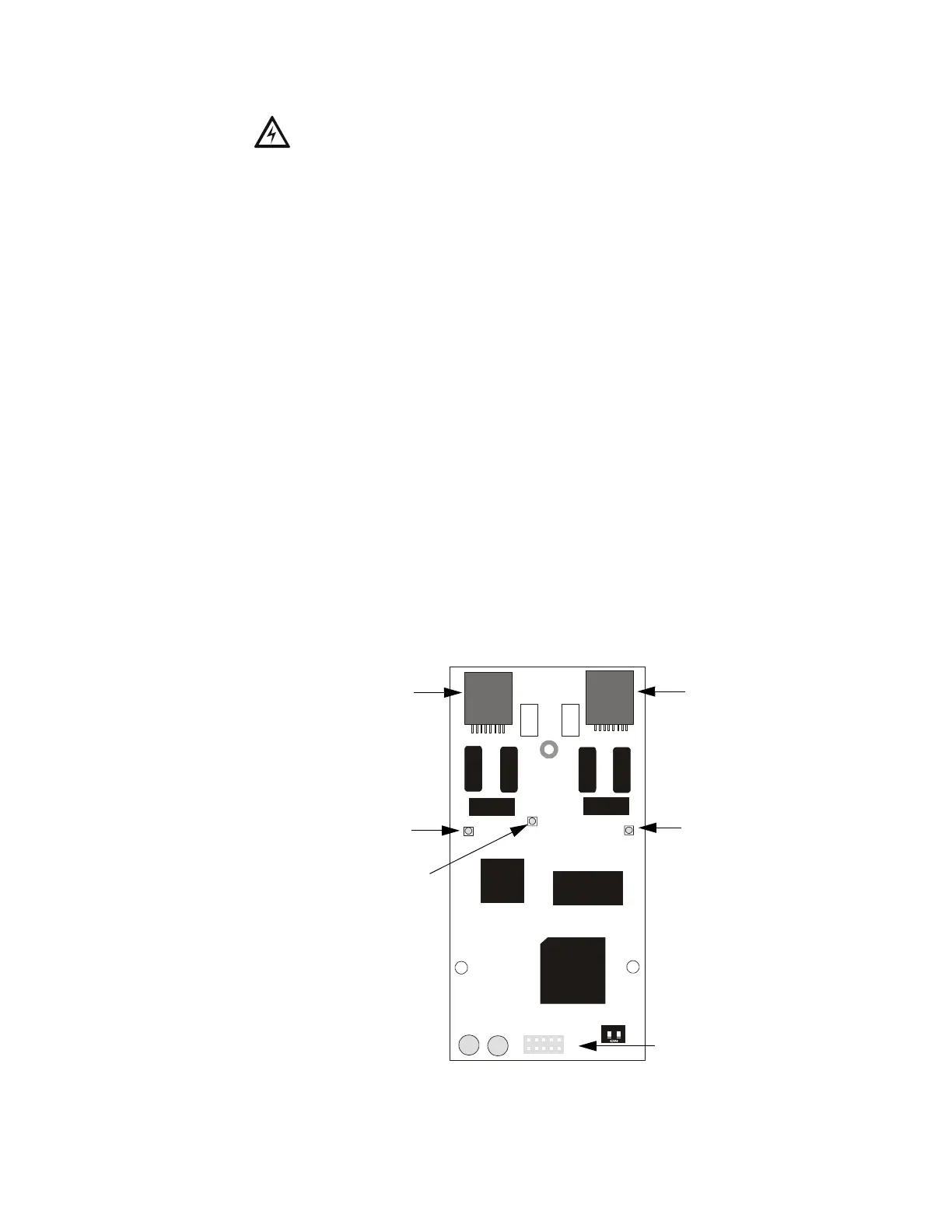

Figure 2.11 DACT-UD Module
PH2
Secondary Phone Line
Primary Active LED
Secondary Active LED
Kissoff LED
J1 Connector (located on back
of module) plugs into J2 on
MS-9600 main circuit board
PH1
Primary Phone Line
