5800 RF System Wireless Transmitters
Transmitter Input Loop Identification
5800 Series Transmitter Input Loop Identification

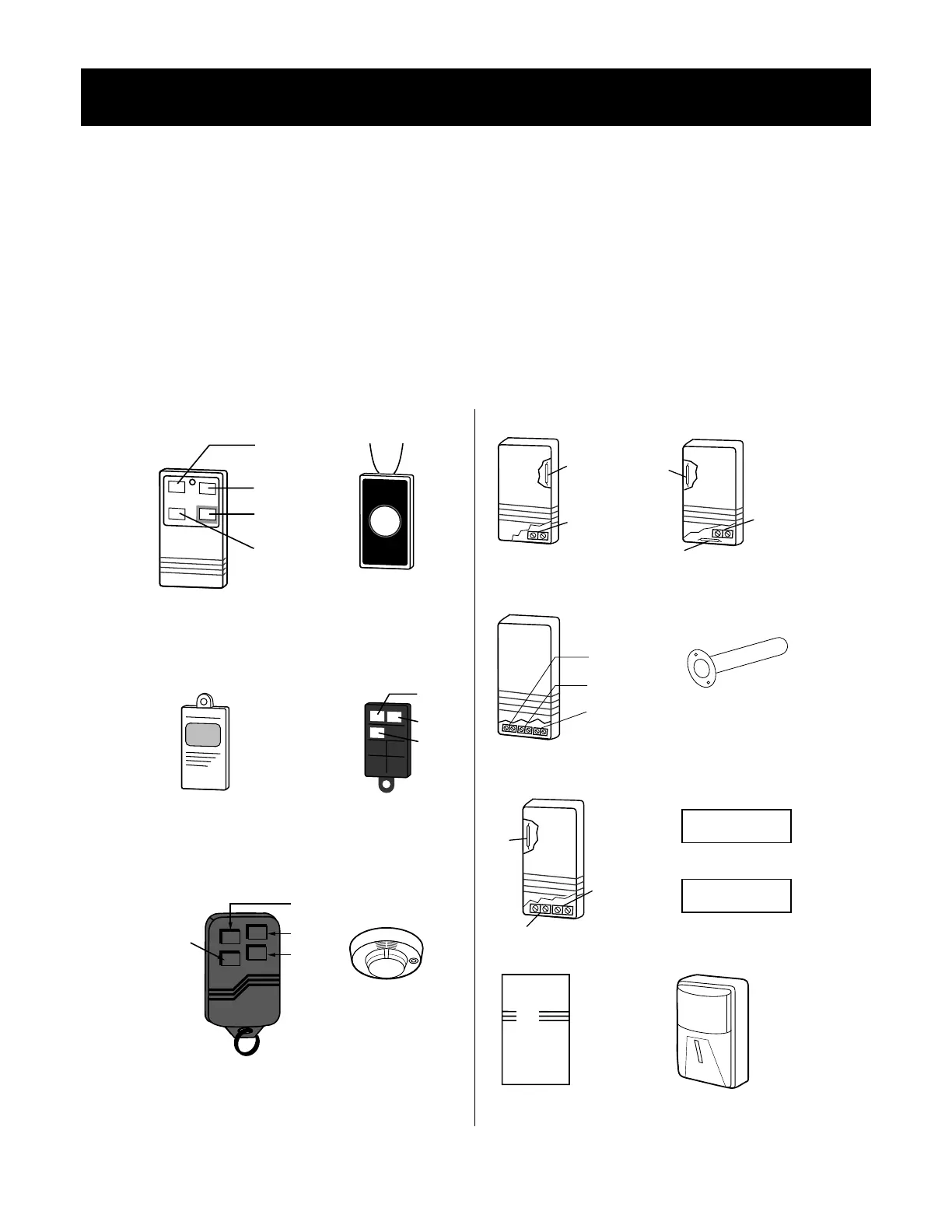

¥ All of the transmitters illustrated below have one or more unique factory assigned input (loop) ID codes.
Each of the input loops requires its own programming zone (e.g., a 5803's three inputs require three
programming zones).
¥ Transmitter inputs entered as:
"RF" (Supervised RF) Type send periodic check-in signals, as well as fault, restore and low
battery signals. The transmitter must remain within the receiver's range.
ÒUR" (Unsupervised RF) Type send all the signals that the "RF" Type does, but the control
does not supervise the check-in signals. The transmitter may, therefore, be carried off-premises.
"BR" (Unsupervised Button RF) Type only send fault signals. They do not send low battery,
restore or check-in signals. The transmitter may be carried off-premises.
3
4
1
2
(ALWAYS USE)
INPUT
(LOOP)
5801
LEARN AS "UR" OR "RF"
INPUT
(LOOP)
1
5802/5802CP
LEARN AS "BR"
INPUT
(LOOP)
1
5802MN
LEARN AS "UR" OR "RF"
5803
LEARN AS "BR"
3
2
1
ON
OFF
YOU MUST
LEARN THIS
BUTTON
LOOP 3
LOOP 1
LOOP 2
LOOP 4
INPUT
(LOOP)
1
5806/5807/5808
(5806 SHOWN)
LEARN AS "RF"
5804
LEARN
AS "BR"
INPUT
(LOOP)
5817
LEARN AS "RF"
INPUT
(LOOP)
1
(PRIMARY)
2
(AUX. CENTER)
3
(AUX. RIGHT)
5818
LEARN AS "RF"
INPUT
(LOOP)
1
5849
LEARN AS "RF"
INPUT
(LOOP)
1
(MOTION)
INPUT
(LOOP)
1
(MOTION)
5890
LEARN AS "RF"
5816
LEARN AS "RF"
INPUT
(LOOP)
2
(REED)
LOOP 1
(TERMINALS)
5827
SET HOUSE CODE
5827BD
SET HOUSE CODE
5816MN
LEARN AS "RF"
INPUT
(LOOP)
2
(REED)
LOOP 1
(TERMINALS)
5819
LEARN AS "RF"
INPUT
(LOOP)
2
(REED)
LOOP 1
(TERMINALS)
ALTERNATE
POSITION
FOR LOOP2
LOOP 3
(TERMINALS)
