SMOKE
AUX. POWER
OUTPUT
10.5-13.8VDC
600mA MAX.
INTERRUPTS
FOR FIRE
ALARM RESET
NOTE:
KEYPAD(S)
CURRENT (IN
BOTH
PARTITIONS)
AND ALL
OTHER
DEVICES
DRAWING
POWER FROM
TERMS 4 & 5
MUST BE
INCLUDED IN
AUX CURRENT
DRAIN
CALCULATIONS
OPTIONAL
FOR UP TO 30 ADDITIONAL ZONES
(ONE FROM EITHER OR BOTH GROUPS)
ADEMCO 5881 Type
RF RECEIVER
WIRELESS ZONES
5881L: UP TO 8
5881M: UP TO 16
5881H: UP TO 30
ADEMCO No. 4219
WIRED EXPANSION MODULE
(8 ADD'L EOLR WIRED ZONES)
-OR-
ADEMCO No. 4229
WIRED EXPANSION/RELAY MODULE
(8 ADD'L EOLR WIRED ZONES PLUS 2
OUTPUT RELAYS)
-OR-
ADEMCO No. 4204 RELAY MODULE
(4 OUTPUT RELAYS)
BLK
RED
GRN
YEL
123456789101112131415161718192021 22 23 24 25
EARTH
GROUND
SEE INSTRUCTIONS
FOR PROPER
GROUNDING
TELEPHONE WIRING
(VIA RJ31X JACK AND DIRECT
CONNECT CORD.
FOR CONNECTION OF
OPTIONAL FA4285 VOICE MOD-
ULE TO PHONE TERMINALS, SEE
INSTRUCTIONS.
REMOTE KEYPADS
EACH PARTITION CAN
USE:
FA210KP (30mA)
FA250KP (40mA)
FA450KP (70mA)
FA550KP (70mA)
LOCAL PROGRAMMING
MUST BE DONE WITH
AN FA550KP CONNECT-
ED TO PARTITION 1,
BUT NEED NOT REMAIN
IN THE SYSTEM.
BLACK: KEYPAD GROUND (–) RETURN
RED: KEYPAD PWR (+)
GREEN: DATA IN FROM KEYPAD
YELLOW: KEYPAD DATA OUT
CAN BE USED FOR 2-WIRE SMOKE DETECTORS
REMOTE
KEYPAD
PARTITION 1
}
WARNING:
TO PREVENT RISK OF SHOCK,
DISCONNECT TELEPHONE LINE AT
TELCO JACK BEFORE SERVICING
THIS UNIT.
CHARGING
VOLTAGE
13.8VDC
BATTERY
12V, 4AH
–
+
–
+
CONNECTOR
TABS
PLUG-IN TRANSFORMER
16.5VAC, 25VA (e.g. ADEMCO
No. 1321)
TO 110VAC
UNSWITCHED
OUTLET (24HR)
–
+
ALARM OUTPUT
10.5-13.8VDC, 2A MAX. (700mA MAX. FOR UL
USAGE, INCLUDING AUX POWER)
STEADY FOR BURGLARY/PANIC, TEMPORAL PULSE
SOUNDING FOR FIRE (e.g. USE ADEMCO No. 702
SIREN, OR 12V BELL). SEE INSTRUCTIONS.
BLK
RED
GRN
YEL
TO TERM 4
TO TERM 5
TO TERM 6
TO TERM 7
BLK
RED
GRN
YEL
AND/OR
SET RECEIVER’S
DIP SWITCH
FOR DEVICE
ADDRESS OF
“0”. SEE
INSTRUCTIONS.
THIS EQUIPMENT SHOULD BE INSTALLED IN
ACCORDANCE WITH THE NATIONAL FIRE
PROTECTION ASSOCIATION’S STANDARD 74
(NATIONAL FIRE PROTECTION ASSOC.,
BATTERYMARCH PARK, QUINCY, MA 02269).
PRINTED INFORMATION DESCRIBING
PROPER INSTALLATION, OPERATION,
TESTING, MAINTENANCE, EVACUATION
PLANNING AND REPAIR SERVICE IS TO BE
PROVIDED WITH THIS EQUIPMENT.
RING
(GRAY)
TIP
(GREEN)
RING
(RED)
INCOMING
PHONE LINE
HANDSET
BLACK
RED
–
+
SET UNIT’S DIP
SWITCH FOR
DEVICE
ADDRESS
OF “1”.
SEE
INSTRUCTIONS.
2000
OHMS
EOLR
2000
OHMS
EOLR
ZONE 1
ZONE 2
HI
LO
HI
LO
2000
OHMS
EOLR
2000
OHMS
EOLR
ZONE 3
ZONE 4
HI
LO
HI
LO
2000
OHMS
EOLR
2000
OHMS
EOLR
ZONE 5
ZONE 6
HI
LO
HI
LO
2000
OHMS
EOLR
2000
OHMS
EOLR
ZONE 7
ZONE 8
HI
LO
HI
LO
• MAXIMUM LOOP RESISTANCE (EACH ZONE) 300 OHMS
(PLUS EOLR)
• RESPONSE, ZONES 1-8: 10, 350, OR 700 MSEC
(PROGRAMMABLE)
CONNECTOR
FOR PARTITION
2 KEYPAD(S)
YEL
RED
BLK
GRN
GEL LEAD ACID TYPE.
BATTERY NORMALLY NEED NOT BE
REPLACED FOR AT LEAST 3 YRS.
BATTERY CAPACITY FOR EMERGENCY
STANDBY USE AT LEAST 4 HOURS.
TO DETERMINE TOTAL STANDBY
LOAD ON BATTERY, ADD 100mA TO
TOTAL OF AUX. POWER OUTPUT AND
REMOTE KEYPAD CURRENTS.
USE UL LISTED
LIMITED ENERGY
CABLE FOR ALL
CONNECTIONS
BATTERY FUSE
FOR REPLACEMENT,
USE SAME VALUE
(e.g. ADEMCO No. 90-12)
9-PIN CONNECTOR
USED FOR 4300
TRANSFORMER
CONNECTIONS (FOR
OPTIONAL POWER LINE
CARRIER DEVICES)
SEE INSTRUCTIONS.
123456789
USE 4142TR CABLE
REMOTE
KEYPAD
PARTITION 2
USE 4300 TRANSFORMER INTERFACE IN
PLACE OF 1321 WHEN POWER LINE CAR-
RIER DEVICES ARE BEING USED (SEE
INSTRUCTIONS FOR CONNECTIONS)
TIP
(BROWN)
}
}
CAN BE USED FOR GLASS BREAK DETECTORS
OPTIONAL:
No. 5800TM
TRANSMITTER MODULE (20mA)
(for No. 5827BD
Wireless Bi-directional Keypad)
AND/OR
FA4285 VOICE MODULE (160mA)
AND/OR
No. 7720 PLUS OR 7820
LONG RANGE RADIO
MAY ALSO BE CONNECTED.
SEE INSTRUCTIONS
ACCOMPANYING THOSE DEVICES.
THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CON-
DITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT
ANY INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
COMPLIES WITH FCC RULES, PART 68
FCC REGISTRATION NO. AC398U-68192-AL-E
RINGER EQUIVALENCE: 0.7B.
FOR COMPLETE INFORMATION, SEE INSTRUCTIONS N7526-1V3
WEEKLY TESTING IS REQUIRED TO ENSURE
PROPER OPERATION OF THIS SYSTEM.
3A

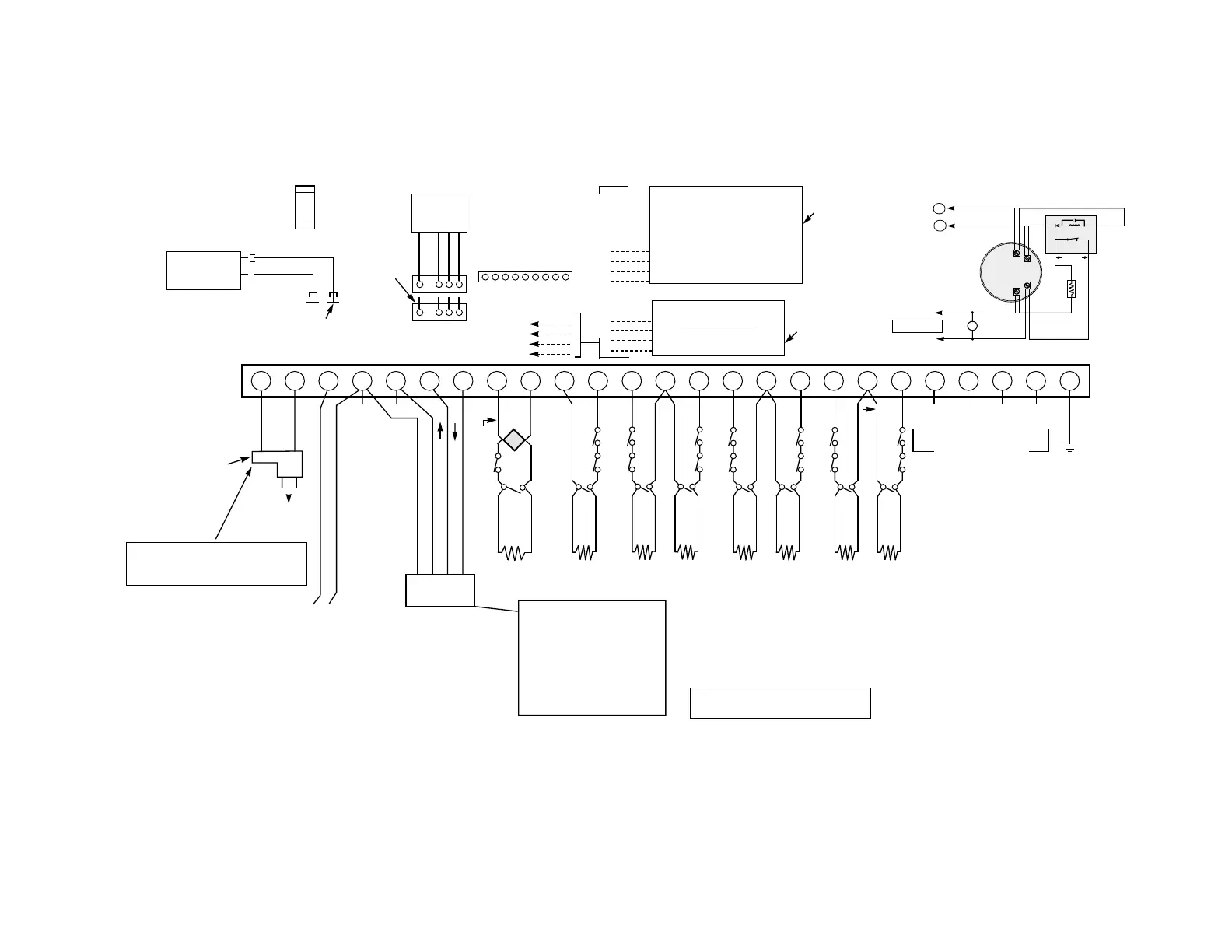

Figure 22. FA162C SUMMARY OF CONNECTIONS
