OPERATING YOUR SNOWPLOW
Function Description of Operation
L
(Angle
Left)
Straight blades: Press this button to
angle the blade to the left.
All others: With wings in a straight line,
press the L button to move both wings
to the angle left position. The left wing
retracts while the right wing extends
(XtremeV™, XV2™). Function times out
after 5.5 (straight blades), 3.0 (XtremeV,
XV2) or 3.25 (XLS™) seconds.
R
(Angle
Right)
Straight blades: Press this button to
angle the blade to the right.
All others: With wings in a straight line,
press the R button to move both wings
to the angle right position. The right
wing retracts while the left wing extends
(XtremeV, XV2). Function times out after
5.5 (straight blades), 3.0 (XtremeV, XV2)
or 3.25 (XLS) seconds.
NOTE: If a control function times out before
desired blade movement is complete, release
the button and press it again.

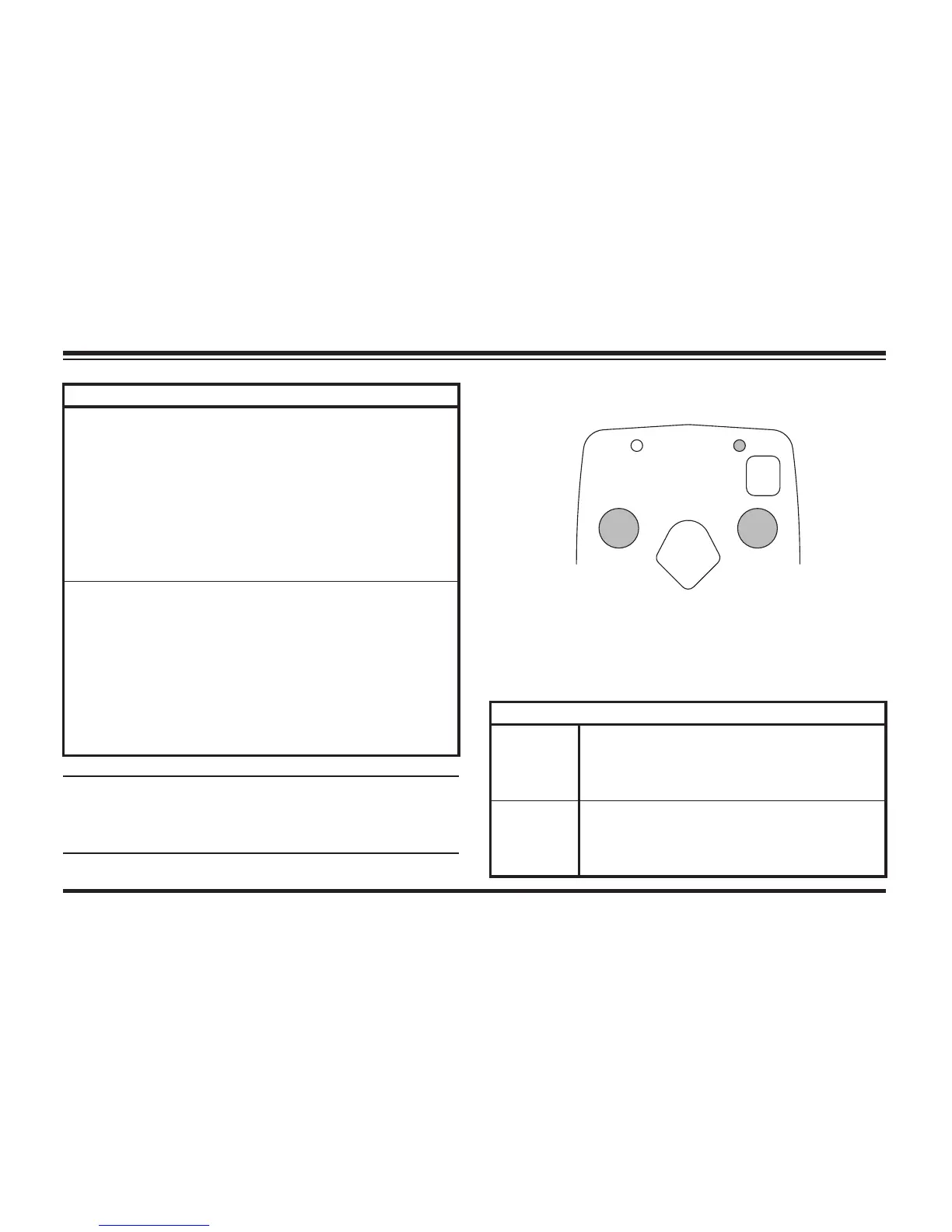

Scoop/Retract Blade Position
XtremeV, XV2, and XLS Blades
The two round buttons located to the left and right
of the RAISE button move both wings at the same
time into the blade positions described in the
following table.
Function Description of Operation
SCOOP
Press this button to extend both wings
forward into the scoop position. Function
times out after 5.0 (XtremeV, XV2) or
5.5 (XLS) seconds.
RETRACT
Press this button to draw both wings into
the fully retracted/vee position. Function
times out after 3.0 (XtremeV, XV2) or
4.5 (XLS) seconds.
RAISE
ON/OFFFLOAT
12
S
C
O
O
P
R
E
T
R
A
C
T
