EasyGrid User Guide MAN-00084 R 11.0
7
5 Hardware Configuration
5.1 Dimensions

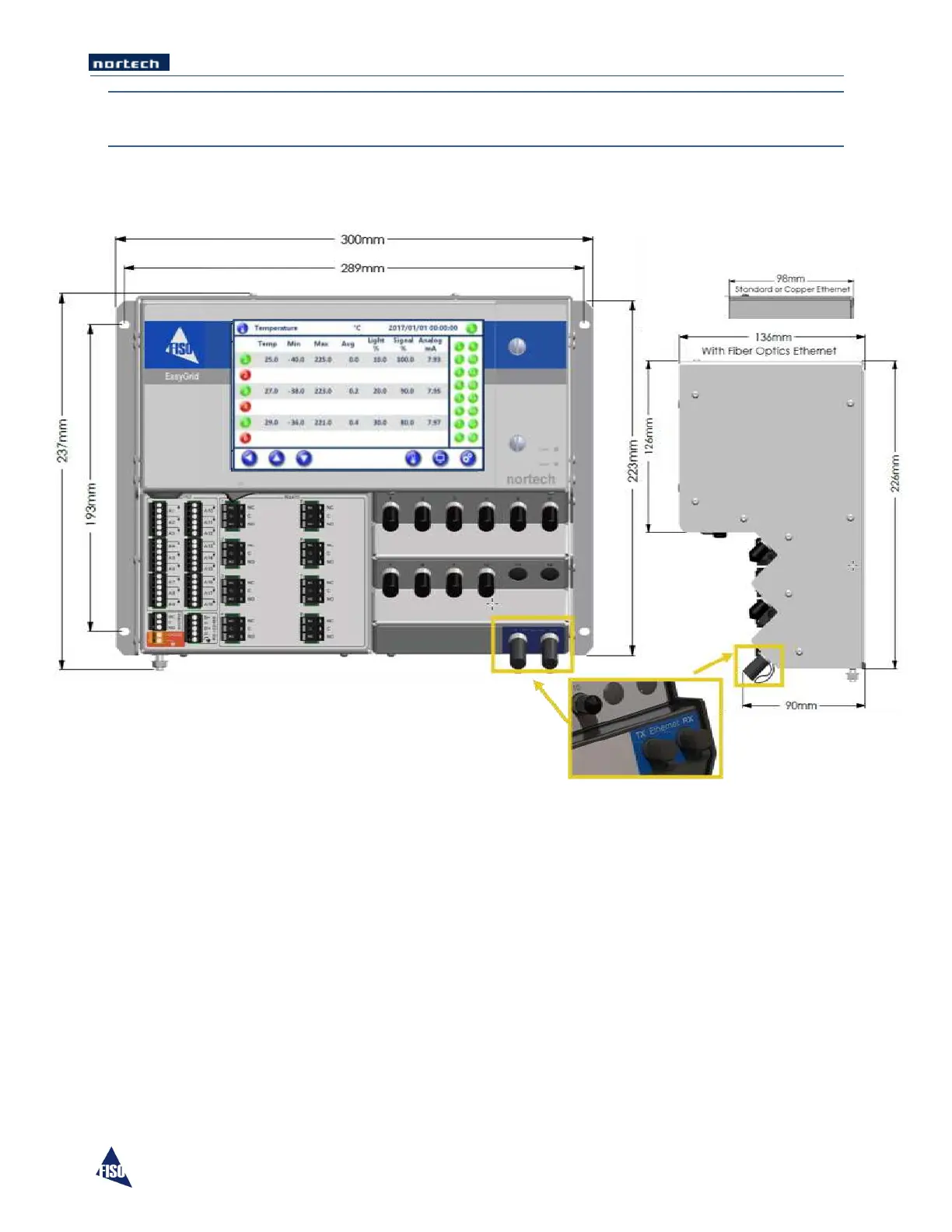

All EasyGrid monitors ordered with the Fiber Optics Ethernet communication will be of 136mm in depth
for the top portion of the monitor, as shown above. If the EasyGrid is ordered with Standard (No
Ethernet) communication option or the Copper Ethernet option, the depth of the top portion of the
monitor will be of 98mm.
When the Fiber Optic Ethernet communication option is selected, the ST/PC type, TX & RX optical
connectors will be located in the bottom right corner of the front connector panel.
