7.6 Diagnostic

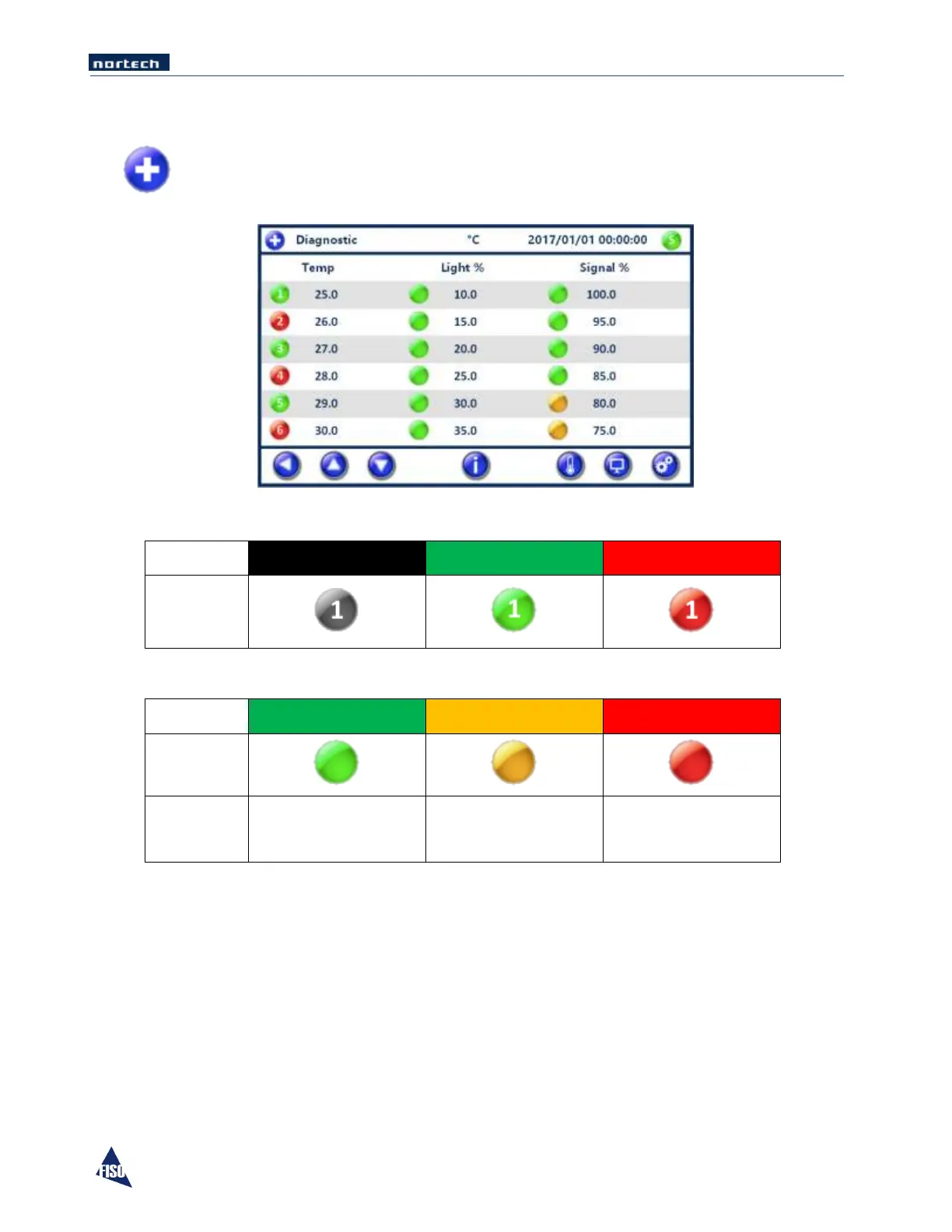

This page displays the FISO system diagnostic values for each channel. It is important to
check the Light and Signal levels during the installation of the system.
Information provided
 Left column icons provide Sensor Channel Number, Channel Mode and Channel State
Channel 1
Not Enabled
Enabled & Normal
Enabled & in Failure
Channel
mode &
state
 Under Temp appears the live measured temperature value
 Under Light %, the icons provide Light diagnostic state
Light %
Excellent
Good
Fail
Light %
state
Light %
range
< 40
< = 80
> 80
 Under Light %, the Light % value provides the level at which the system eluminates the channel
o The “Light %” is related to the required power applied to the light source to generate an
accurate temperature measurement from a sensor. A high value of light % could
indicate one of the following problems:
 Contaminated or Dirty connection
 Over bent cable along the sensor cable routing
 Broken Sensor or Extension Cable
 Damaged Sensor Tip
