5.5 TFT Display
The EasyGrid offers a large 17.8 cm (7”) color touch screen. From any screen, you can use the bottom
navigation bar to access: Any Temperature Display Screens, the Monitoring Menu or the Settings Menu.

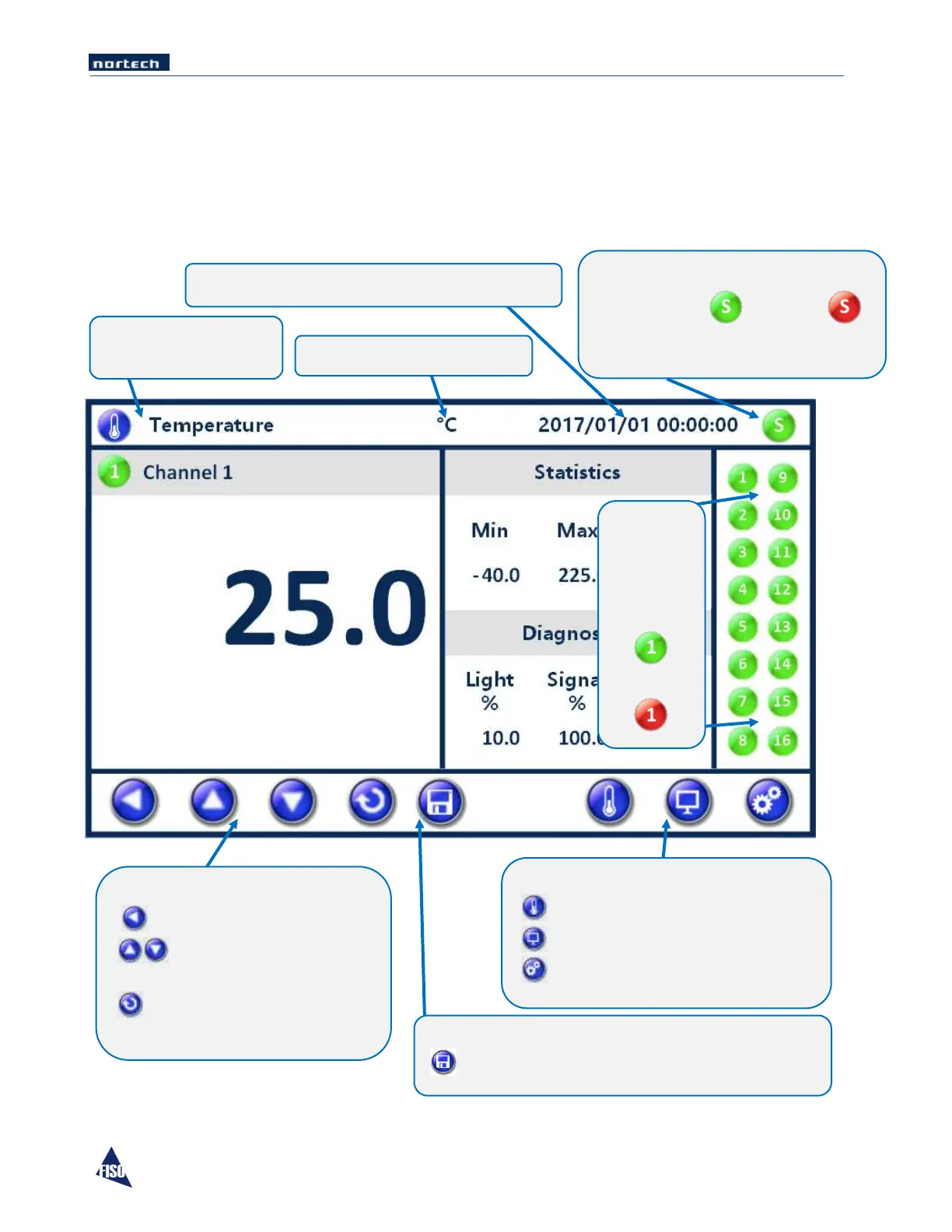

Top and bottom rows of the TFT display:
System Relay
Not Triggered Triggered
Icon and name of the
active screen
Selected temperature unit
YYYY/MM/DD HH:MM:SS = Date and Time
Control Buttons
Back to the previous page
Scroll Up or Down to the
next displayed screen
Enable/Disable Automatic
Scrolling mode
Main Menus Buttons
Go to Temperature Display Screen
Go to Monitoring Menu
Go to Settings Menu
Save Button (In Settings Menus)
Press to save a created or modified parameter
Alarm
Relays
State
Not
Triggered
Triggered
