EasyGrid User Guide MAN-00084 R 11.0
12

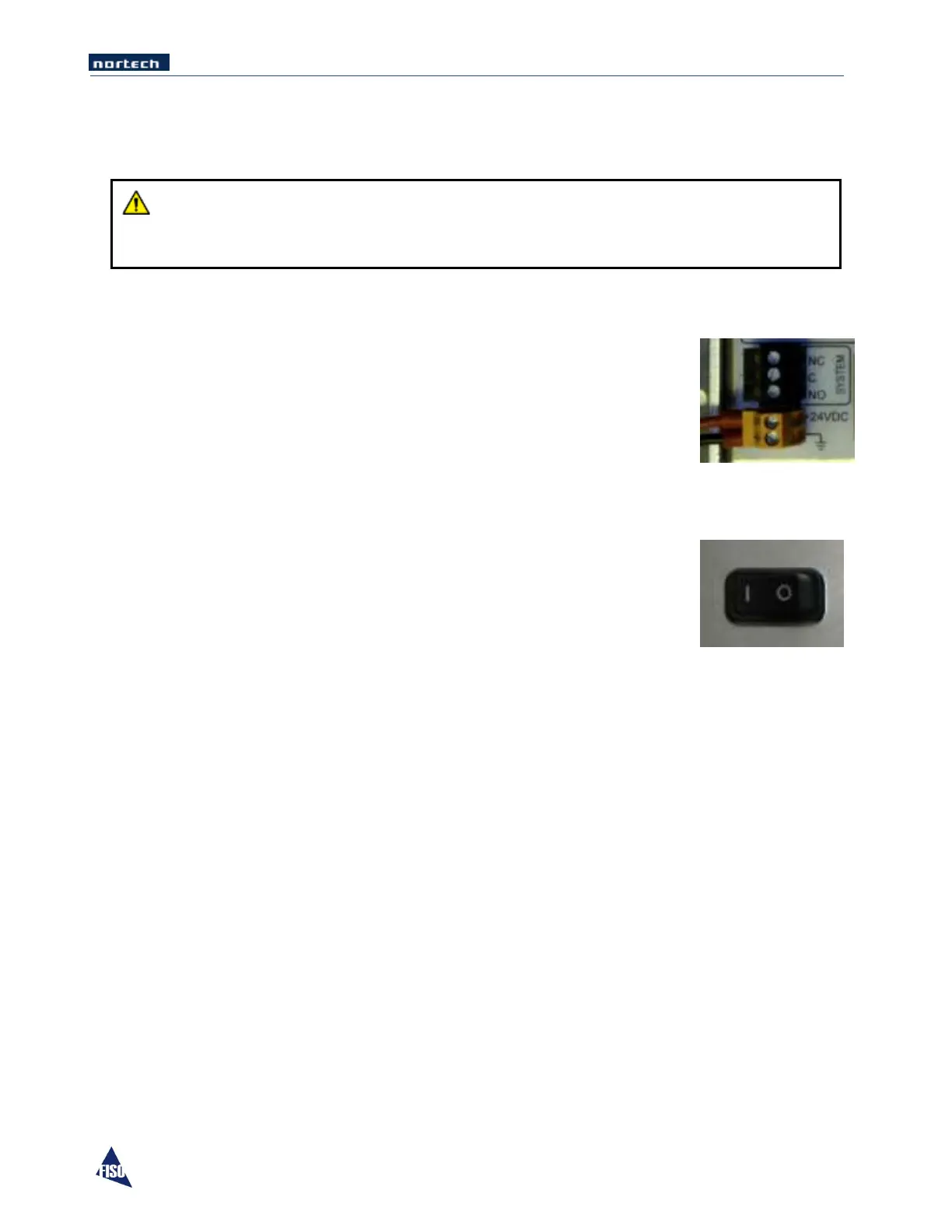

5.9 Power Input
The EasyGrid accepts only 24 volts DC (± 10%), 40W.
WARNING
To avoid damage to the unit, make sure that the power fed into the input complies with technical
specifications. No other voltage level or range is accepted.
Connect the unit to the power supply using terminal block connectors 24VDC and ground.
Please refer to your power-supply operation manual for important notices and
installation information.
5.10 Power Switch
The power ON/OFF switch is located above the relay terminal blocks
Once all wires are connected, press I on the switch to power ON the unit. To
power OFF, press the O on the switch.
