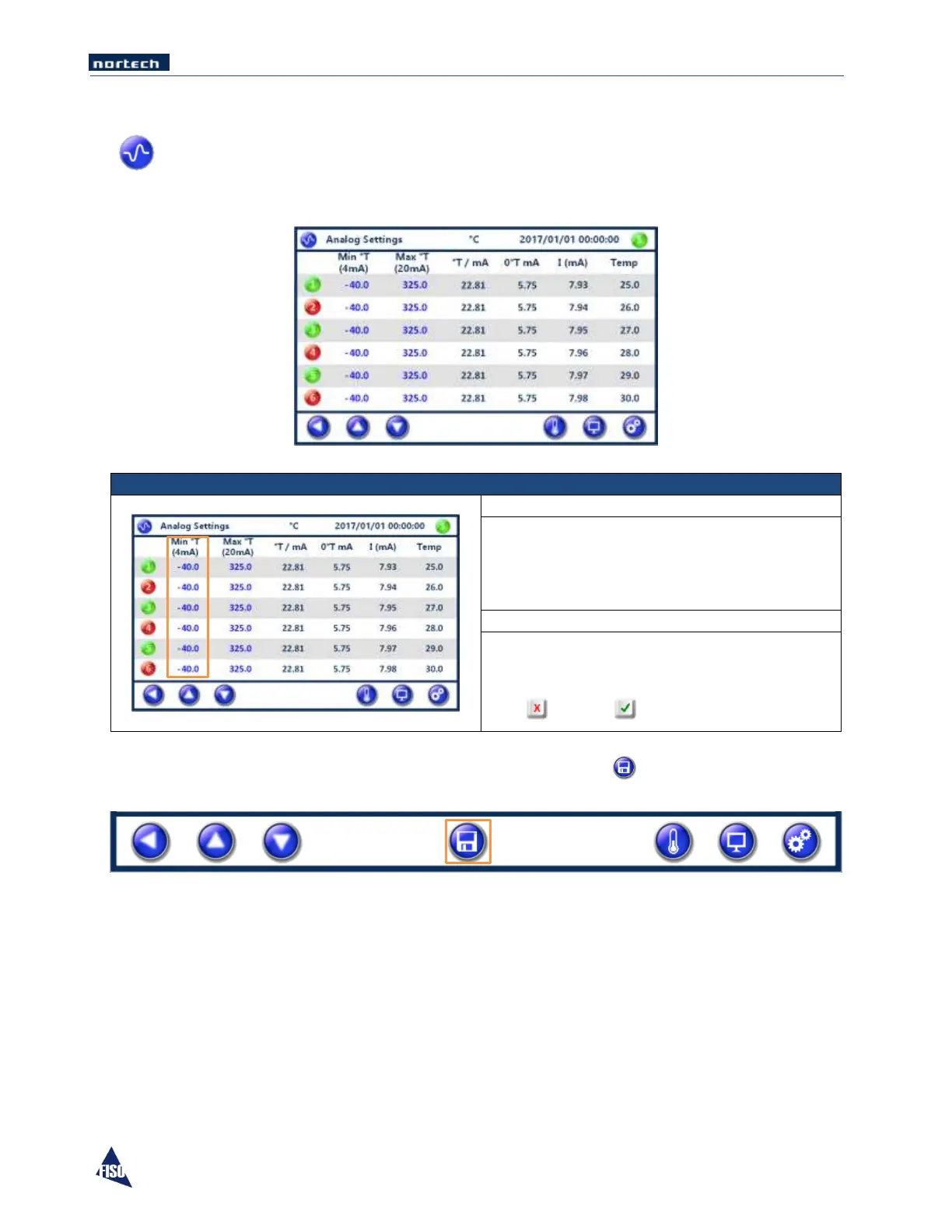

6.4 Analog Output Settings
This screen allows you to customize the analog output scale; use the bottom row buttons to
scroll through all the Channels. For each channel, there is six parameters. Two of them can be
configured (in light blue color) and four of them are either measured or calculated results.
Temperature value desired to correspond to
4mA on the output terminal can be defined by
pressing on the corresponding digit. Type in a
value using the Numeric key pad.
Any negative or positive value, as long as the
resulting displayed temperature value is within
the calibration range.
Press to exit or to confirm.
NOTE: After a parameter is created or modified, remember to press the button when prompted,
before leaving the active screen so that the parameter is stored or the action executed.
