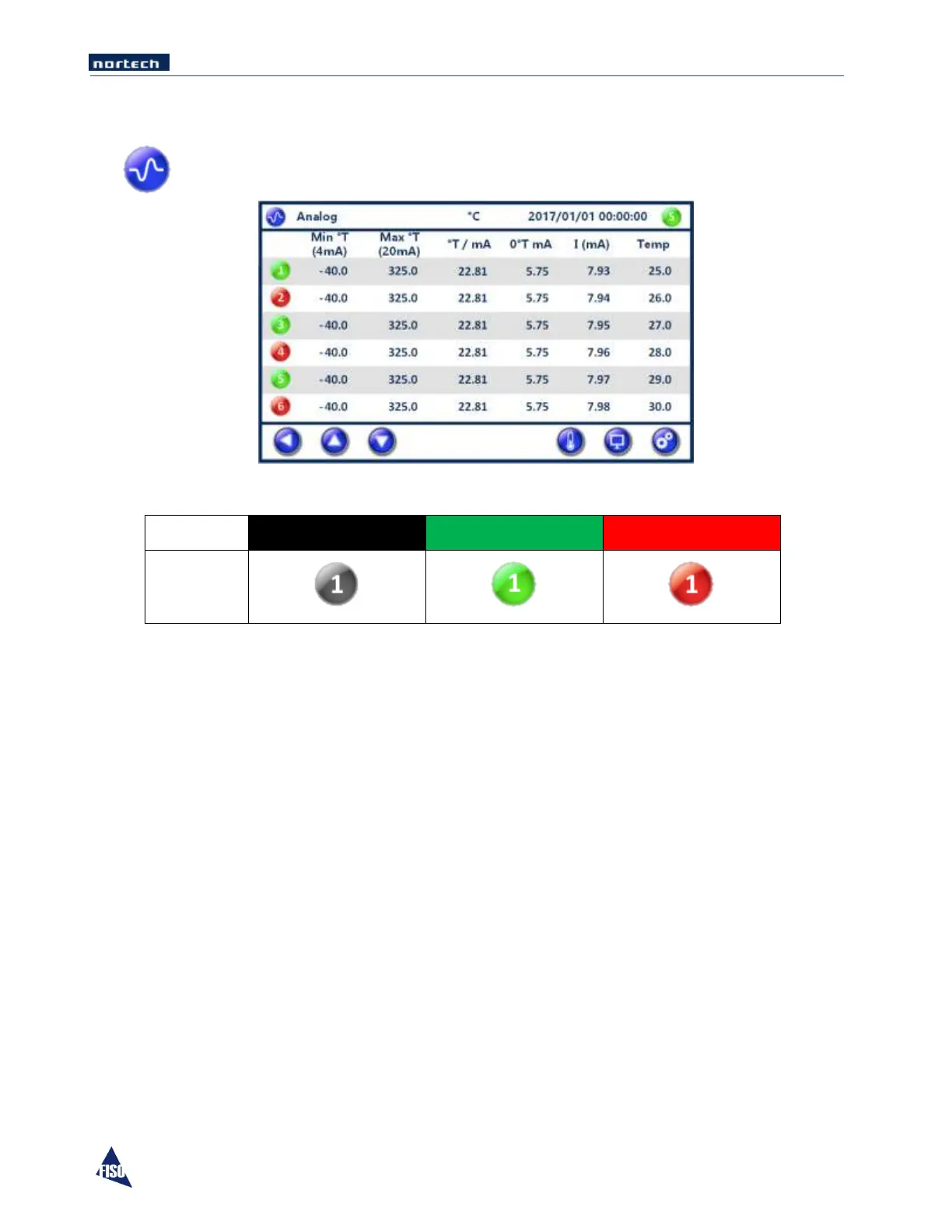

7.4 Analog
This page displays the Analog output parameters, it provides detailed information on the
user-defined values as well as all the resulting values:
Information provided
 Left column icons provide Sensor Channel Number, Channel Mode and Channel State
Channel 1
Not Enabled
Enabled & Normal
Enabled & In Failure
Channel
mode &
state
 Under Min °T (4mA) appears the user-defined temperature value to which the minimum range
of the analog output (4mA) corresponds. -40 °C is the minimum definable value.
 Under Max °T (20mA) appears the user-defined temperature value to which the maximum
range of the analog output (20mA) corresponds. 225 °C is the maximum definable value.
 Under °T/mA appears the resulting number of degrees of temperature which corresponds to 1
mA, based on the user-defined minimum and maximum temperature values.
 Under 0°T mA appears the resulting mA value corresponding to 0° of temperature, based on the
user-defined minimum and maximum temperature values.
 Under I (mA) appears the value in mA corresponding to the live measured temperature. This mA
value will be the one generated on the corresponding analog output terminal of the monitor.
 Under Temp appears the live measured temperature value.
