5.17 Ethernet Port (Optional)
When the EasyGrid is ordered with an Ethernet
communication protocol (IEC61850, Modbus TCP/IP,
DNP 3.0 or IEC60870-5-104) to be used over a copper
network, the bottom plate will be fitted with an
Ethernet port (RJ-45) above the analog output terminal
block. The port is dedicated to the selected
communication protocol.

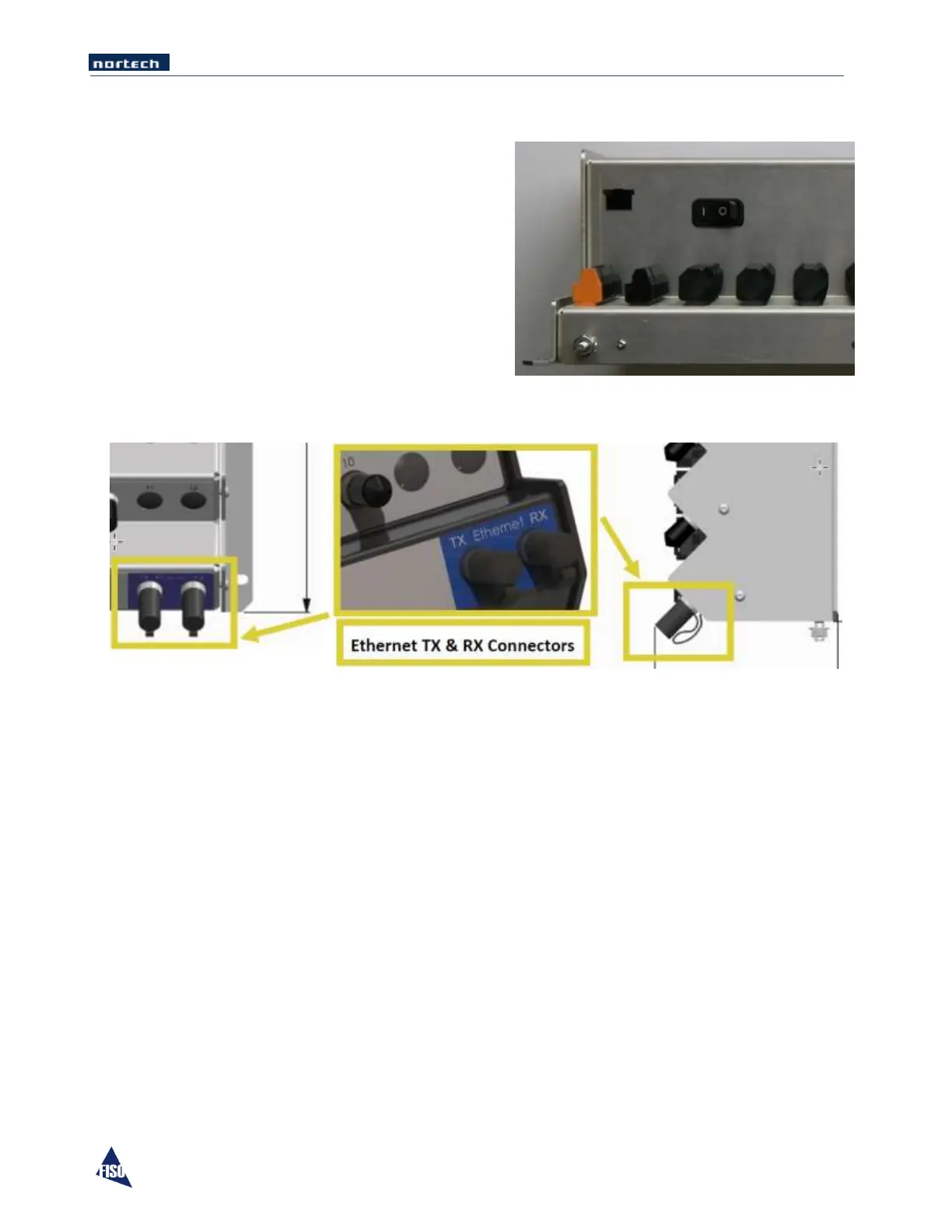

When Ethernet is to be used over a fiber optic network,
then the TX & RX optical connectors will be located in
the bottom right corner of the front connector panel.
Ethernet Specification
 Over Copper:
o Standard : IEEE 802.3
o Physical Layer : 10/100Base-T
o Data Rate 10/100 Mbps (auto-sensing)
o Mode : Half-duplex and full-duplex support (auto-sensing)
o Connector : RJ-45
 Over Fiber
o 100BASE-FX
o Fiber : MM 50µm or 62.5µm
o Connector : ST/PC
o Distance : 2km
o Wavelength :1310nm
For more information, refer to document MAN-00099 Nortech Communication Configuration User
Guide.
