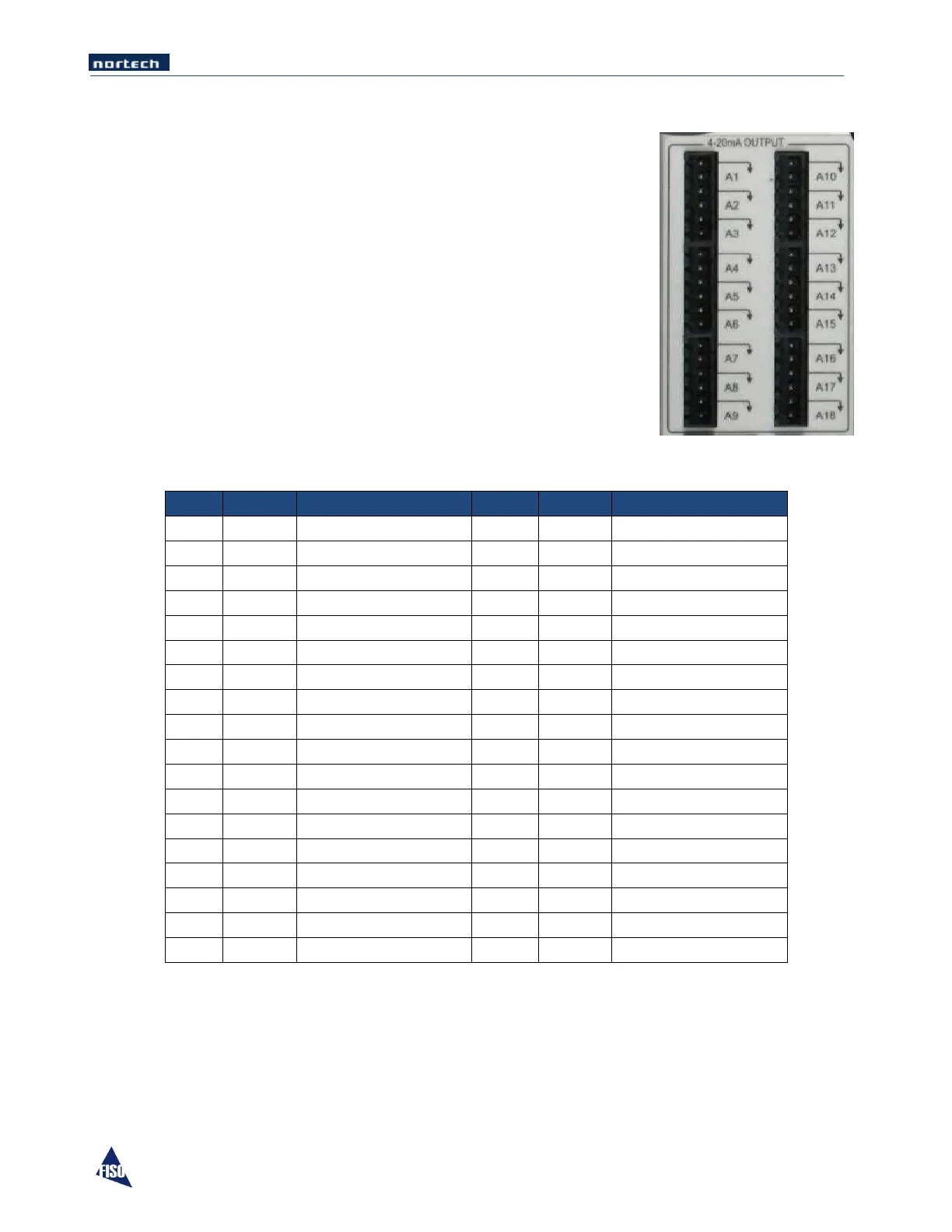

5.11 Analog Output
Each analog output offers a standard 4-20 mA factory configuration.
Analog outputs provide a means of transmitting temperature data directly
from the unit to an external data-gathering system or monitoring
equipment. The EasyGrid provides one output for each temperature channel
present in the unit.
Wire length and gauge are related when connecting analog outputs. For a
run of 100 m or less, recommended gage is 24 AWG or greater. The longer
the run, the smaller the recommended gage will be. Recommendations call
for shielded wire, or for installation in a metal conduit.
Label
Channel
Description
Label
Channel
Description
GND1
1
Analog Output Ground
GND10
10
Analog Output Ground
A1
1
Analog Output
A10
10
Analog Output
GND2
2
Analog Output Ground
GND11
11
Analog Output Ground
A2
2
Analog Output
A11
11
Analog Output
GND3
3
Analog Output Ground
GND12
12
Analog Output Ground
A3
3
Analog Output
A12
12
Analog Output
GND4
4
Analog Output Ground
GND13
13
Analog Output Ground
A4
4
Analog Output
A13
13
Analog Output
GND5
5
Analog Output Ground
GND14
14
Analog Output Ground
A5
5
Analog Output
A14
14
Analog Output
GND6
6
Analog Output Ground
GND15
15
Analog Output Ground
A6
6
Analog Output
A15
15
Analog Output
GND7
7
Analog Output Ground
GND16
16
Analog Output Ground
A7
7
Analog Output
A16
16
Analog Output
GND8
8
Analog Output Ground
GND17
17
Analog Output Ground
A8
8
Analog Output
A17
17
Analog Output
GND9
9
Analog Output Ground
GND18
18
Analog Output Ground
A9
9
Analog Output
A18
18
Analog Output
