EasyGrid User Guide MAN-00084 R 11.0
5
1. Make sure that the power switch is OFF when connecting the power supply to the unit.
2. Wire the power input terminal block to a power supply providing the required voltage and
respect connector polarity.
3. Power up the unit using the ON/OFF switch located on the panel above the relay terminal block.
4.2.2 Connecting Temperature Sensors
The EasyGrid is compatible with all FISO TPT-62 sensors. No calibration factor or calibration procedure is
required to get accurate temperature measurements.

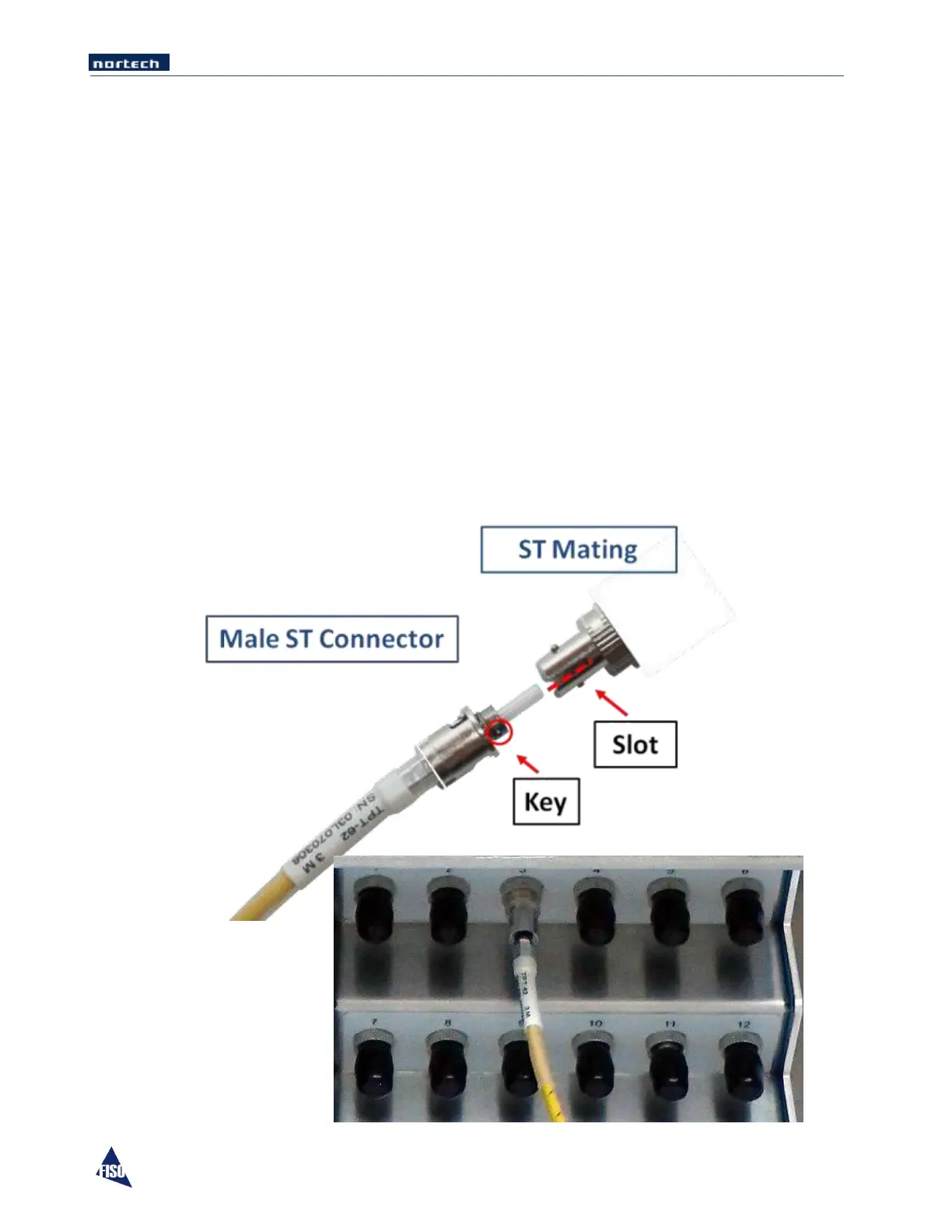

1. Remove the protective cap from the Male ST Connector and ST Mating
2. Using the One Click tool clean the Male ST connector and the ST Mating
3. Align the male connector alignment key with the mating slot.
4. Insert ceramic ferrule of the Male ST connector in the ST Mating
5. After making sure it is properly inserted, Push and Twist to lock the spring loaded ring to the ST
Mating
