7.2 Alarm

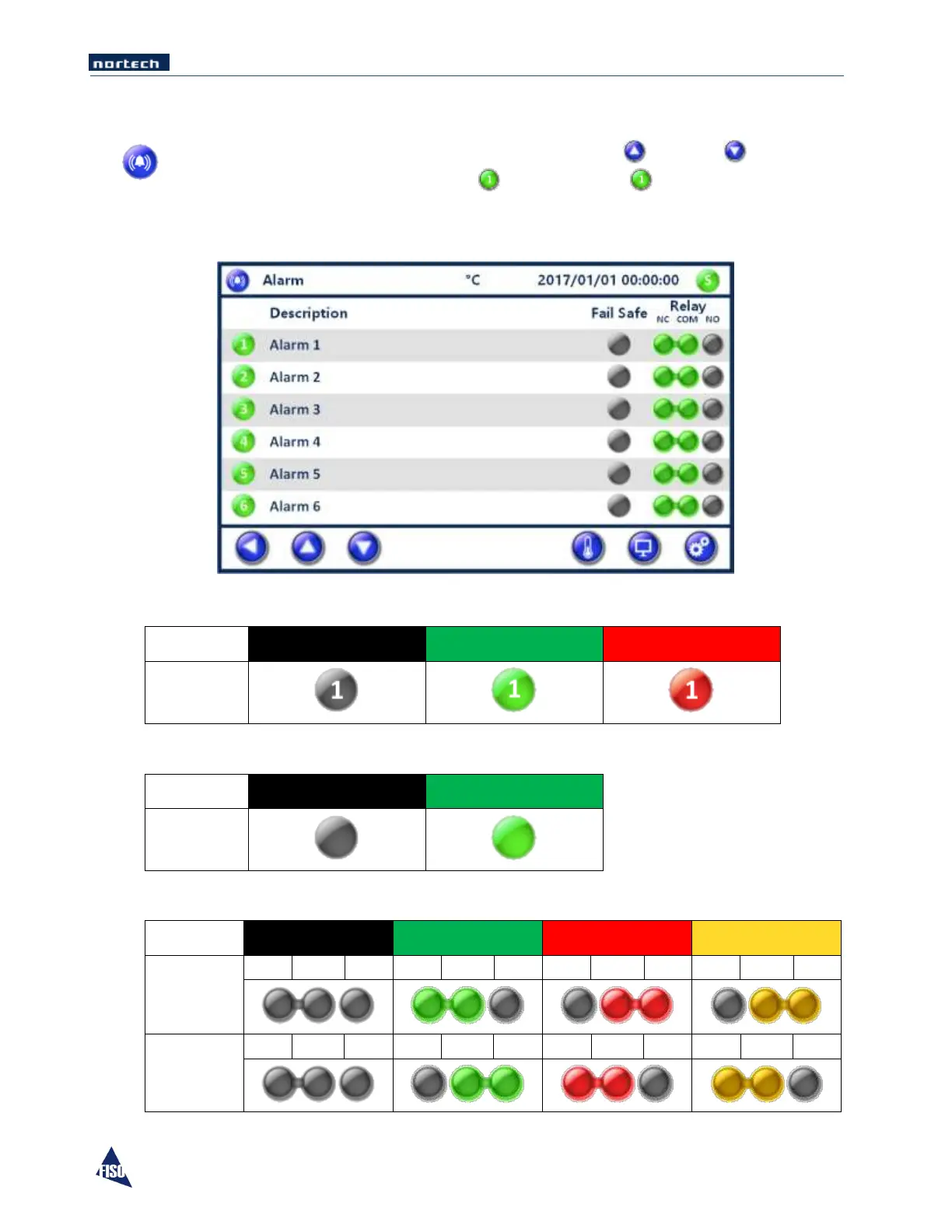

This page displays the current status of each relay: Use the up and down control
buttons to scroll to other alarm numbers , Operation status , Condition met or not,
Description, Fail Safe status and a graphic representation of the physical position of the
relay.
Information provided
 Left column icons provide Relay Number, Relay Mode and Relay State
Alarm 1
Not Enabled
Enabled & Normal
Enabled & Triggered
Relay mode
& state
 Under Description appears the user-defined name of the Alarm.
 Fail safe Icons provide the mode of operation.
Fail Safe
Not Enabled
Enabled
Mode state
 Under Relay the icons show the physical position of the relay, to allow for easy understanding of
the relay status.
Mode
Power Off
Normal
Triggered
Exerciser
Normal
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
Fail Safe
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
