EasyGrid User Guide MAN-00084 R 11.0
55

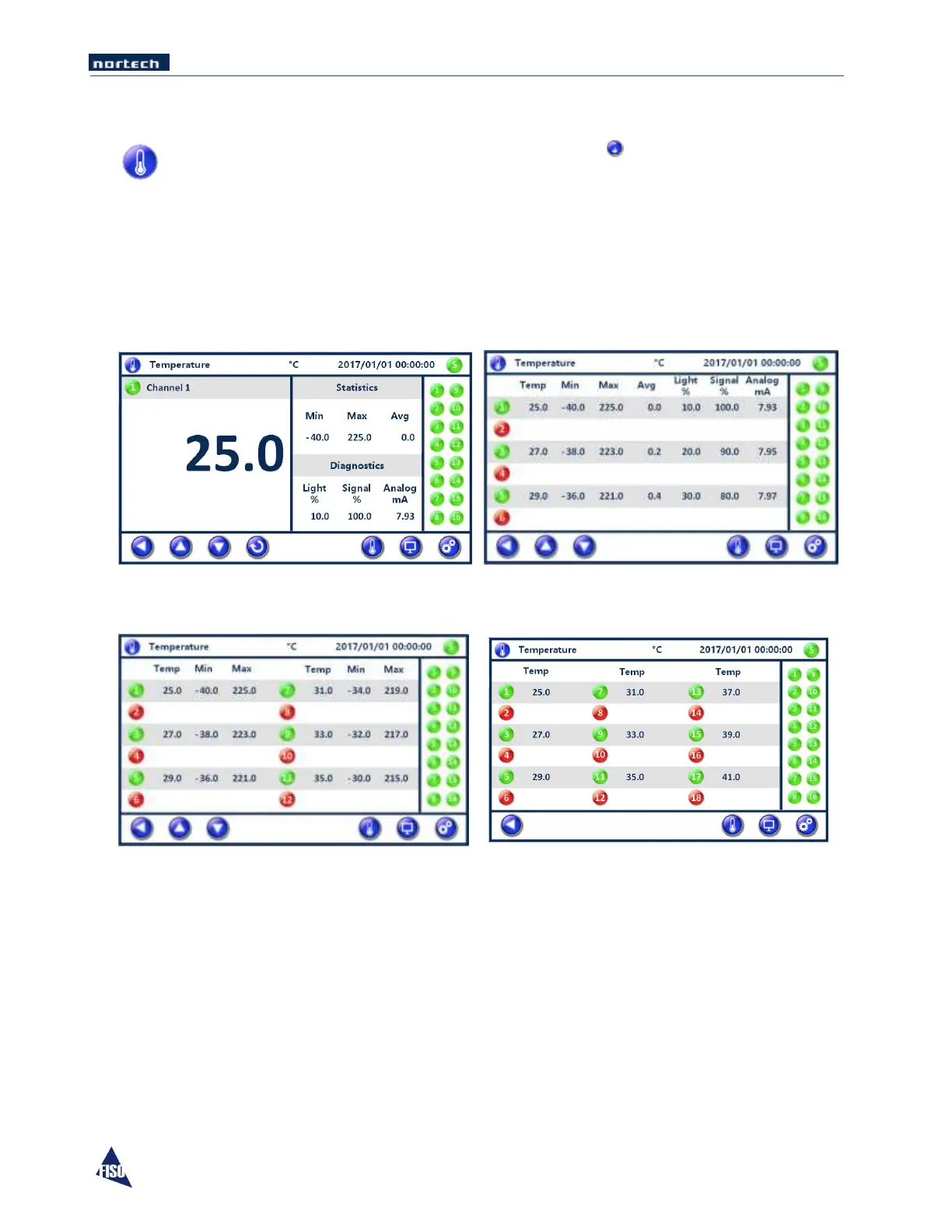

7.1 Temperature Values & Alarm State
To view the measured temperature values screen press the button from the Monitoring
Screen or from the bottom row of the screen; use the bottom row buttons to scroll through
all the Channels. There is 4 different Temperature display screen options, the main
difference from screen to screen is the number of channels that are displayed per screen
and the amount of related parameters shown.
In each page the status of the Alarms, each linked to their respective Relay, is displayed on the right hand
side, if the 8 or 16 relay controller option has been selected at procurement time.
1 Channel display with 16 relays
6 Channel display with 16 relays
12 Channel display with 16 relays
18 Channel display with 16 relays
To Next Page
