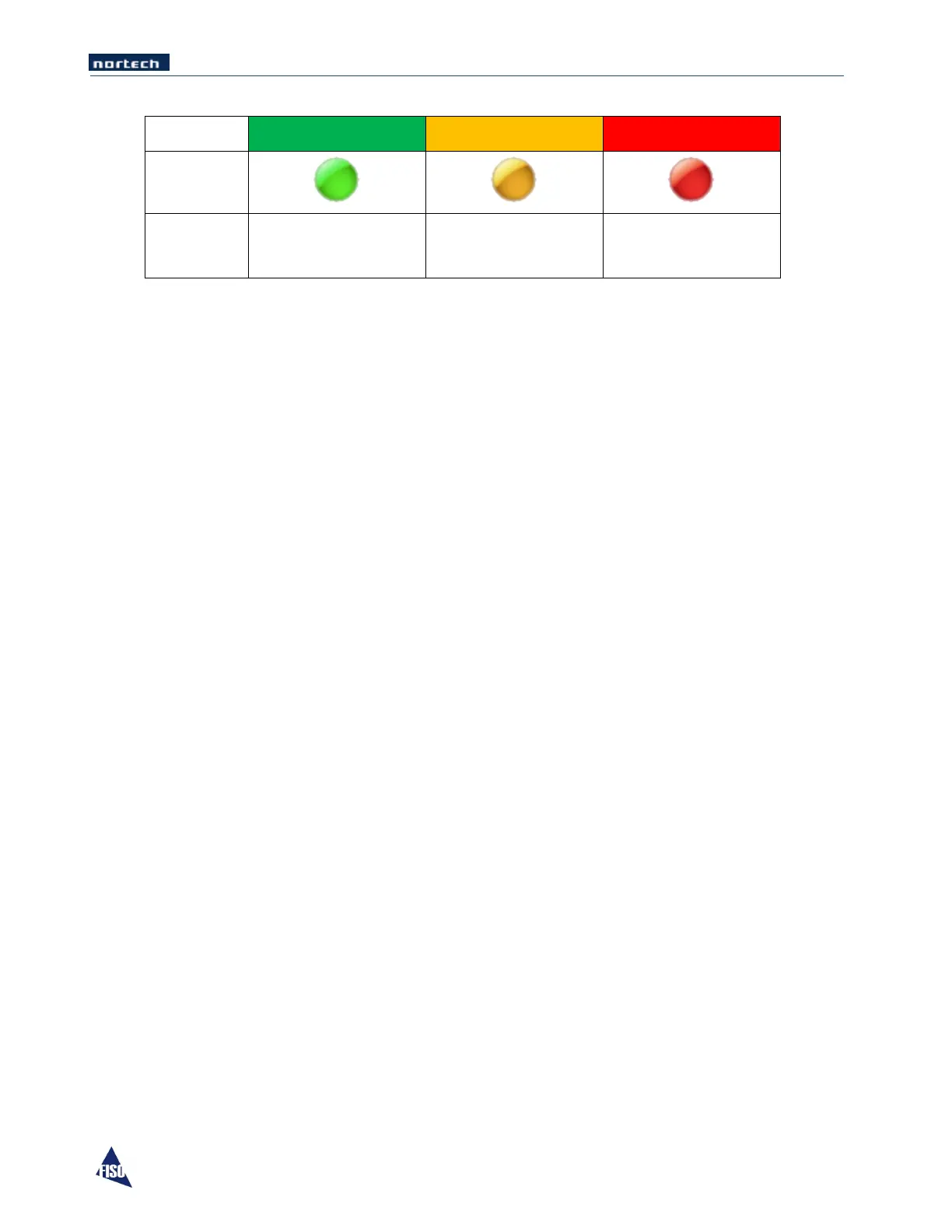

 Under Signal %, the icons provide Signal diagnostic state
Signal %
Excellent
Good
Fail
Signal %
state
Signal %
range
> 80
= > 40
< 40
 Under Signal %, the Signal % value provides the level of quality of the processed light
o The “Signal %” is related to the quality of the signal required to make an accurate
reading from a sensor. A low value of the signal % could indicate one of the following
problems:
 Contaminated or Dirty connection
 Over bent cable along the sensor cable routing
 Broken Sensor or Extension Cable
 Damaged Sensor Tip
