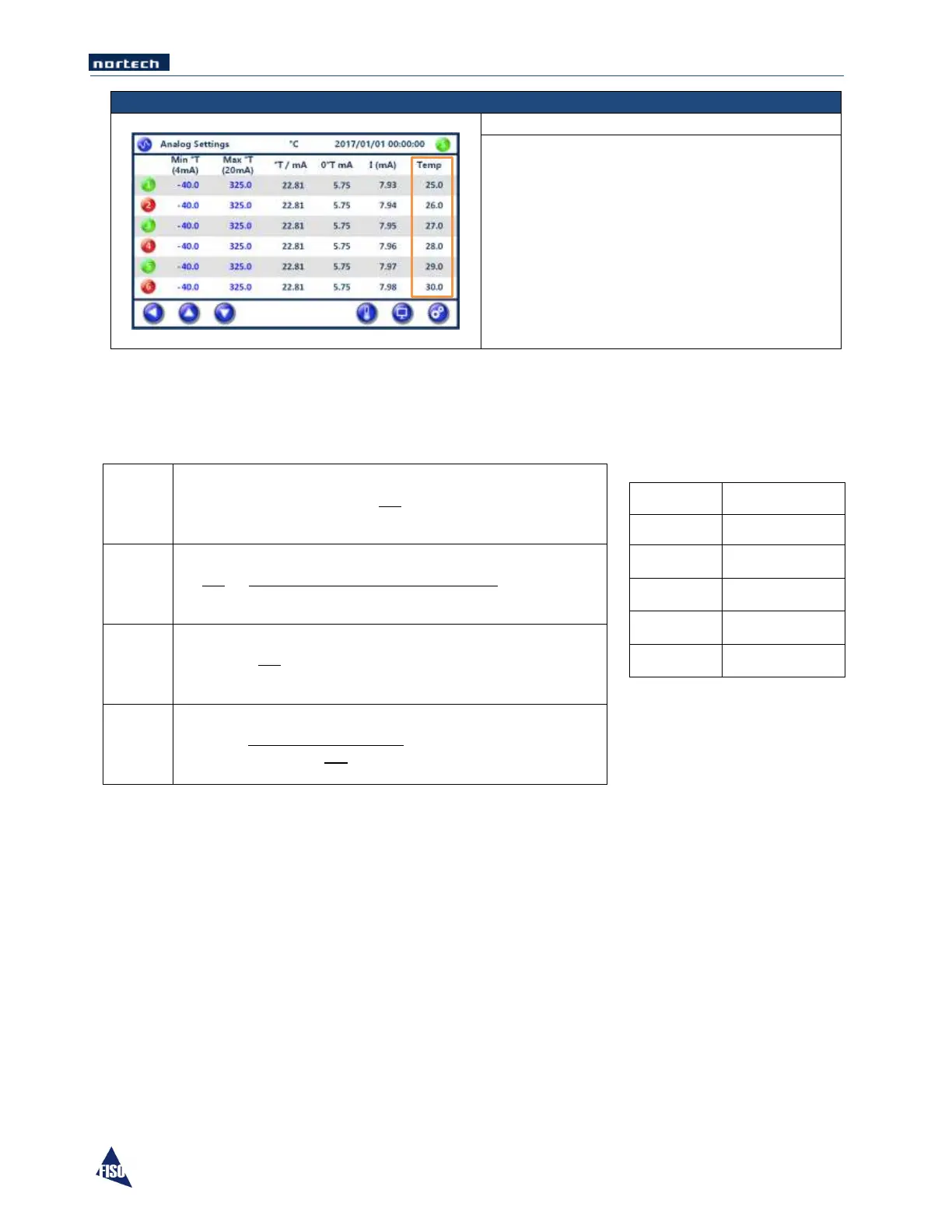

Measured Temperature value
Measured temperature value corresponding to
the current (I) measured on the output terminal.
Here are the formulas for the Analog Output.
The Analog Output is represented by a straight-line equation of this form:
All channels share the same original, factory-set, configuration: the scale factor is 16.56 °C/mA.
This setting results in the 0 °C offset to be at 6.42 mA, the minimum 4 mA scale limit to be at -40 °C and
the maximum 20 mA scale limit to be at 225 °C.
For example, if the loop reads 7.69 mA, the corresponding temperature for that channel is then 21.03 °C:
(7.69 mA – 6.42 mA) × 16.56 °C/mA = 21.03 °C.
