6 Installation
6.2 Transducers FLUXUS F501
2020-06-30, UMFLUXUS_F501V1-3EN
32
Mounting
When measuring in diagonal arrangement, the transducer mounting fixtures are mounted on opposite sides of the pipe,
see Fig. 6.8. When measuring in reflection arrangement, the transducer mounting fixtures are mounted on the same side
of the pipe, see Fig. 6.9.
When measuring in diagonal arrangement with 2 beams in displaced X arrangement, 4 transducer mounting fixtures have to
be mounted. When measuring in reflection arrangement and small transducer distance, only 1 transducer mounting fixture
has to be mounted, see Tab. 6.1.
In the following, the mounting of 2 transducer mounting fixtures in reflection arrangement is described (1 transducer
mounting fixture for each transducer).
Overview of the mounting steps
• step 1
dismounting of the transducer mounting fixture Variofix L
• step 2
fixing the clasps to the tension straps
• step 3
fixing the tension strap to the pipe
• step 4
fixing the rail to the pipe
• step 5
installation in the transducer mounting fixture Variofix L
Tab. 6.1: Approximate values for the mounting of both transducers in a Variofix L
transducer frequency
(3rd character of the technical type)
length of the rail [mm] transducer distance [mm]
F 368 < 94
G, H, K (****LI*) 368 < 94
G, H, K (except ****LI*) 348 < 89
M, P (Lamb wave transducers)
M, P (shear wave transducers)
234 < 84
< 100
Q 176 < 69

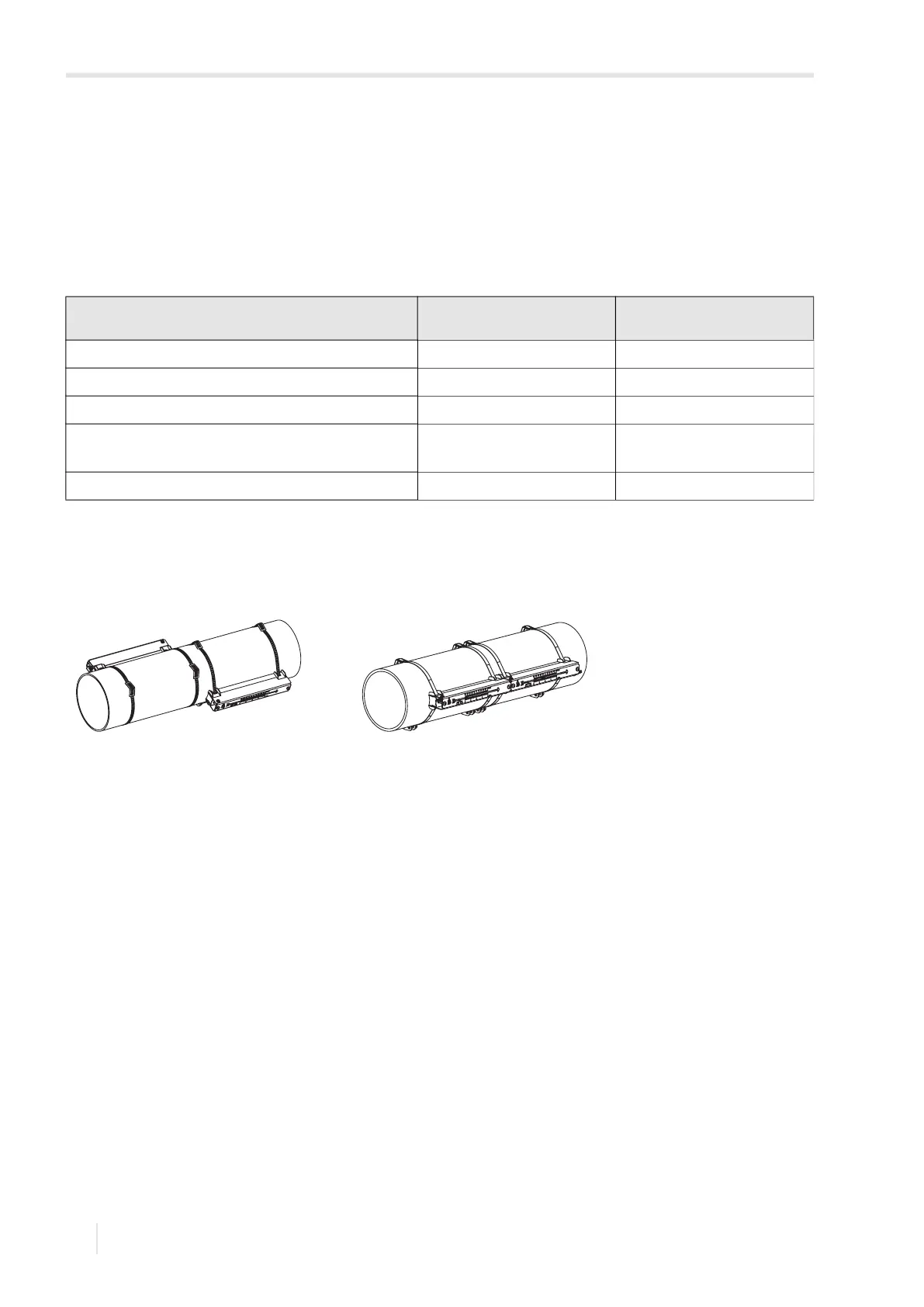

Fig. 6.8
: Transducer mounting fixture Variofix L
(diagonal arrangement)
Fig. 6.9:
Transducer mounting fixture Variofix L
(reflection arrangement)
