Step 1: Dismounting of the transducer mounting fixture Variofix L
• Disassemble the transducer mounting fixture Variofix L, see Fig. 6.10.
Step 2: Fixing the clasps to the tension straps
• Select the installation instructions according to the supplied clasp:
Band clamp clasp
The clasp is fixed to the tension strap, see Fig. 6.11.
Quick release clasp
The clasp is fixed to the tension strap, see Fig. 6.12.
• Cut the tension strap to length (pipe circumference + at least 120 mm).

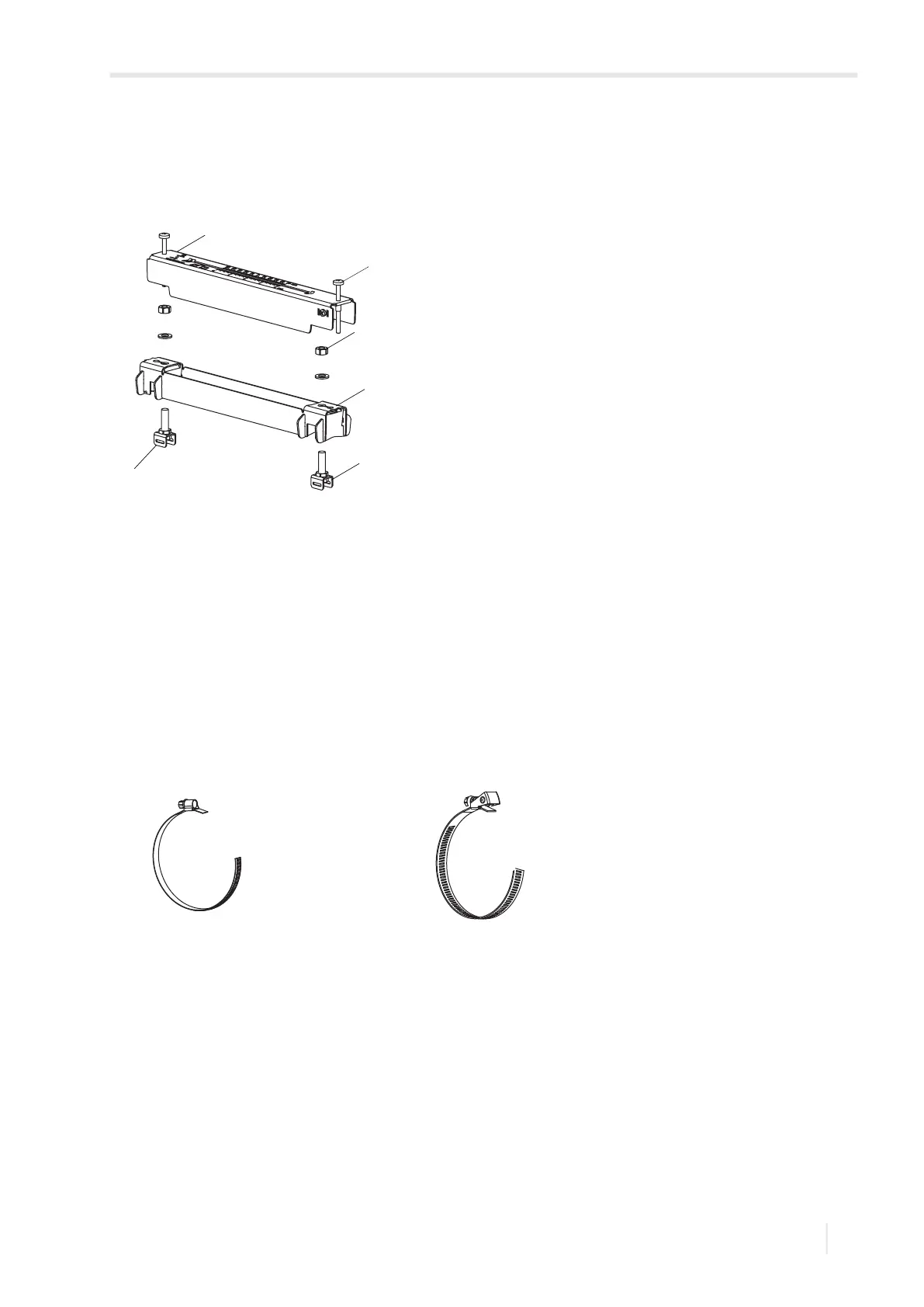

Fig. 6.10: Dismounting of the transducer mounting fixture Variofix L
1 – cover
2 – screw
3 – nut
4 – rail
5 – tension strap clamp
Fig. 6.11: Band clamp clasp with tension strap Fig. 6.12: Quick release clasp with tension strap
1
2
3
4
5
5
