6 Installation
6.2 Transducers FLUXUS F501
2020-06-30, UMFLUXUS_F501V1-3EN
36

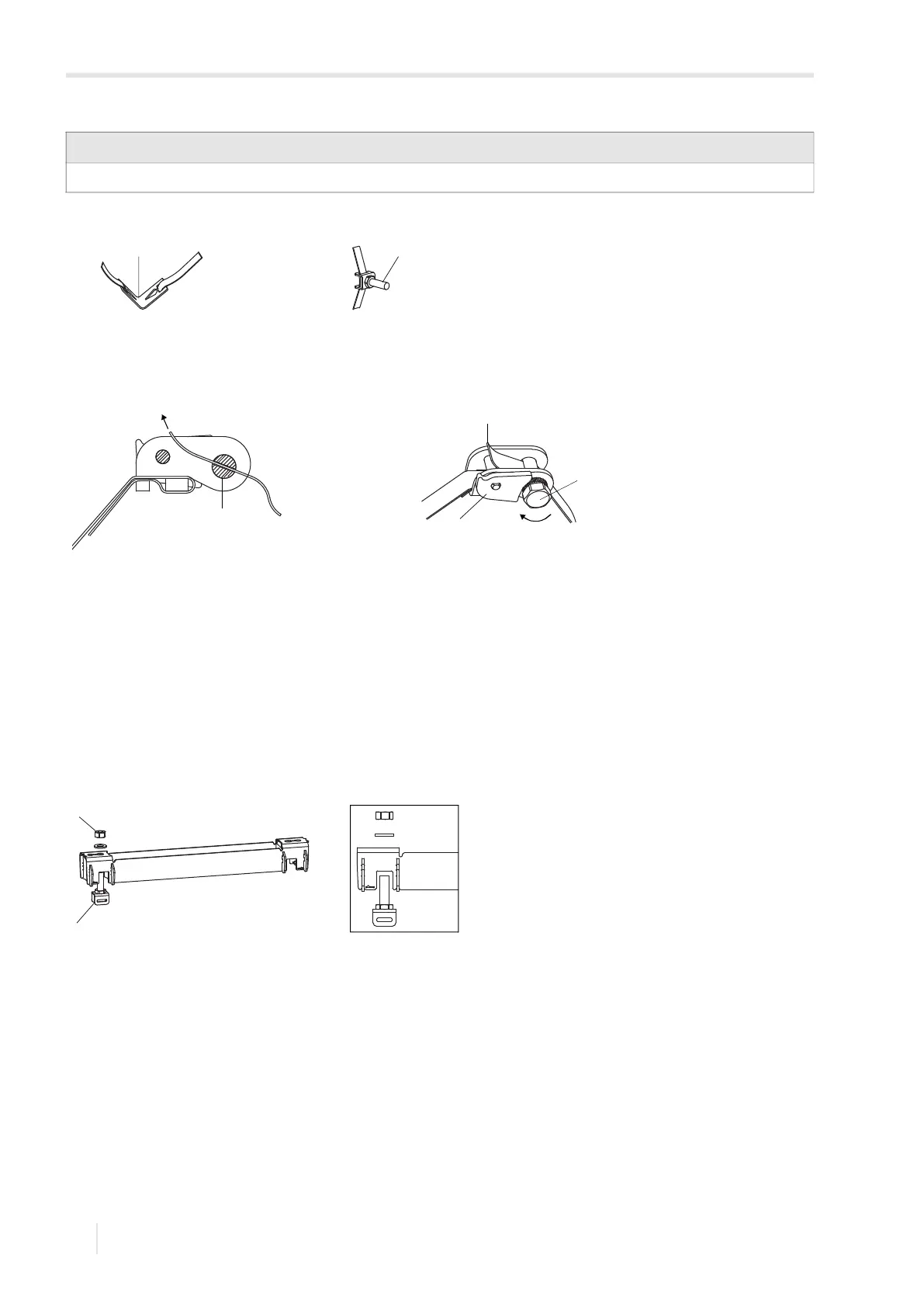

Step 4: Fixing the rail to the pipe
Place the tension strap clamp (2) in the rail, see Fig. 6.20. Observe the orientation of the tension strap clamp.
Tighten the nut of the tension strap clamp (2) slightly.
Screw the rail to tension strap clamp (1), see Fig. 6.21.
Tighten the nut of tension strap clamp (1), but not too firmly in order not to damage the tension strap.
Notice!
In order to release the screw and the tension strap, press the lever down, see Fig. 6.19.
Fig. 6.18: Tension strap with metal spring and clamp
1 metal spring
2 tension strap clamp
Fig. 6.19: Ratchet clasp with tension strap
1 sense of rotation
2 edge
3 lever
4 clasp screw with slot
Fig. 6.20: Rail with tension strap clamp
1 nut
2 tension strap clamp
1 2
1
2
4
3
4
1
2
